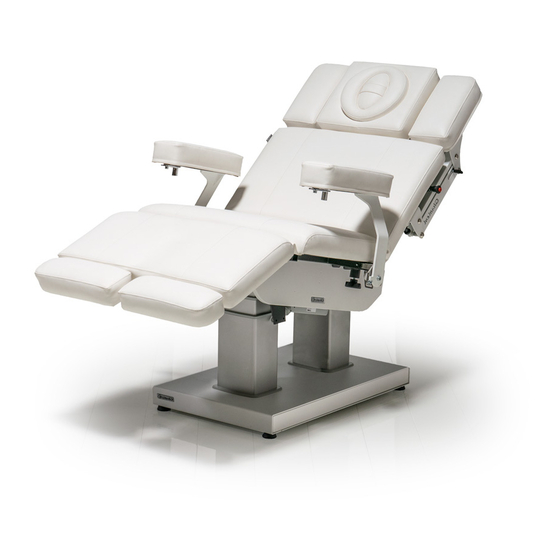

- Page 1 Manual Instruction Treatment Table 601 STANDARD Gharieni Group GmbH Gutenbergstraße 40 47443 Moers / Germany ➢ Phone: +49 (0)2841/88300-0 +49 (0)2841/88300-999 ➢ Fax: ➢ Sales department: +49 (0)2841/88300-300 ➢ E-mail: service@gharieni.com ➢ Web: www.gharieni.com...
- Page 2 This is the best to ensure safe usage of the 601, and that improper use is avoided. Lack of knowledge on how to properly use the 601 could result in problems for the customer and breakage of the 601.
-
Page 3: Table Of Contents
9. Upholstery ............................24 10. Operation ............................25 10.1 Characteristics ........................... 25 10.2 Model versions .......................... 26 10.2.1 601 / upholstery widths: Small, MediumSmall, Medium ..........27 10.3 Before first use .......................... 27 10.4 View ............................28 10.5 Gas springs..........................30 10.6 Headrest ............................ - Page 4 10.10 Extendable footrests ....................... 39 10.11 Backrest ........................... 40 11. Electrical adjustments ........................40 11.1 Hand control ..........................40 11.2 Adjustment of the working height .................... 44 11.3 Adjustment of the backrest ....................... 44 11.4 Adjustment of the inclination of the seat area ................. 45 11.5 Adjustment of the legrest ......................
- Page 5 23. EC-Declaration of Conformity ......................80 24. Status of Edition ..........................81 Do not dispose of the 601 together with your household waste. The treatment table must only be disposed of via a collection point for reusable electrical and electronic equipment. Do not remove the...
-
Page 6: Important Safety Information
Copies of this instruction manual are available upon request. ➢ Gharieni Group GmbH is not responsible for any damage caused directly or indirectly to people, animals, or property due to non-observance or non- compliance with the instructions contained in this manual. -
Page 7: Signal Words
Gharieni Group GmbH is excluded. 5. Do not connect the 601 to the power supply if the 601 itself or the power cable or the power plug are visibly damaged. 6. The power cable must not be under the 601 except Gharieni Group GmbH expressly allows it. - Page 8 9. Never try to repair the 601 yourself. If the 601 does not operate properly, please contact our customer service or your dealer. Original spare parts should be used only. 10. If repair or replacement of the power supply cable and / or the...
- Page 9 Do not use any accessories / devices that are not recommended by Gharieni Group GmbH. 18. Never operate the 601 if the power cable or plug is damaged, if the 601 is not working properly if it has been damaged or if it has become wet.
- Page 10 If the 601 is standing solely on the movable castors, there is a RISK OF ROLLING AWAY! 34. Do not move the 601 on its castors while there are people or loads on the 601. Otherwise you will damage the construction / substructure of the 601 and its castors.
-
Page 11: Intended Use
❖ The 601 is a treatment table and no medical device. ❖ The 601 is a multi-functional treatment table which e.g. can be used for cosmetic applications, facial treatments, or all types of massages in dry environments. -
Page 12: Scope Of Delivery
4. Preliminary remarks ❖ The Gharieni treatment table 601 is subject to the highest safety and quality standards. ❖ Before first use, please check that all components are present and that they are not visibly damaged. -
Page 13: Delivery And Unpacking
DELIVERY BY A SHIPPING COMPANY If a shipping company handles the delivery, usually the 601 will only be delivered (no help with the installation of the 601). In this case, you must dispose of the packaging material and the pallet on your own. -
Page 14: Unpacking
The legrest is in the lowest position. The armrests are swiveled 180° and pushed completely towards the seat. The extendable footrests are in the box under the head end of the 601, on the pallet. The optionally available metal sheet as a privacy screen for treatments in the prone position is also in the box, the corresponding rail must be attached to the underside of the headrest using the screws provided. -
Page 15: Assembly And Transport
(D). 3. Dispose of the cardboard box properly. 4. You can now lift the 601 off the pallet (it is imperative that you follow the instructions in chapter 6.2 TRANSPORT). 6. Assembly and transport 6.1 Assembly... -
Page 16: Transport
Such unsuitable ambient conditions are, e.g., narrow doors, narrow corners behind doors, narrow corridors, narrow stairways, spiral staircases etc. Weight of the 601 is at least approx. 120 kg; the length ranges from 180 cm to 200 cm and width including upholstery; this limits maneuverability of the 601. - Page 17 RISK OF INJURY! RISK OF DAMAGE! Before moving the 601, roll up the power cable properly and store it so that it cannot be rolled over when moving the 601. Do not hold the castors in place until the 601 is in desired position and you have ensured that the power cable is not located under the 601 or under its stands or castors.
- Page 18 7. Carry the 601 by the base only. Otherwise you can irreparably damage the 601. 8. If the floor is not completely level, you must ensure the stability of the 601 by adjusting the four stands (B), (see figure).
-
Page 19: Space Requirements
ADJUSTABLE STANDS OF THE ❖ Use the adjustable stands to properly align the 601. The 601 must be in a stable and level position for proper operation. In order that the 601 does not wobble, the 4 stands must stand firmly on the floor. -
Page 20: Rating Plate
7. Rating plate The rating plate is located at the head end of the 601: on the wood panel underneath the backrest. 1. To gain access to the rating plate, you must place the backrest in an upright position (see figure below / button T2 of the hand control, see fig. in chapter 11.1... -
Page 21: Qr-Code
"Send". ❖ The QR-Code is located on the head side of the 601, next to the rating plate: on the wooden covering below the backrest. - Page 22 Figure shows form that opens in the Internet browser of the device after the QR code is scanned.
- Page 23 Figure shows form that opens in the Internet browser of the device after the QR code is scanned.
- Page 24 Figure similar: option window for adding a file. Appearance may vary depending on the device and operating system.
-
Page 25: Upholstery
9. Upholstery ❖ The 601 is available in two upholstery variants (standard and soft / see below). ❖ The upholstery of the 601 is made of polyurethane (PU), artificial leather or Ferrari Stamskin and is delivered in the colors white or chocolate as standard. -
Page 26: Operation
601. RISK OF TIPPING! RISK OF BREAKING! RISK OF INJURY! 10.1 Characteristics ❖ The 601 is a versatile treatment table that you can use e.g. cosmetic applications or full body massages in dry rooms. ❖ The 601 is available in two upholstery variants (... -
Page 27: Model Versions
(see chapter 10.6 HEADREST ❖ In addition to the standard headrest, the 601 can be equipped with two other variants: the dual headrest with an exchangeable round or horn-shaped face support or the U-shaped headrest. -
Page 28: 601 / Upholstery Widths: Small, Mediumsmall, Medium
➢ The dedicated safety socket must be grounded properly and must meet the proper voltage. See technical data and rating plate. Before setting up, make sure there is enough space for the 601. The space required to walls and objects is approx. 70 cm all around. -
Page 29: View
10.4 View Illustration similar: color and design may vary depending on the model. RMRESTS ➢ pneumatically adjustable and swiveling ➢ see chapter 10.5 and chapter 10.7.1 GAS SPRINGS PNEUMATICALLY ADJUSTABLE ARM RESTS ➢ can also be locked (see chapter 10.7.2) - see # 12: additional locking mechanism of the armrests ➢... - Page 30 BACKREST ➢ electrically adjustable ➢ see chapter 10.11 and chapter 11.3 BACKREST ADJUSTMENT OF THE BACKREST SEAT ➢ thigh to knee area UPPORTS ➢ manually swiveling and extendable ➢ see chapter 10.8 ARM SUPPORTS ➢ optionally available ➢ Optionally available: holder for manicure bowl s.
-
Page 31: Gas Springs
ADDITIONAL LOCKING MECHANISM OF THE ARMRESTS ➢ see chapter 10.7.2 MOUNT FOR LED MAGNIFYING LAMP (on both sides of the bed, optional): ➢ for LED magnifying lamp “Circle” (optionally available) ➢ extendable ➢ can be stowed under the legrest when not in use ➢... -
Page 32: Headrest
(s. fig. 3). NOTICE! Be sure to tighten the knurled screw again. Otherwise the headrest may fall out and damage the 601 and/or your customer may be injured! RISK OF DAMAGE! RISK OF INJURY! - Page 34 ❖ The optionally available dual headrest also has a nose slit. ❖ The face of the person to be treated can also be supported by placing an optional face gel cushion (see fig. 5) available from Gharieni (see also chapter 17.9 GEL PAD FOR NOSE SLITS fig.
-
Page 35: Headrest Versions
10.6.1 Headrest versions Two additional headrests are optionally available for the 601, at an extra cost: o a dual headrest (s. fig. 7) ▪ this headrest has a round or a horn-shaped face support. ▪ The scope of delivery of the dual headrest includes an air cushion with a hand pump, which allows individual adjustment of the height of the respective face supports (s. -
Page 36: Installing The U-Shaped Headrest
INSTALLING THE HEADREST 1. Slide the tubes of the headrest (1) into the corresponding mountings (1 a) on the backrest of the 601, s. fig. below 2. Lock the headrest in place with the fastening screw (1 b). 3. Then attach the cushion (2) to the frame of the headrest (1). -
Page 37: Armrests
(see fig. 7 and fig. 8). ➢ The armrests are optionally available. 10.7.1 Pneumatically adjustable armrests ❖ The armrests of the 601 can be lowered or raised individually using a gas spring („ ” / see also chapter 10.5... -
Page 38: Additional Locking Mechanism Of The Armrests
NOTICE! Maximum load of the armrests is 25 kg. RISK OF DAMAGE! 10.7.2 Additional locking mechanism of the armrests ❖ The armrests of the 601 can also be locked using a locking knob on the side of the bed (see fig.). -
Page 39: Arm Supports
10.8 Arm supports ❖ The arm supports (see figure in chapter 10.4 ) are always parallel to the VIEW seat. ❖ For lateral access and for treatments in the massage position (prone position) they can also be swiveled down by 180°; see illustration. ❖... -
Page 40: Legrest
Always tighten the knurled screw. Otherwise the arm supports can fall out of the guide. If this instruction is not followed, the support structure of the 601 may be permanently damaged and injuries may occur. RISK OF TIPPING! BREACH DANGER! RISK OF INJURY! Illustration similar: color, upholstery and design may vary depending on the model. -
Page 41: Backrest
10.11 Backrest ❖ The backrest of the 601 is electrically adjustable (see chapter 11.3 ADJUSTMENT OF THE BACKREST 11. Electrical adjustments The electrical adjustments of the 601 are made using a hand control. Optionally, the settings can also be performed using a foot control with Bluetooth (s. - Page 42 BACKREST ➢ Button for adjustment of the INCLINATION OF THE SEAT AREA ➢ Button for adjustment of the LEGREST PROGRAM BUTTON ➢ P1 moves the 601 to the fixed entry position. PROGRAM BUTTON ➢ The entry position cannot be changed.
- Page 43 PROGRAM BUTTON ➢ P2 moves the 601 to the fixed PROGRAM BUTTON S-Curved-Position. ➢ The S-Curved-Position cannot be changed. PROGRAM BUTTON ➢ P3 moves the 601 to the fixed PROGRAM BUTTON pedicure position ➢ The pedicure position cannot be changed.
- Page 44 ➢ indicates the currently set heating level of the heating system. ➢ indicates a successful reset process. YMBOLS FOR THE DOUBLE TAP SYSTEM ❖ Adjustment of the working height, the backrest, the inclination of the seat area and of the legrest (buttons T 1 - T 4) is done using the double-tap system.
-
Page 45: Adjustment Of The Working Height
ENTRY HEIGHT This is indicated in the horizontal position of the seat. ➢ 601 (standard upholstery) = approx. 59 cm / seat in horizontal position ➢ 601 (soft upholstery) = approx. 64 cm / seat in horizontal position To recall the fixed entry position, press program button P1 on the hand control and keep it pressed until the entry position is reached. -
Page 46: Adjustment Of The Inclination Of The Seat Area
11.4 Adjustment of the inclination of the seat area ❖ The inclination of the seat area of the 601 can also be adjusted using the hand control. ❖ Use the corresponding button (T 3) to adjust the inclination of the seat area (s. - Page 47 2. The backlighting of the hand control will now dim slightly. 3. The drives are now unlocked. NOTICE! To prevent unauthorized use of the 601, always activate the locking function when leaving the treatment room. If you should forget to do this, the drives lock automatically after 30...
-
Page 48: Memory Functions Of The Hand Control
❖ The memory function saves the treatment positions you have selected, thus simplifying your workflows. Use buttons M1 and M2 (see fig. in chapter 11.1 HAND CONTROL ❖ Memory positions are stored in the same way as the electrical settings of the 601 using a double-tap system. 1 &... -
Page 49: Foot Control With Bluetooth (Optional Equipment)
The two individually adjustable and storable memory positions are also stored using the double-tap system. ➢ When purchasing a 601, the hand control is included as standard. Optionally, for an additional charge, the foot control can be purchased. NOTICE! Due to the surface material of the foot control, it may need to be cleaned with an alcohol-free cleaning agent on a soft cloth or paper towel. - Page 50 ➢ Button for adjustment of the WORKING HEIGHT ➢ Button for adjustment of the BACKREST ➢ Button for adjustment of the INCLINATION OF THE SEAT AREA ➢ Button for adjustment of the LEGREST MEMORY BUTTON M ➢ M1 is used to save and recall the first MEMORY BUTTON individually adjusted position.
- Page 51 PROGRAM BUTTON P entry position. ➢ The entry position cannot be changed. PROGRAM BUTTON P ➢ 2 moves the 601 to the fixed S-curved PROGRAM BUTTON P position. ➢ The S-curved position cannot be changed. BUTTON FOR THE HEATING SYSTEM ➢...
-
Page 52: Led Module
12.1 LED module When operating the optionally available heating system with the optionally available foot control with Bluetooth, the respectively set heating level is displayed with a LED module, see table and figure below. The LED module has three rows of LEDs. The LED module is located on the back of the treatment table, on the wooden paneling below the backrest. -
Page 53: Heating System (Optional Equipment)
13. Heating system (optional equipment) ❖ The upholstery surface of the 601 can be heated to increase comfort. It is a pre-programmed and fully automatic heating system which allows comfortable operation. This heating system is integrated in the upholstery of the treatment table and works with modern microprocessor technology. - Page 54 4. Disconnect the 601 from the mains if it is not used for a longer time, e.g. overnight. WARNING! People with acute pain, venous disorders, low blood...
-
Page 55: Operation
POWER OFF ❖ Using this button you also switch off the heating system. NOTICE! If your 601 is equipped with the optionally available heating system and the optionally available foot control with Bluetooth, the heating level currently set is displayed additionally with the LED module (s. - Page 56 There are three heat / power levels to choose from Visualization via Heating Heating level an LED (diode) output single impulse on the hand Push button Power on / control 30 % button once level 1 for 0.3 seconds, interval 1 second double impulse on the hand Push this...
-
Page 57: Reset
14. Reset You can reset the software of the bed to its initial state; e.g. for the complete reprogramming of treatment positions etc. PLEASE PROCEED AS FOLLOWS 1. Press buttons T 11 and T 12 of the hand control simultaneously and keep them pressed for approx. - Page 58 ODER . 16 . 17...
-
Page 59: Malfunctions (Causes And Troubleshooting)
15. Malfunctions (causes and troubleshooting) MALFUNCTION POSSIBLE CAUSE TROUBLESHOOTING ALL ACTUATORS DO NOT WORK 1. No power connection. 1. Check connection status. 2. Power cable defective. 2. Power cable needs to be replaced (please contact customer service). 3. Hand control / actuator plug not 3. -
Page 60: Repair
1. Please use the form that opens after scanning the QR-Code in the Internet browser of your suitable end device if you have problems with your 601 or if you should notice any damage. In this way you can send information to our customer service easily, simply, and quickly. -
Page 61: Cleaning And Care
/ support structure caused by use of unsuitable cleaning agents is not covered by the warranty! ❖ Before performing any cleaning or maintenance work on the 601, please remove all hand and arm jewellery (rings, bracelets etc.). Otherwise you could accidentally scratch and / or damage the upholstery and / or the material of the base. -
Page 62: Cleaning The Pu Upholstery
(also available from Gharieni: see chapter 18. UPHOLSTERY CARE AND CLEANING AGENTS NOTICE! The upholstery of the 601 can also be Ferrari Stamskin Top. This material can be cleaned with a cloth with some detergent, which must be suitable for this material. -
Page 63: Optional Equipment / Optional Accessories
(s. below) please contact our sales department. Our team is happy to help! 17.1 Headrests The 601 does not feature a headrest as standard. When purchasing the 601, please choose from one of the following three designs: 17.1.1 Standard headrest ❖... -
Page 64: U-Shaped Headrest
The scope of delivery of the dual headrest includes an air cushion including a hand pump, which allows individual adjustment of the height of the respective face cushion; s. figs. 17.1.3 U-shaped headrest The U-shaped headrest is mounted in the corresponding mounts on the backrest of the treatment bed. -
Page 65: Foot Control
FOOT CONTROL WITH BLUETOOTH OPTIONAL EQUIPMENT 17.3 Castors ❖ Castors are optionally available for the 601; for an additional charge. ❖ When using the castors, the working height is increased by 5.5 cm. ➢ s. also chapter 6.2 TRANSPORT : 73006... -
Page 66: Mount For (Magnifying) Lamps
17.4 Mount for (magnifying) lamps ❖ The extendable mount for (magnifying) lamps made of stainless steel is optionally available for the 601. When not in use, it simply disappears under the treatment table. The matching LED magnifying lamp „Circle“ allows precise work. -
Page 67: Manicure Bowl
ITEM NUMBER 17.7 Sheet metal for the headrest (privacy screen) ❖ Optionally, a sheet metal is available for the 601 which serves as a privacy screen for treatments in the prone position (massage position). ❖ It is attached to the underside of the headrest using a rail. -
Page 68: Paper Roll Incl. Holder
❖ The holder is attached to the underside of the backrest. ❖ If required, the entire lying surface can be covered. 17.9 Gel pad for nose slits ❖ for the headrest of the 601 are optionally available for an additional GEL PADS charge. ❖... -
Page 69: Nose Slit Cloths (Disposable Cloths)
Our team is happy to help! 17.10 Nose slit cloths (disposable cloths) ❖ for the nose slit of the headrest of the 601 (s. fig. below) are DISPOSABLE CLOTHS optionally available for an additional charge. ❖ The disposable cloths are handy, hygienic, extra soft and protect the upholstery of the headrest of your treatment table. -
Page 70: Neckrest "Dentalax
17.12 Protective covers 17.12.1 Terry cloth covers ❖ are optionally available for our treatment table 601; TERRY CLOTH COVERS for an additional charge (see fig. below). ❖ The are available as a 5-piece set, with or without an oil- TERRY CLOTH COVERS repellent coating made of polyurethane (PU). -
Page 71: Protective Covers Made Of Polyurethane (Pu)
Illustration similar: Illustration only serves as an example. ❖ Our covers are available in three different colors: White, Choco and Cream. ❖ It is best to order the matching cover directly with the purchase of your bed. Please contact our sales department regarding the correct size and design of the covers and the compatibility with your treatment table. -
Page 72: Foot Protective Cover
Please contact our sales department regarding the correct size and design of the covers and the compatibility with your treatment table. Our team is happy to help! 17.12.3 Foot protective cover ❖ This (s. fig. below) of your treatment PROTECTIVE COVER FOR THE FEET AREA table is optionally available for an additional charge. -
Page 73: Upholstery Care And Cleaning Agents
18. Upholstery care and cleaning agents 18.1 mikrozid ® sensitive (alcohol-free) ® ❖ We recommend mikrozid sensitive for gentle and thorough disinfection, care, and cleaning of the upholstery. ® ❖ mikrozid sensitive removes bacteria, fungi, and viruses (e.g. HBV, Rota, Vaccinia etc.). - Page 74 For more information, visit the manufacturer’s website at the following link: https://www.schuelke.com/intl-en/products/mikrozid-sensitive-liquid.php...
-
Page 75: Skai Cleaner
18.2 Skai cleaner ❖ For gentle and thorough care and cleaning of the artificial leather upholstery we additionally recommend Skai cleaner. ❖ Skai cleaner is available in a 200 ml spray bottle. ❖ Especially suitable for cleaning artificial leather. : 79427 KAI CLEANER TEM NUMBER... -
Page 76: Conditions Of Transport, Storage, And Operation
(see chapter 6.2 TRANSPORT ❖ You must not use the optional castors of the 601 on uneven surfaces. In this case, lift the 601 with one person at each corner of the base only when transporting it (see chapter 6.2 TRANSPORT ❖... -
Page 77: Technical Data
20. Technical Data 20.1 Treatment table 601 601 / G ENERAL DATA Minimum length (actuator of the backrest fully retracted, actuator of the legrest fully extended, headrest and footrests retracted) 184 cm Maximum length (actuator of the backrest fully retracted, actuator of the... -
Page 78: Drives
20.2 Drives RIVES INCL CONTROLS Power supply 100-240 V AC/50-60 Hz Power consumption approx. 270 Watt max. Duty cycle (drives) 10 % max. 2 min. continuous operation / 18 min. break Hand control Coiled cable A-weighted sound pressure level ≤ 35 dB (A) Device protection class Level of protection against penetration Lifting columns: IP X4... -
Page 79: Disposal
3 Never expose to open flames. 4 Before disposal, the 601 should be cleaned thoroughly to protect people, the environment, and materials. 5 Before you dispose of a treatment table, make sure that it is inoperative! -
Page 80: Warranty
Furthermore, no warranty claims will be granted if: → damage has been caused by improper use of the 601 and its components. → damage of the 601 and its components has been caused by gross negligence. -
Page 81: Ec-Declaration Of Conformity
PediSpa series; MLR Wet; MLW Space; 2022 MLX iDome (MLX i (Cube) Dome; MLR; MLX;RLL series; Ellipse; 601, E-Line, 601 Podo Relevant EU directives and harmonized standards used: 2006 / 42 / EU Machinery Directive 2014 / 35 / EU Low Voltage Directive... -
Page 82: Status Of Edition
THE OWNERSHIP RIGHTS TO THIS INSTRUCTION MANUAL ARE RESERVED. REPRODUCTION OR TRANSFER TO THIRD PARTIES IS PROHIBITED WITHOUT THE CONSENT OF GHARIENI GROUP GMBH. GHARIENI GROUP GMBH RESERVES THE RIGHT TO PROTECT ITS PROPERTY RIGHTS AND TO PROSECUTE ANY MISUSE. RODUCTION...
