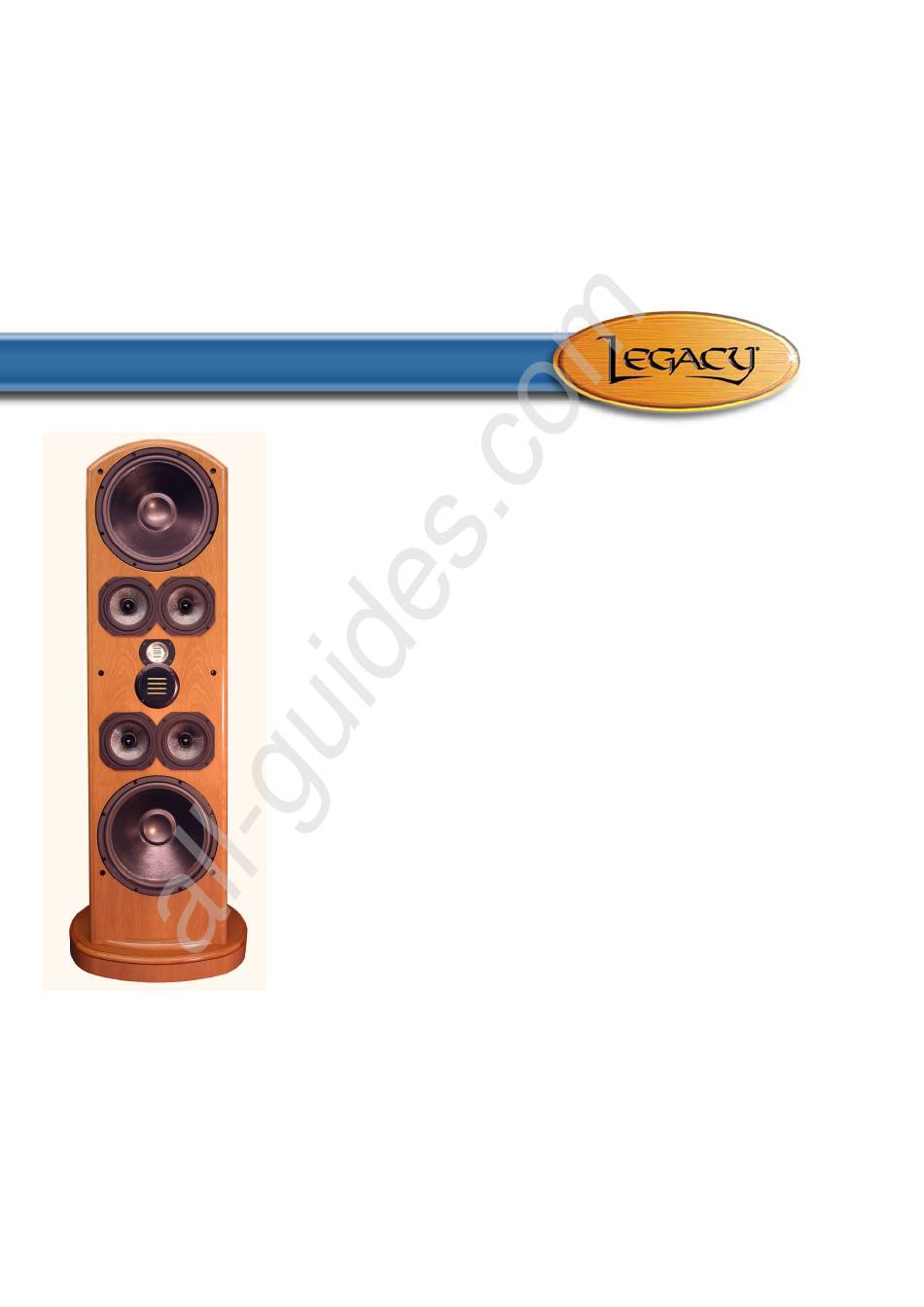

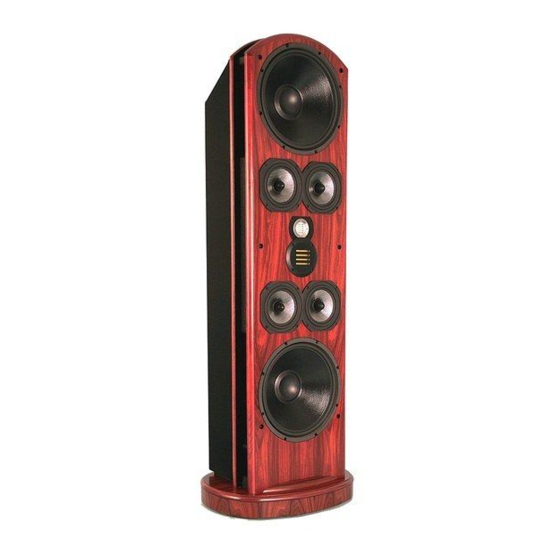

- Page 1 All manuals and user guides at all-guides.com Owners Manual For The Whisper HD Loudspeaker System...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents Page Registration Owners Record The Cabinetry / Our Commitment Setup Speaker Placement Hooking Up Cables Amplification 8-10 Speaker Connections 11-13 Whisper Wave Launch Processor Technology Specifications... -
Page 3: Owners Record
Refer to this when calling your dealer regarding this product. Model: Whisper HD Serial No: _________________________ Date of purchase: ___________________ Thank you for selecting a Legacy Loudspeaker System. These hand- crafted instruments will provide you with many years of listening en- joyment. -
Page 4: The Cabinetry / Our Commitment
Our Commitment A great deal of forethought, love and satisfaction is instilled in each piece of Legacy workmanship. We take pride in getting to know many of our customers on a first name basis. Your purchase of this product is backed by the renowned “Legacy... -
Page 5: Speaker Placement
All manuals and user guides at all-guides.com Speaker Placement Positioning Whisper for good performance is quite a bit easier than for most speakers. Remember that whisper is actually an acoustic gun with a highly controlled directivity pattern. Corner place- ments are actually quite workable though not necessarily optimal. Whisper will not become “boomy”... -
Page 6: Hooking Up Cables
All manuals and user guides at all-guides.com Hooking Up Cables The ideal conductor would have negligible resistance, inductance and capacitance. The table below shows how a few actual speaker cables measure up. Cable s/ft pF/ft µH/ft 12 ga. 0.0033 0.21 14 ga. - Page 7 All manuals and user guides at all-guides.com Hooking Up Cables What about phase shift due to frequency dependent travel times down the speaker cable? Measurements show that 100 Hz waves will be delayed about 20 billionths of a second behind 10 kHz waves when traveling to the end of a 10 foot speaker cable. Since the cilia of the ear requires 25,000 times longer than this just to transmit phase information, phase shifting is obviously not the primary concern when considering speaker cables.
-
Page 8: Amplification
For this reason, extensive measures have been taken to ensure that each Legacy speaker system represents a smooth, non-reactive load to virtually any amplifier. Often there is much confusion regarding amplification and loudness levels. It should be under- stood that the role of the amplifier goes beyond that of driving loudspeakers to a given sound pressure level. - Page 9 Some audiophiles feel that 200 watts per channel is the bare minimum to avoid audible clipping distortion when reproducing music at “live” playback levels. Your Legacy speakers are designed to take advan- tage of “high-powered” amplifiers, so don’t be afraid to put them through their paces.
- Page 10 All manuals and user guides at all-guides.com Amplification When an amplifier is unable to fulfill your loudspeakers demands, a damaging harmonic spike may be leaked to the high frequency drivers. Another important point regarding loudness is that the dB scale is a logarithmic one.
-
Page 11: Speaker Connections
All manuals and user guides at all-guides.com Speaker Connections The Terminal Plate At the rear of each of your loudspeakers you will find a terminal plate housing two rows of jumpered binding posts. The upper row is the input to the "satellite"... - Page 12 All manuals and user guides at all-guides.com Speaker Connections Biwiring Biwiring allows one to minimize the cable losses between the amplifier and the loudspeaker. This is accomplished with a single stereo amplifier by running separate sets of cables to the satellite section and the subwoofer section from the same channel of amplification.
- Page 13 All manuals and user guides at all-guides.com Speaker Connections 1. Vertical Biamping Vertical biamplification requires the dedication of a single stereo amplifier for the left speaker, and another stereo amplifier for the right speaker. This con- figuration improves channel separation and can improve imaging slightly. 2.
-
Page 14: Whisper Wave Launch Processor
Whisper Wave Launch Processor The high definition Digital Wavelaunch Processor hosts a LEGACY custom algorithm which automatically loads when the processor is powered on. Fac- tory settings are ‘plug and play’, and do not require a computer to utilize. Connections between the preamp and power amplifier should be as below. -
Page 15: Specifications
All manuals and user guides at all-guides.com Specifications System Type: 10 drivers, 4 way Tweeter: 1” dual pole neo ribbon, folded Kapton diaphram Midrange: 3” dual pole neo ribbon, vapor deposited kapton diaphram MidWoofer: 4 x 7" Rohacell reinforced Silver Graphite, cast frame Subwoofer: 4 X 15”... - Page 16 Legacy Audio Distributor in Low Voltage Directive 2006/95/EC your country. A listing of Legacy EMC Directive 2004/108/EC Audio Distributors can be found on the Legacy Audio website www.legacyaudio.com or by contacting Legacy Audio at: 3023 E.
- Page 17 All manuals and user guides at all-guides.com Notes:...
- Page 18 All manuals and user guides at all-guides.com ©2010 Legacy Audio 3023 E Sangamon Ave. Springfield, IL 62702 Phone: 800-283-4644 Fax: 217-544-1483...
