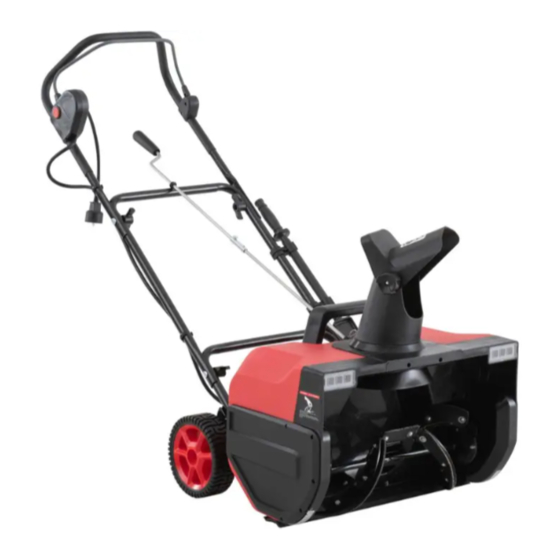

- Page 1 22" ELECTRIC SNOW BLOWER 5 Year Limited Warranty WEAR CSA APPROVED WEAR EAR WEAR A EYE PROTECTION PROTECTION FACE MASK...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS 22" SNOW BLOWER Motor 120 V, 60 Hz, 15 A Paddle speed Up to 2,500 RPM Clearing width 22" (56 cm) Clearing depth 12" (30 cm) Discharge distance Up to 30' (9 m) Plowing capacity (Max) 25 tons (25,000 kg) per hour LED light Impeller size 8"... -
Page 3: Table Of Contents
5554-513 22" ELECTRIC SNOW BLOWER TABLE OF CONTENTS Product Specifications ................... 1 Table of Contents ................... 2 Safety Information ..................3-5 Electrical ....................5-6 Assembly ....................7-9 Operation ....................10-12 Maintenance ..................12-14 Safety Symbols ..................15-16 Know your 22" Snow Blower..............17-18 Troubleshooting ................... -
Page 4: Safety Information
SAFETY INFORMATION FOLLOW THESE RULES WHILE OPERATING THE SNOW BLOWER Walk. Do not run. • Verify that the snow blower is not in contact with anything before turning it on. • Stay away from paddle openings at all times. Keep face, hands, and feet away from concealed, moving, or rotating parts. - Page 5 5554-513 22" ELECTRIC SNOW BLOWER • Keep guards in place and in working order. • Don't force the snow blower - It will perform better and safer at the rate for which it was designed. • Don't overreach - Keep proper footing and balance at all times.
-
Page 6: Electrical
• Keep these instructions in a safe place for future reference. Refer to them often, and use them to instruct other users. Anyone who uses this snow blower must read these instructions carefully. • Maintain the snow blower with care. Follow the instructions for lubricating and changing accessories. - Page 7 5554-513 22" ELECTRIC SNOW BLOWER When working outdoors with a product, use an extension cord that is designed for outside use. This type of cord is designated with "WM" on the cord's jacket. Before using any extension cord, inspect it for loose or exposed wires and cut or worn insulation.
-
Page 8: Assembly
ASSEMBLY GETTING STARTED 1. Remove the snow blower and all other items from the box. 2. Determine the left and right hand side of the snow blower by standing in the normal operating position. 3. Check all items for shipping damage. If damage is found or suspected or if any of the parts are missing, do not assemble. - Page 9 5554-513 22" ELECTRIC SNOW BLOWER DISCHARGE CHUTE ASSEMBLY Fig. 8 Fig. 9 Fig. 10 1. Loosen the knob to lift the chute deflector. 2. Lift the chute deflector and lock it securely onto the discharge chute. 3. Raise or lower the chute deflector to the desired height of the snow stream and tighten the knob.
- Page 10 NOTE: Before using this machine, make sure that the power source you will use complies with the specifications detailed in this manual. Before inserting the plug into the socket, verify that the snow blower's roll shaft and rubber plates are firmly secured with screws, and that the rubber plates are firmly secured with screws, and that the rubber plates are facing the correct direction.
-
Page 11: Operation
5554-513 22" ELECTRIC SNOW BLOWER OPERATION POWERING ON AND OFF Fig. 21 Fig. 22 Fig. 23 1. To power on, depress and hold the safety switch button found alongside the switch housing (Fig. 21 ). 2. While depressing the safety switch button, pull the ON/OFF switch bail toward you. - Page 12 5. Note the wind direction. If possible, move in the same direction as the wind so that the snow is not thrown against the wind (and then back into your face and onto the just cleared path). 6. While moving the snow blower, do not drag the power cable violently or roughly. The snow blower should move within the range that the cable can reach.
-
Page 13: Maintenance
5554-513 22" ELECTRIC SNOW BLOWER WARNING! Make sure that the chute deflector snaps and locks completely onto the discharge chute. An opening between the discharge chute and the chute deflector may allow foreign objects to be picked up by the snow blower and thrown in the direction of the operator causing serious bodily injury. - Page 14 REPLACING THE RUBBER PLATES NOTE: When replacing worn rubber plates, pay close attention to carefully distinguish between the coarse and smooth side of the plates. Place the coarse side inside and the smooth side outside. Fig. 27 Fig. 28 Fig. 29 1.
- Page 15 5554-513 22" ELECTRIC SNOW BLOWER Fig. 33 Fig. 34 Belt tension Belt Loosen Tighten Big pulley 3. To replace the big pulley, remove the screw and washer from the middle of the pulley. While securing the paddle, so it does not spin, use a 7/ 8-inch socket to turn the outer nut of the pulley clockwise (the pulley is left-handed, so loosening and tightening occur in reverse orientation;...
-
Page 16: Safety Symbols
SAFETY SYMBOLS Voltage Current Frequency (cycles per second) Power Time Rational speed, at no load. Double-insulated construction. Revolutions, strokes, surface speed, orbits etc., per minute. SAFETY ALERT - Indicates a precaution, a warning, or a danger. WARNING! Do not expose the unit to rain or wet conditions. Keep dry. To reduce the risk of injury user must read and understand operator's manual before using this product. - Page 17 5554-513 22" ELECTRIC SNOW BLOWER Always keep the power cable away from heat sources, oils, or sharp edges. Immediately remove plug from the mains if the cable is damaged or entangled. Wear safety gloves during use to protect hands. Wear safety footwear at all times to provide protection against objects that may accidentally fall on feet.
-
Page 18: Know Your 22" Snow Blower
KNOW YOUR 22" ELECTRIC SNOW BLOWER • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. -
Page 19: Troubleshooting
5554-513 22" ELECTRIC SNOW BLOWER WARNING! If any parts are damaged or missing, do not operate this product a until the parts are replaced. Using a product with damaged or missing parts could result in serious personal injury. WARNING! Do not attempt to modify this product or create accessories not recommended for use with this product. -
Page 20: Exploded View
EXPLODED VIEW... -
Page 21: Parts List
5554-513 22" ELECTRIC SNOW BLOWER PARTS LIST NAME NAME CIRCLIP TENSION BRACKET PAN HEAD SCREW M6X18 FLAT WASHER SMALL WASHER TENSION SUPPORT BEARING SEAT 6001-Z BEARING RIGHT CONNECTING SUPPORT TENSION WHEEL AXLE PRESS PLATE SELF TAPPING SCREW ST4.2X16 M6NUT WIRE PRESS BLOCK AUGER ASSEMBLY SELF TAPPING SCREW ST4.2X13... - Page 22 NAME NAME MOTOR (15A) SWING HANDLE CAP SELF TAPPING SCREW ST4.2X19 100 SWING HANDLE STRAP 101 CIRCLIP SELF TAPPING SCREW ST4.2X19 102 SWING POLE WATERPROOF COVER 106 MIDDLE POLE SELF TAPPING SCREW ST4.2X16 107 SELF TAPPING SCREW ST2.9X8 CIRCLIP 108 STEERING SHRAPNEL WHEEL 109 SELF TAPPING SCREW ST4.2X16 AXLE...
-
Page 23: Warranty
WARRANTY BENCHMARK 22" ELECTRIC SNOW BLOWER WARRANTY If this Benchmark tool fails due to a defect in material or workmanship within five years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. This warranty does not include expendable parts including but not limited to blades, brushes, belts, light bulbs and/or batteries. - Page 24 22" ELECTRIC SNOW BLOWER 5 Year Limited Warranty 5554-513 BENCHMARK TOOLS CANADA Made in China ST. JACOBS, ONTARIO N0B 2N0 © 2021 Home Hardware Stores Limited CUSTOMER SERVICE/TECH SUPPORT 1-833-818-4111 * This Benchmark product carries a five (5) year LIMITED warranty against defects in workmanship and materials.
Need help?
Do you have a question about the 5554-513 and is the answer not in the manual?
Questions and answers
WHERE CAN i GET REPLACEMENT PADDLE
If any parts, including the paddle, are damaged or missing, you should call 1-833-818-4111 for assistance.
This answer is automatically generated
I have a Benchmark model 5554-513 22" electric snowblower. I need a new drive belt and **** hoping to find the size of this belt so I can buy a new belt.
