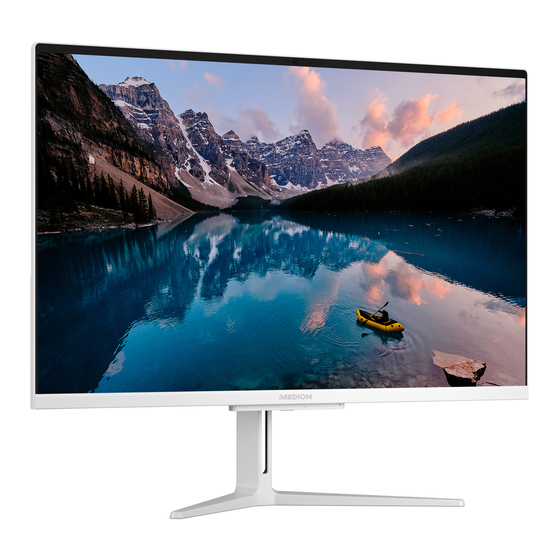

- Page 1 User Manual 68.6 CM/27“ ALL-IN-ONE PC E27401...
-
Page 2: Table Of Contents
Contents Contents Information about these Operating Instructions ........... 5 Explanation of Symbols ..................5 Proper Use ......................6 Simplifi ed EU Declaration of Conformity ............7 Information on Trademarks ................8 Safety Instructions ..................8 Dangers for children and people with reduced ability to operate electronics ......................8 Operational Safety ....................9 Never Carry Out Repairs Yourself .............. - Page 3 Contents Network Operation ..................26 Network Connection ..................26 Wi-Fi (Wireless Network) ................... 26 Bluetooth® ......................28 Airplane Mode ....................28 USB Port ......................29 Securing your all in one PC ................29 Password Setting (Power-on) .................29 Resetting the all in one PC to its factory settings ......... 30 UEFI Confi...
-
Page 4: Information About These Operating Instructions
Information about these Operating Instructions Information about these Operating Instructions Thank you for choosing our product. We hope you enjoy using it. Read the safety instructions and all other instructions carefully before using the device for the fi rst time. Note the warnings on the device and in the operating instructions. -
Page 5: Proper Use
Information about these Operating Instructions Due to the 5 GHz frequency range of the used wireless LAN solution, use in EU countries is only permitted inside buildings. Indoor use Devices with this symbol are only suitable for use indoors. Polarity symbols Fig. -
Page 6: Simplifi Ed Eu Declaration Of Conformity
Simplifi ed EU Declaration of Conformity Simplifi ed EU Declaration of Conformity Hereby, MEDION AG declares that the radio equipment type E27401 (MD 63825) is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.medion.com/conformity. -
Page 7: Information On Trademarks
The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used by MEDION under licence. The USB™ word mark and logos are registered trademarks of USB Implementers Forum, Inc. and are used by MEDION under licence. Dolby is a registered trademark of Dolby Laboratories. -
Page 8: Operational Safety
Safety Instructions DANGER! Risk of suffocation! Packaging fi lm can be swallowed or used improperly. Therefore, there is a risk of suffocation! − Keep packaging material such as plastic fi lm or plastic bags away from children. WARNING! Impairment to hearing! Listening through earphones or headphones at excessive volume levels, as well as changes to the basic settings of the equaliser, drivers, software or operating system generates excessive acoustic... - Page 9 Safety Instructions In case of open housing / AC adapter / battery there is a danger of electric shock or fi re. − Never open the housing of the device, battery or AC adapter! − Never use the device when the casing is open.
-
Page 10: Never Carry Out Repairs Yourself
Safety Instructions • the device housing is damaged or liquid has penetrated into the device. − Have the device inspected by customer services. Otherwise, it may not be possible to operate the device safely. There may be a risk of electric shock! Never Carry Out Repairs Yourself WARNING! -
Page 11: Environmental Requirements
Safety Instructions • Set up and operate all components on a stable, level and vibration-free surface to prevent the all in one PC from falling down. • Maintain a distance of at least one metre from sources of high-frequency and magnetic interference (TV sets, speakers, mobile phones, DECT telephones, etc.) in order to avoid malfunctions and data loss. -
Page 12: Power Supply
Safety Instructions NOTICE! Risk of damage! Large changes in temperature or fl uctuations in humidity can cause moisture build up within the all in one PC due to condensation. This can cause an electrical short circuit. − After transporting the all in one PC, wait until the device has reached room temperature before switching it on. -
Page 13: Cabling
Safety Instructions • For extra safety, we recommend using an overvoltage protection device (surge protector) to prevent your all in one PC from sustaining damage as a result of power surges or lightning strikes. • The only devices which may be connected to the device are those which meet the requirements defi... -
Page 14: Protecting The Display
Safety Instructions − Do not exchange the supplied cable for another one. Use only the supplied cable as this cable has been extensively tested in our laboratory. − In addition, when connecting your peripherals only use the connecting cables supplied with those devices. −... -
Page 15: Ergonomics
Safety Instructions Ergonomics Avoid dazzle, refl ections and a light-dark contrast that is too strong in order to protect your eyes. The all in one PC should never be placed next to a window because this is the brightest part of the room in daylight. This brightness can make it more diffi cult for the eyes to adjust to the darker display. -
Page 16: Included With Your All In One Pc
Included with your all in one PC • In general – change your position frequently (around every 20-30 minutes) and take regular breaks to avoid tiredness. • Back – when sitting at your workstation, your back must be supported by your chair’s backrest, which must be upright or angled slightly back. -
Page 17: Unpacking
Unpacking With the product you have purchased you have received: • all in one PC • Base with screw • AC adapter • Wireless keyboard and mouse set • Instruction Manual • Warranty documents Unpacking − Choose a suitable place to set up the device before unpacking it. −... -
Page 18: Overview And Device Parts
Overview and Device Parts Overview and Device Parts Front View (similar picture) -
Page 19: Rear View
Overview and Device Parts Webcam LED Webcam and “Private mode” slider closes or releases the webcam Microphone Display Operating Indicator Rear View (similar picture) -
Page 20: Bottom View
Overview and Device Parts LAN Port (RJ-45) HDMI Connector USB Ports 2.0 USB Ports 3.1 (type A) Microphone Headphone / Loudspeaker DC In Bottom View (similar picture) Power ON/OFF... -
Page 21: Power Supply
Power Supply Power Supply On/Off Button − Open the all in one PC and hold the on/off button down briefl y to switch the all in one PC on or off. If it is no longer possible to switch off the all in one PC via the software, keep the On/Off switch pressed down for about 10 seconds. -
Page 22: Starting The All In One Pc
Preparation for Starting-Up NOTICE! Loss of data! The initial installation may take a few minutes. Do not unplug the all in one PC from the power source or switch it off during the initial installation. This may adversely affect the installation. −... -
Page 23: Ac Power
AC Power NOTICE! Loss of data! In the fi rst few days following the initial installation, Windows® may update and confi gure data (e.g. with new updates) which can result in delays in the device shutting down and starting up. −... -
Page 24: Power Management (Power Options)
Power Management (Power Options) Power Management (Power Options) Your all in one PC offers automatic and user selectable power-saving and energy functions that can be used to optimise battery life and reduce the overall operating costs. If you need help with the power management of your all in one PC, press the F1 key for Windows Help. -
Page 25: Sound System
Sound System Sound System Your all in one PC comes with a high-defi nition audio system with 2 speakers (Dolby ). Personal settings can be confi gured via the Dolby menu. This ensures optimum support for all current programs and games. WARNING! Impairment to hearing! Listening through earphones or headphones at excessive volume... - Page 26 Network Operation • in places where it is compulsory to switch off radio-controlled equipment, e.g. on major construction sites or in places where blasting operations are carried out. WARNING! Danger from radio signals and electromagnetic radiation! Radio signals and electromagnetic radiation can affect the functionality of sensitive electronic devices, such as pacemakers or implanted cardioverter defi...
-
Page 27: Bluetooth
Network Operation A connection can also be established to another end device with Wi-Fi functionality without an access point. Without a router, however, the network is restricted to those devices directly connected to it. If encryption is used for the transfer, the same procedure must be used for all devices. Encryption is a procedure to protect the network from unauthorised access. -
Page 28: Usb Port
Securing your all in one PC USB Port The universal serial bus is a standard for connecting input devices, scanners and other peripherals. The USB 3.0 ports are fully backwards compatible. Ensure that the plug and the port fi t together precisely in order to avoid any damage to the contacts. -
Page 29: Resetting The All In One Pc To Its Factory Settings
Resetting the all in one PC to its factory settings Resetting the all in one PC to its factory settings If you experience problems with your device, you can refresh or reset it. Windows is reinstalled when you refresh your device. Your personal fi les and settings are retained. -
Page 30: Uefi Confi Guration
UEFI Confi guration NOTICE! Loss of data! All the data stored on your All in one PC will be deleted as a result of resetting it − Back up your data before resetting the all in one PC. If you have forgotten the Windows password for your device, you can also restore the all in one PC from the login screen after rebooting the device. -
Page 31: Faqs - Frequently Asked Questions
FAQs – Frequently Asked Questions FAQs – Frequently Asked Questions ® How do I activate Windows ® • Windows is activated automatically as soon as an Internet connection is established. The time is incorrect. Click with the right mouse button on the clock in the bottom right corner of your screen and then click on “Adjust date/time”. -
Page 32: Customer Service
You’ve checked through the suggestions in the previous section and you’re still having problems with your device? Then call our hotline or contact us at www.medion.com. We’ll be glad to help you. Before contacting your technology centre, however, prepare the following information: •... -
Page 33: Transport
Customer Service The current drivers are available on our homepage at www.medion.com Please use the service address for the country where the device was purchased. Transport Please note the following information if you wish to transport the all in one PC: −... -
Page 34: Storage When Not In Use
Upgrading/Modifying and Repair NOTICE! Risk of damage! To avoid damaging the device, never allow the plug contacts to come into contact with water. − If this nevertheless happens, it is essential that the plug contacts are rubbed dry before using the device again. Storage when not in use Store the all in one PC in a cool, dry place if you are not going to use it for an extended period of time and make sure that it is protected from dust and extremes of... -
Page 35: Disposal
However, these approaches were mostly very complicated and varied from one manufacturer to the next. When handling warranty issues for all of its display products, MEDION therefore adheres to the strict and transparent requirements of the standard EN ISO 9241-307, Class II; which has been briefl y summarised below. - Page 36 Information on Display Errors Pixel structure 5 Pixel Rows Pixel blue green Sub-Pixel Pixel defect types: • Type 1: permanently illuminated pixel (bright, white dot) even when not activated. A white pixel occurs due to the illumination of all three sub-pixels. •...
-
Page 37: Technical Specifi Cations
Technical Specifi cations Technical Specifi cations General System Type E27401 Integrated Peripheral Devices 2 stereo speakers 61.5 x 15.2 x 48.0 Dimensions (W x D x H in cm) Weight 3.87 kg Installed RAM Memory 8 GB DDR4 256 GB... - Page 38 Technical Specifi cations Mains adapter Manufacturer’s name Chicony Electronics CEZ, s.r.o. HRB 26304889 Address: 1553 Tovarni 53501 Pŕelouc Czech Republic Model name A15-090P1A Input voltage/current/input AC 100 - 240 V~, 1.2A, 50-60 Hz frequency Output voltage/current 19.0 V 4.74 A Output power 90.0 W Average effi...
-
Page 39: Information On Wlan/Bluetooth
Technical Specifi cations Information on WLAN/Bluetooth® Frequency range: 2.4 GHz/5 GHz Wi-Fi standard: 802.11 a/b/g/n/ac/ax Encryption: WEP/WPA/WPA2/WPA3 Frequency range/MHz Channel Max. transmission power/dBm WLAN 2.4 GHz 2400 - 2483.5 1 - 13 20,0 Bluetooth® 2402 - 2480 13,6 WLAN 5 GHz 5150 - 5250 36 - 48 22,70 WLAN 5 GHz 5250 - 5350... -
Page 40: Service Information
• In our Service Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will fi nd our Service Community at http://community.medion.com. • Alternatively, use our contact form at www.medion.com/contact. -
Page 41: Legal Notice
Privacy statement Dear customer, We wish to inform you that we, MEDION AG, Am Zehnthof 77, 45307 Essen, Germany process your personal data as a data controller. For matters regarding data protection, we are supported by our company data pro- tection offi... - Page 42 (Article 77 GDPR in conjunc- tion with S 19 BDSG). The state offi cial for data protection and freedom of information for MEDION AG is Nordrhein Westfalen, P box 200444, 40212 Düsseldorf, Germany. www. ldi.nrw.de.
-
Page 43: Index
Index Index Wi-Fi (Wireless Network) ......26 Notes for Service Technicians ....35 Bluetooth® ..........28 Operational Safety ........9 Connecting ..........13 Pixel Defect Types ........37 Cabling ............14 Power Management (Power Options) .. 25 Power Supply .........13 Power Supply Connections ..........39 On/Off Switch ........22 Customer Service........ - Page 44 PRODUCED IN CHINA FOR: MEDION AG AM ZEHNTHOF 77 45307 ESSEN GERMANY...
