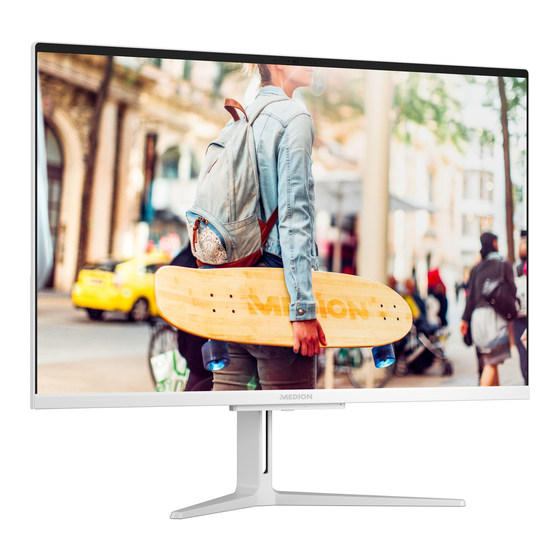

- Page 1 User Manual 68.6 CM/27" All-In-One PC E27301 (MD 64005)
-
Page 2: Table Of Contents
Contents Contents Information about these operating instructions ........... 5 Explanation of Symbols ..................5 Proper Use ......................6 Declaration of Conformity ................7 Information on Trademarks ................7 Safety Instructions ..................8 Dangers for children and people with reduced ability to operate electronics ......................8 Operational Safety ....................9 Never Carry Out Repairs Yourself .............. - Page 3 Contents Network Operation ..................27 Network Connection ..................27 Wi-Fi (Wireless Network) ................... 27 Bluetooth® ......................29 Airplane Mode ....................29 USB Port ......................30 Securing your AIO PC ..................30 Password Setting (Power-on) .................30 Resetting the AIO PC to its factory settings ........... 31 System Restore with Windows Recovery Options ..........31 UEFI Firmware Confi...
-
Page 4: Information About These Operating Instructions
Information about these operating instructions Information about these operating instructions Thank you for choosing our product. We hope you enjoy using it. Read the safety instructions and all other instructions carefully before using the device for the fi rst time. Note the warnings on the device and in the operating instructions. -
Page 5: Proper Use
Information about these operating instructions Indoor use Devices with this symbol are only suitable for use indoors. Polarity symbols Fig. A On devices with barrel connectors, these symbols indicate the polarity of the plug. There are two variants for the polarity: either the Fig. -
Page 6: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity MEDION AG hereby declares that the product AIO PC E27301 (MD 64005) is conform to all relevant Australian requirements. Information on Trademarks Windows® is a registered trademark of Microsoft®. AMD, the AMD arrow logo, Ryzen, Radeon, Vega and combinations thereof are trademarks of Advanced Micro Devices, Inc. -
Page 7: Safety Instructions
Safety Instructions Safety Instructions Dangers for children and people with reduced ability to operate electronics This device may be used by children over the age of 8 and by persons with limited physical, sensory or mental abilities or by those without experience and knowledge, if they are supervised or have been instructed in the safe use of the device and understand the ensuing dangers. -
Page 8: Operational Safety
Safety Instructions Operational Safety Please read this section carefully and follow all instructions given. The instructions will help you to operate the AIO PC reliably and increase its service life. Liquids penetrating the device may impair the electrical safety of the product. −... -
Page 9: Never Carry Out Repairs Yourself
Safety Instructions − Do not insert anything into the device through the slots and openings. This could result in an electric shock or even ignite a fi re which will damage your device. Should the below occur, switch the device off immediately/ do not switch the device on, disconnect the mains plug and contact customer services if: •... -
Page 10: Setup Location
Safety Instructions Setup Location • The AIO PC may only be used indoors (due to the use of 5 GHz Wi-Fi technology). • Do not use the device in areas where there is a risk of explosion such as tank farms, fuel storage depots or areas in which solvents are processed. It is also not permitted to use this device in those areas where the air is polluted with fi... -
Page 11: Environmental Requirements
Safety Instructions Environmental Requirements • The AIO PC is most reliably operated at an ambient temperature between 5 °C (+41 °F) and 30 °C (+86 °F) and at a relative humidity between 20% and 80% (without condensation). • When switched off, the AIO PC can be stored for up to four weeks at temperatures between 0 °C (+32 °F) and 60 °C (+140 °F). -
Page 12: Power Supply
Safety Instructions Power Supply WARNING! Risk of electric shock! Do not open the housing of the AC adapter. There is a risk of electric shock when the housing is open. It does not contain any parts requiring maintenance. − Do not open the housing of the AC adapter. −... -
Page 13: Cabling
Safety Instructions NOTICE! Risk of damage! Unsuitable mains adapters may cause damage to the product. − Only use this device and accompanying AC adapter with each other. Cabling − Position the cables so that they cannot be stepped on or might cause a risk for tripping. -
Page 14: Protecting The Display
Safety Instructions − Remove any unnecessary cables from your AIO PC to avoid possible interference. Protecting the Display The display is the most sensitive component part of the device as it consists of thin glass. The display can break if subjected to too much stress. −... -
Page 15: Ergonomics
Safety Instructions Ergonomics Avoid dazzle, refl ections and a light-dark contrast that is too strong in order to protect your eyes. The AIO PC should never be placed next to a window because this is the brightest part of the room in daylight. This brightness can make it more diffi cult for the eyes to adjust to the darker display. - Page 16 Safety Instructions • In general – change your position frequently (around every 20-30 minutes) and take regular breaks to avoid tiredness. • Back – when sitting at your workstation, your back must be supported by your chair’s backrest, which must be upright or angled slightly back. •...
-
Page 17: Included With Your Aio Pc
Included with your AIO PC Included with your AIO PC DANGER! Risk of suffocation! Packaging material is not a toy! There is a risk of suffocation if plastic packaging is swallowed or used inappropriately! − Keep packaging material, e.g. plastic fi lm or bags, away from children. -
Page 18: Mounting The Base
Mounting the Base Mounting the Base Before using the AIO PC, mount the base as follows: Place the AIO PC on a soft surface with the monitor face down. Fold up the stand a little as shown. Screw the base onto the stand with the screw and tighten the screw hand-tight. -
Page 19: Overview And Device Parts
Overview and Device Parts Overview and Device Parts Front View (similar picture) -
Page 20: Rear View
Overview and Device Parts Webcam LED Webcam and “Private mode” slider closes or releases the webcam Microphone Display Operating Indicator Rear View (similar picture) -
Page 21: Bottom View
Overview and Device Parts LAN Port (RJ-45) HDMI Connector USB Ports 2.0 USB Ports 3.1 (type A) Microphone Headphone / Loudspeaker DC In Bottom View (similar picture) On/off button... -
Page 22: Power Supply
Power Supply Power Supply On/Off Button − Open the AIO PC and hold the on/off button down briefl y to switch the AIO PC on or off. If it is no longer possible to switch off the AIO PC via the software, keep the on/off button pressed down for about 10 seconds. -
Page 23: Starting The Aio Pc
Preparation for Starting-Up NOTICE! Loss of data! The initial installation may take a few minutes. Do not unplug the AIO PC from the power source or switch it off during the initial installation. This may adversely affect the installation. − Do not switch off the AIO PC until after the installation has been completed successfully and the startup screen appears. -
Page 24: Ac Power
AC Power NOTICE! Loss of data! In the fi rst few days following the initial installation, Windows® may update and confi gure data (e.g. with new updates) which can result in delays in the device shutting down and starting up. −... -
Page 25: Power Management (Power Options)
Power Management (Power Options) Power Management (Power Options) Your AIO PC offers automatic and user selectable power-saving and energy functions that can be used to optimise battery life and reduce the overall operating costs. If you need help with the power management of your AIO PC, press the F1 key for Windows Help. -
Page 26: Sound System
Sound System Sound System Your AIO PC comes with a high-defi nition audio system with 2 speakers (Dolby Personal settings can be confi gured via the Dolby menu. This ensures optimum support for all current programs and games. WARNING! Impairment to hearing! Listening through earphones or headphones at excessive volume levels, as well as changes to the basic settings of the equaliser, drivers, software or operating system generates excessive acoustic... - Page 27 Network Operation Restricted use Always switch off the AIO PC in the following situations: • in hospitals, clinics or other health centres and in all places in the immediate vicinity of medical equipment, • in all places where there is a risk of explosion (e.g. petrol stations; in dusty environments, e.g.
-
Page 28: Bluetooth
Network Operation Wi-Fi access points are frequently found in large offi ces, airports, train stations, universities or Internet cafés. They provide access to particular services and networks or to the Internet. Access permissions are generally necessary and often result in usage charges. Access points often have built-in DSL modems. -
Page 29: Usb Port
USB Port USB Port The universal serial bus is a standard for connecting input devices, scanners and other peripherals. The USB 3.1 ports are fully backwards compatible. Ensure that the plug and the port fi t together precisely in order to avoid any damage to the contacts. -
Page 30: Resetting The Aio Pc To Its Factory Settings
Resetting the AIO PC to its factory settings Resetting the AIO PC to its factory settings If you experience problems with your device, you can refresh or reset it. Windows is reinstalled when you refresh your device. Your personal fi les and settings are retained. -
Page 31: Uefi Firmware Confi Guration
UEFI Firmware Confi guration How to Reset Your AIO PC − Open the start menu. − Tap or click on All apps. − Select the Settings app from the list. − Tap or click on Update & Security. − Tap or click on the menu option Recovery. −... -
Page 32: Executing The Uefi Firmware Confi Guration
FAQs – Frequently Asked Questions Executing the UEFI Firmware Confi guration You can only run the confi guration program upon system startup. If the AIO PC has already started up, switch it off and restart it. − Press the F2 key to run the UEFI fi rmware confi guration. FAQs –... -
Page 33: Customer Service
You’ve checked through the suggestions in the previous section and you’re still having problems with your device? Then call our hotline or contact us at www.medion.com. We’ll be glad to help you. Before contacting your technology centre, however, prepare the following information: •... -
Page 34: Driver Support
Customer Service Driver Support The system has been thoroughly and successfully tested with the installed drivers in our test laboratory. It is normal in the computer sector, however, for the drivers to need updating from time to time. This is because there may be compatibility problems with other components (programs, devices) which have not yet been tested. -
Page 35: Storage When Not In Use
Upgrading/Modifying and Repair − Do not use solvents, corrosive or aerosol-based detergents to clean the device. − Use special cleaning products for the display and the touchpad (e.g. glass cleaner). − Under no circumstances must liquids penetrate inside the device as this may cause damage. -
Page 36: Disposal
However, these approaches were mostly very complicated and varied from one manufacturer to the next. When handling warranty issues for all of its display products, MEDION therefore adheres to the strict and transparent requirements of the standard EN ISO 9241-307, Class II; which has been briefl y... - Page 37 Information on display errors The EN ISO 9241-307 standard defi nes, amongst other things, the generally applicable guidelines relating to pixel defects. Pixel defects are categorised into four fault classes and three defect types. Every individual pixel consists of three sub-pixels, each of which is assigned a basic colour (red, green, blue).
-
Page 38: Technical Specifi Cations
1400 x 1050 1600 x 900 1920 x 1080 1920 x 1200 Technical Specifi cations General System Type E27301 Integrated Peripheral Devices 2 stereo speakers 61.5 x 15.2 x 48.0 Dimensions (W x D x H in cm) Weight 3.87 kg... - Page 39 Technical Specifi cations Mains adapter Manufacturer’s name Chicony Electronics CEZ, s.r.o. HRB 26304889 Address: 1553 Tovarni 53501 Pŕelouc Czech Republic Model name A15-090P1A Input voltage/current/input AC 100 - 240 V~, 1.2A, 50-60 Hz frequency Output voltage/current 19.0 V 4.74 A Output power 90.0 W Average effi...
-
Page 40: Information On Wlan/Bluetooth
Technical Specifi cations Information on WLAN/Bluetooth® Frequency range: 2.4 GHz/5 GHz Wi-Fi standard: 802.11 a/b/g/n/ac Encryption: WEP/WPA/WPA2 Frequency range/MHz Channel Max. transmission power/dBm WLAN 2.4 GHz 2400 - 2483.5 1 - 13 19.8 WLAN 5 GHz 5150 - 5250 36 - 48 22.8 WLAN 5 GHz 5250 - 5350 52 - 64... -
Page 41: Legal Notice
These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer. Copyright is owned by the distributing company: MEDION AG Am Zehnthof 77 45307 Essen Germany Please note that you cannot use the address above for returns. Please always contact... - Page 42 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. YEAR AFTER SALES SUPPORT WARRANTY 1300 884 987 australia@medion.com...
- Page 43 If at any time you feel your repair is being handled unsatisfactorily, you may escalate your complaint. Please telephone us on 1300 884 987 or write to us at: MEDION Australia Pty Ltd Chatswood, NSW 2067; Australia Hotline: 1300 884 987 (Opening hours: Mon - Fri 08:30AM to 06:00PM EST) Internet www.medion.com.au;...
-
Page 44: Index
Index Index Licence Agreement ........24 Bluetooth® ..........29 Network Operation ........27 Network Connection (RJ45) ....27 Connecting ..........13 Wi-Fi (Wireless Network) ...... 27 Cabling ............14 Power Supply .........13 Pixel Defect Types ........38 Connections ..........40 Power Management (Power Options) ..26 Customer Service Power Supply Do You Need More Help? .....34... - Page 46 Customer Service Hotline. Made in China DISTRIBUTED BY: ALDI STORES 1 SARGENTS ROAD MINCHINBURY NSW 2770 www.aldi.com.au VERSION: V4.0 AFTER SALES SUPPORT 707903 1 300 884 987 australia@medion.com YEAR MODEL: WARRANTY 04/2022 MD 64005 E27301...
