Hydraulic Layouts
NOTICE
If the steering system in your boat does not match any of the hydraulic layouts in this manual and you are
unsure how to install the pump, contact Garmin Product Support.
Before you start the pump installation, identify the type of hydraulic steering system in your boat. Each boat is
different, and you must consider certain aspects of the existing hydraulic layout before deciding where to mount
the pump.
Before you start the pump installation, you should throughly review the hydraulic considerations for important
information on hydraulic hose and fitting types, installation methods, and thread-sealant information.
Important Considerations
1
• The three hydraulic ports on the pump are
/
in. NPT.
4
• You should use T-connectors (not included) to connect the hydraulic lines to the pump.
• To allow for easy pump isolation and removal, you should install shut-off valves (not included) in the
hydraulic lines between the pump manifold and T-connectors.
• An appropriate thread sealant should be used on all pipe threads in the hydraulic system.

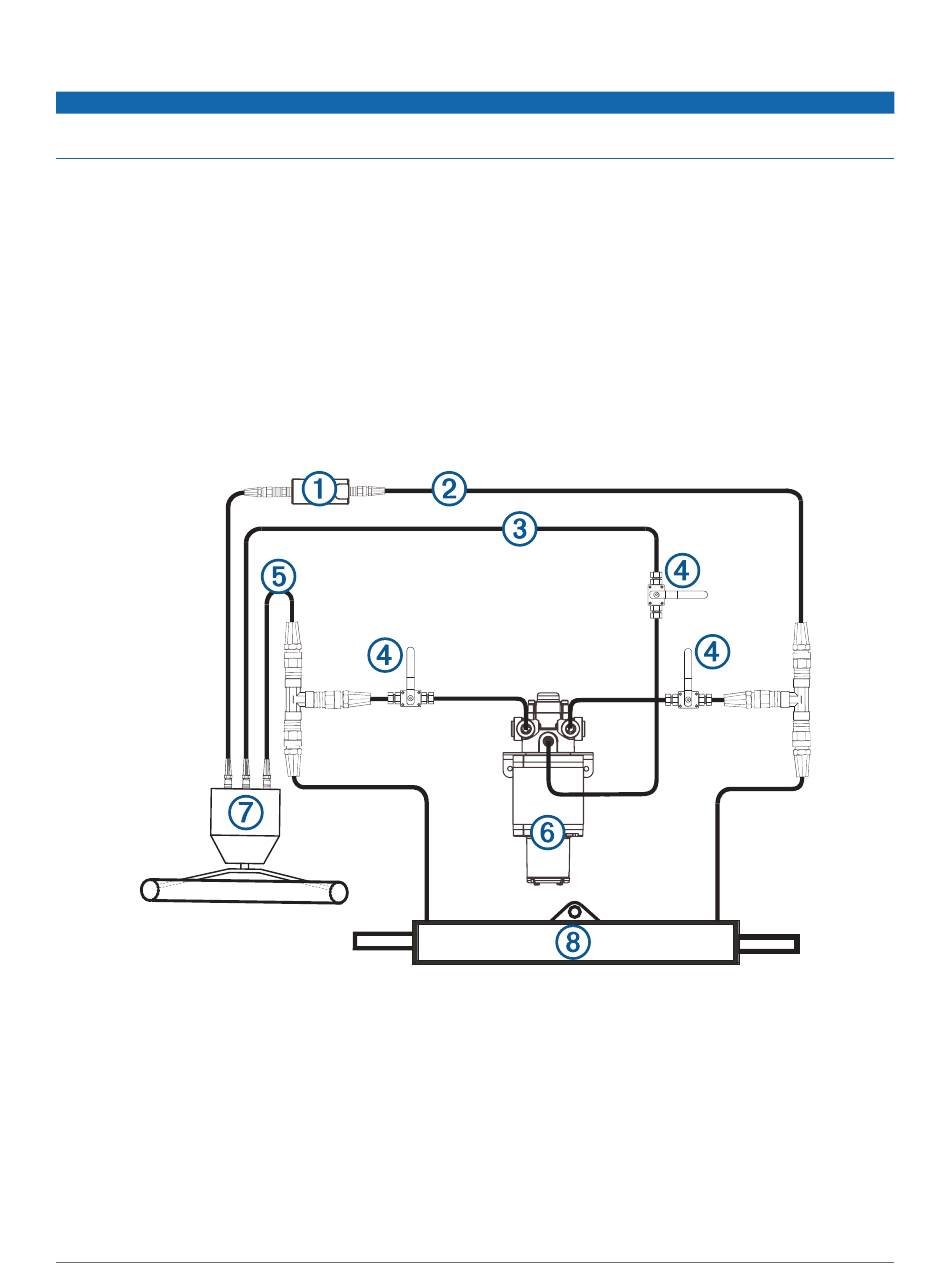

Single-Helm Layout
9
