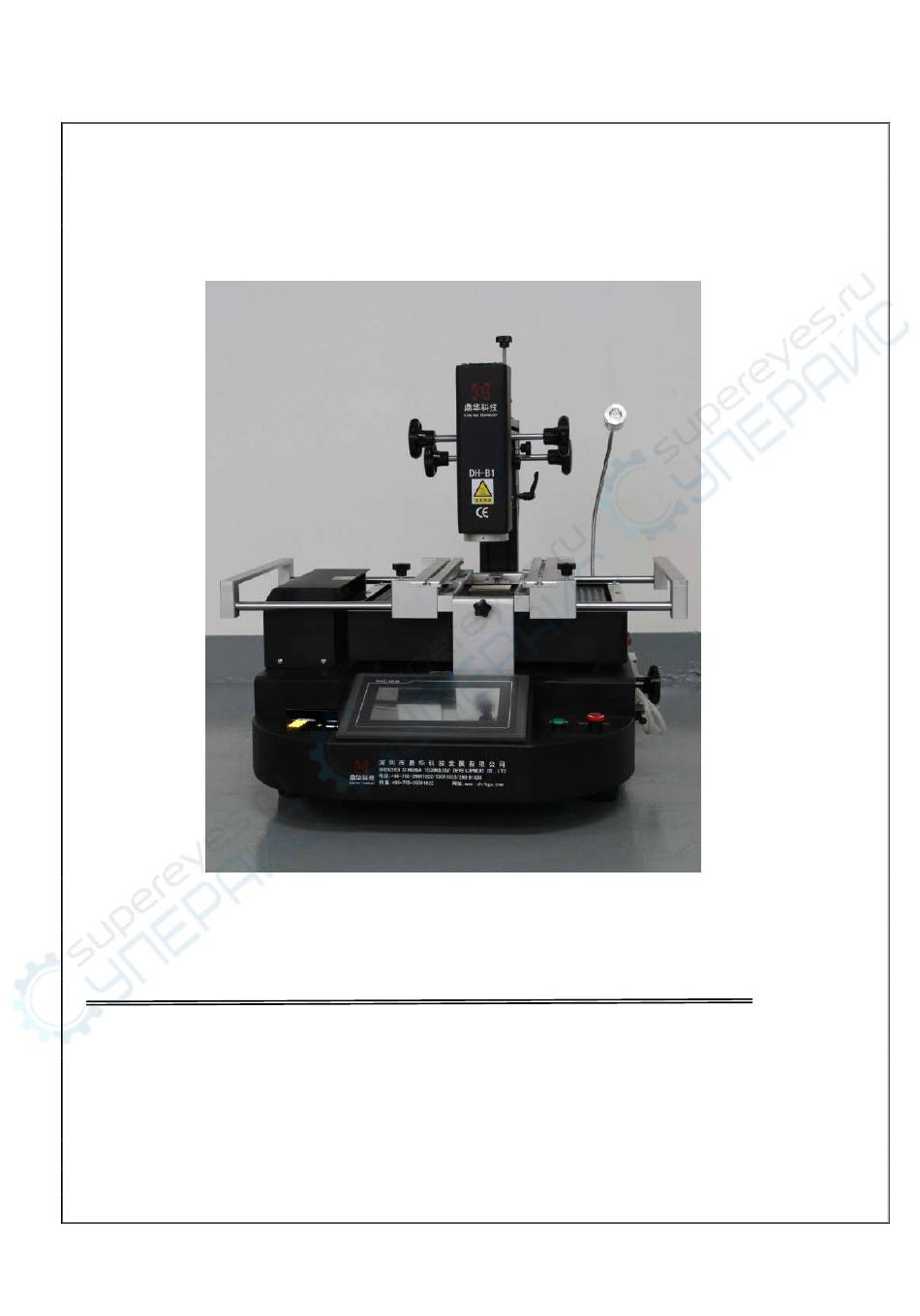

- Page 1 DH-B1 BGA Rework Station Manual ADD： 3rd floor, 46th building, Da Yangtian Industry District, Shajing Town, Bao‟an District, Shenzhen, China Website： www.sinobga.com Tel.： 86-755-29091633 290918 33 Fax： 86-55-29091622 E-mail:dh-smt@hotmail.com...
- Page 2 一、 Company profile Shenzhen Dinghua Technology & Development Co., Ltd is a professional manufacturer of BGA rework station, rework tools and associated equipments, engaging in design, production, sales and service.We commit us to make the professional equipment, provide the high quality a perfect service for the customer.
- Page 3 三 、 Safety Precautions of rework station 1、 Do not use fans or other devices directly to the repair station hair when it works, otherwise it will lead to negative differential heating plate surface , burn the workpiece. 2、 When turned on, high-temperature heating zone can not be any direct contact with the object , it may cause fire or explosion ,and the PCB workpiece should be placed on the PCB support shelves.
- Page 4 四 、Structures and specifications （一）Structures （二）Features Number Name Functions Use ways limit the lowest position of the Limit bar Rotate to the right place upper heating lock the upper heating of up and Tension adjustment knob Rotate the knob down , forward and back Forward and back adjustment Adjust the upper heating of Rotating the handle...
- Page 5 location Switch Turn on and off the machine Push the switch Bottom heater up and down Adjust the lower nozzle Rotating the handle handle distance from the PCB board Vacuum pen Remove the chips Click vacuum on the touch screen Emergency stop button Emergency stop Press the button...
- Page 6 Description： 1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary. 2.It uses precise K-type close circuit control and automatic temperature adjustment system, with PLC and temperature module to enable precision temperature control of ±...
- Page 7 五 Operations: 、 1、Preheat Preheat the PCB board and BGA chip, and the temperature of constant temperature oven is set at 80 ℃ -100 ℃, for 4-8 hours to remove internal moisture of the PCB and BGA, to prevent the burst phenomenon when heating.
- Page 8 (2) short circuit： When the ball reached the melting point,it is in a liquid state , if too long or too high temperature and pressure,it will destroy surface tension of solder balls and the supporting role, resulting in short-circuit phenomenon when reflows,the chips fall entirely on the PCB pads the , so we need to appropriately reduce the heating section of the third and fourth soldering temperature and time , or reduce the bottom of the preheat temperature.
- Page 9 六、Procedure setting and usage Introduction of touch screen operation 1. Switch on the power, the BGA rework station can connect with electricity.The home page of touch screen will appear the interface like the following picture, and then you can choose the language interface as required.
- Page 10 2 、 When we choose English, it will appear the working interface like the following picture. 3.Input password, then click to enter...
- Page 11 4.After logining password, you will get the following homepage 5.Introduction of the homepage 1)Start : Heating button 2)Heating finish: Show in the display frame of the heating condition after the heating is finished, Keep off Stop : Click this button the machine will stop heat Cooling : Switch button of the fan.
- Page 12 15)Current curve : Click to get in the current curve frames, the following picture shows the working temperature parameters after starting heating. They are target temperature, constant temperature time,and the speed of heating ( the speed of heating with ℃/SEC calculation).
- Page 13 curve does not meet to the needed welding temperature; please press the return button , returning to the main Interface. 16)Curve selection : Click you will get the following interface: In this interface, the temperature can be changed and saved. User can set the heating temperature, the constant time and the heat speed according to the requirements of the production process.
- Page 14 If have to input new parameter, click the parameter you will get the following interface. Input the parameter you need, press“ENTER” key .When temperature parameters Settings of these three temperature zones are finished, click “save curve” , then all...
- Page 15 parameters you have set are all saved. After finishing the temperature selection or temperature amendment, click , then click you will get the following interface: Click „Start‟ ,the whole station starts to heating,and the working curve is showing the current parameter，and it will also clear the previous curve showed on screen.The whole heating will complete until the upper setting temperature or the upper part of the heating rate is zero,and just the machine stops running,with the alarm ringing, if the cooling vacuum interface has been set up within the cooling and vacuum state, then these two output also work.if click...
- Page 16 When Click the „Back‟ , it wills pop-up function selection screen.it can choose the „English‟ interface. NOTE: When it alarm because of stoppage, all function buttons are in locked state! After managing the stoppage and starting up, it can recover to normal state! 七...
- Page 17 38*38 BGA welding temperature setting Welding Welding Preheating Constant Heating Reduction Upper heating Constant time Bottom heating Constant time preheating Constant time Speed rate 31*31 BGA welding temperature setting Welding Welding Preheating Constant Heating Reduction Upper heating Constant time Bottom heating Constant time...
- Page 18 Lead-free temperature curve welding 41*41 BGA welding temperature setting Welding Welding Preheating Constant Heating Reduction Upper heating Constant time Bottom heating Constant time preheating Constant time Speed rate 38*38 BGA welding temperature setting Welding Welding Preheating Constant Heating Reduction Upper heating Constant time...
- Page 19 31*31 BGA welding temperature setting Welding Welding Preheating Constant Heating Reduction Upper heating Constant time Bottom heating Constant time preheating Constant time Speed rate Above is lead-free type BGA reference temperature When remove the BGA chip, the temperature reduction is set at 0. 八...
-
Page 20: Concluding Remarks
unusual, it should stop the BGA chip installation and test the temperature, and it has to be adjusted properly before welding, otherwise it will be damage the BGA chip or PCB board. 6. The machine surface needs to be clean at regular time, especially the infrared heating board. Avoid the dirt stay on the board, because the dirt can lead to heat radiation un-normally, bad welding quality and shorten the using time of infrared heating element. -
Page 21: Packing List
Packing list: Item specification Unit BGA rework station DH-B1 Vacuum pen Vacuum sucker Instruction manual DH-B1 COPY Hot-air nozzle 31*31,38*38,41*4 1,55*55, 34*34 Universal fixture Plum knob Supporting screw Temperature sensor...
