Important safety instructions:
Please read carefully all instructions before assembly.
For your safety and ease, assembly by two or more adults is recommended.
Keep instructions for future use.
Pre-assembly:
Do not discard any content until assembly is complete to avoid accidentally discarding small parts or hardware.
Take out all parts and hardware from box.
Parts List
Description
Item
REST + SEAT
P1
+ CUSHION
FRONT LEGS
P2
LEFT&RIGHT
P3
BACK LEGS
Hardware List
Item
H1
ALLEN KEY 4 MM
H2
BOLT M6 X 50 MM
H3
BOLT M6 X 30 MM
H4
SPRING WASHER 6 X 11 X 2
H5
FLAT WASHER 6 X 16 X 2
H6
WOODEN PLUG
Assembly Procedures:
Step 1. Assemble the chair on a flat, soft surface such as a carpet or cloth to prevent scratching the finish.
ASSEMBLY INSTRUCTIONS

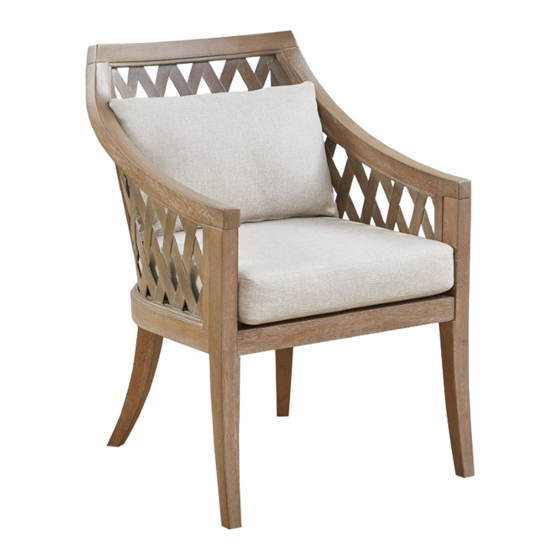

Description: E&E - SAN PEDRO ACCENT CHAIR
Description
QTY
1
2
2
QTY
12
12
Legs and
hardware
package
Page 1 of 2
1
8
4
4
Advertisement
Table of Contents
Related Manuals for Martha Stewart E&E - SAN PEDRO ACCENT CHAIR
Summary of Contents for Martha Stewart E&E - SAN PEDRO ACCENT CHAIR
- Page 1 ASSEMBLY INSTRUCTIONS Description: E&E - SAN PEDRO ACCENT CHAIR Important safety instructions: Please read carefully all instructions before assembly. For your safety and ease, assembly by two or more adults is recommended. Keep instructions for future use. Pre-assembly: Do not discard any content until assembly is complete to avoid accidentally discarding small parts or hardware. Take out all parts and hardware from box.
- Page 2 ASSEMBLY INSTRUCTIONS Description: E&E - SAN PEDRO ACCENT CHAIR Step 2: Attach back legs (P3) to chair top (P1) using Lock washers (H1), Spring washer (H4), Flat washers (H5) and 50 MM Bolt (H2),next attach the front legs (P2) using Lock washers (H1), Spring washer (H4), Flat washers (H5), 50 MM Bolt (H2), and 30 MM Bolt (H3), then cover the hole with wood plug (H6) as shown below.
