Introduction to the Flex Amplifiers
The Flex amplifiers provide audio signals to system speaker circuits. The Flex Amplifier is offered
Overview
in two versions, the Flex-35 and the Flex-50. Functionally, both amplifiers behave identically but
the Flex-50 is capable of supplying an additional 15W of power over the 35W version. The
maximum available output from the Flex-50 and Flex-35 is 50W and 35W, respectively. The load
may be configured in any way so long as the maximum power output limit is not exceeded. Both
amplifiers provide dual-channel capability with internal backup functionality. (All Flex Amplifiers
described in this publication are listed in the next two sections.)
Flex Amplifiers Not
Note: The following Product IDs or PIDs (example: 4100-1212/1261) are not
Compatible with
CSNAC Option
•
•
•
•
FAIL SWITCH (SW2)
hold switch until OUT
For LED descriptions, see the "LED Indications" section at the end of this document.
compatible with the Constant Supervision Notification Appliance Circuit (CSNAC)
option.
4100-1212/1261 Analog Flex-50/Flex-35 Amp (25 VRMS)
4100-1213/1262 Analog Flex-50/Flex-35 Amp (70 VRMS)
4100-1226/1263 Digital Flex-50/Flex-35 Amp (25 VRMS)
4100-1227/1264 Digital Flex-50/Flex-35 Amp (70 VRMS)
SPEAKER CIRCUIT TERMINAL BLOCK (TB1)
POWER STAGE 2
and
POWER STAGE 1
FAIL SWITCH
(SW1):
To test backup audio
switching, press and
TBL LED illuminates
(20 seconds).
COMM TROUBLE
LED (LED1)

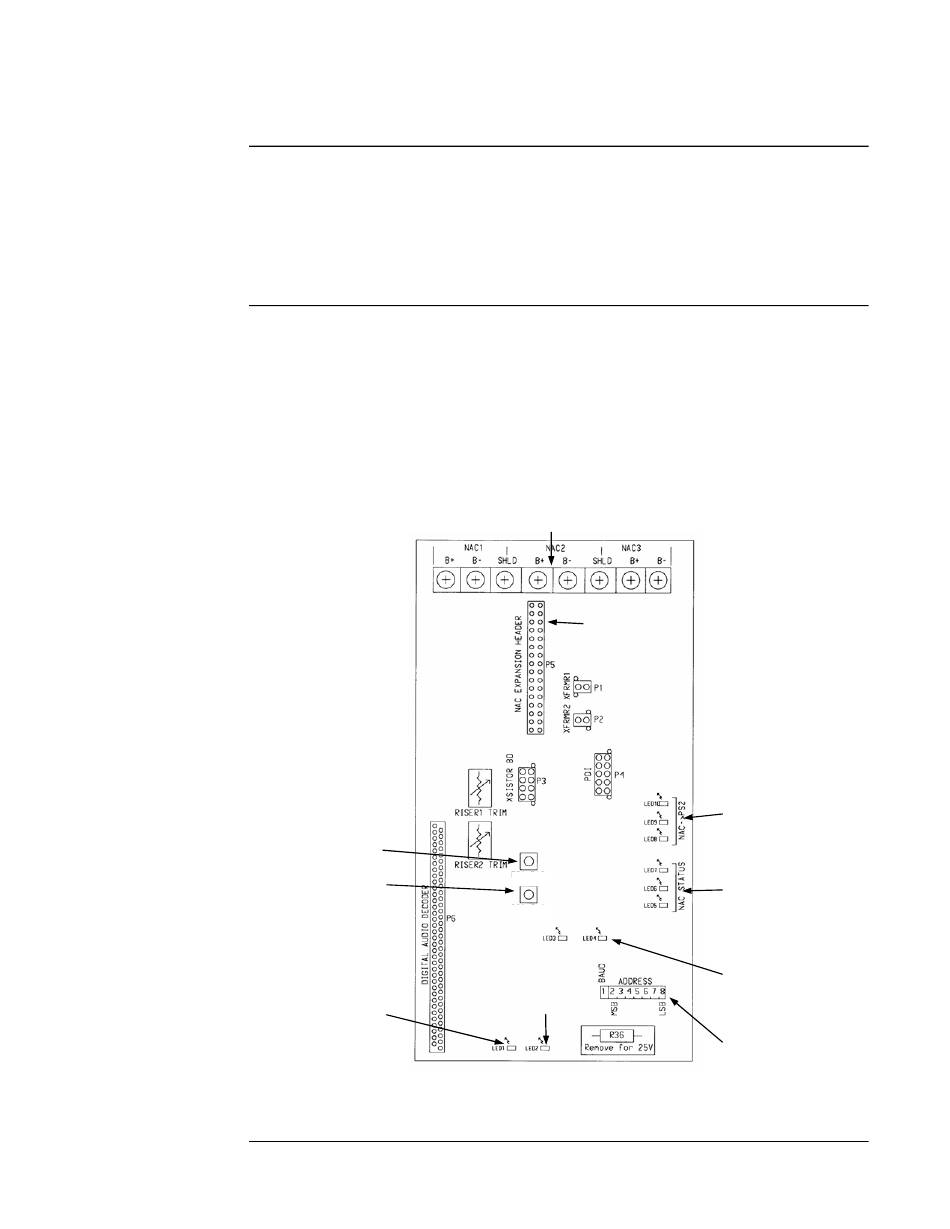

Figure 1. Flex Amplifier without CSNAC Compatibility
firealarmresources.com
XNAC/CLASS A
ADAPTER
HEADER (P5)
PS2_FAIL
PS1_FAIL
INPUT TROUBLE
LED (LED2)
3
NAC/POWER
STAGE LEDs
(LED 8-10): LED ON
when NAC is routed
to PS2
NAC STATUS
LEDs (LED 5-7): LED
ON when NAC is ON
or in trouble
OUTPUT 1
TROUBLE LED
(LED4)
ADDRESS/BAUD
RATE DIP SWITCH
(SW3)
