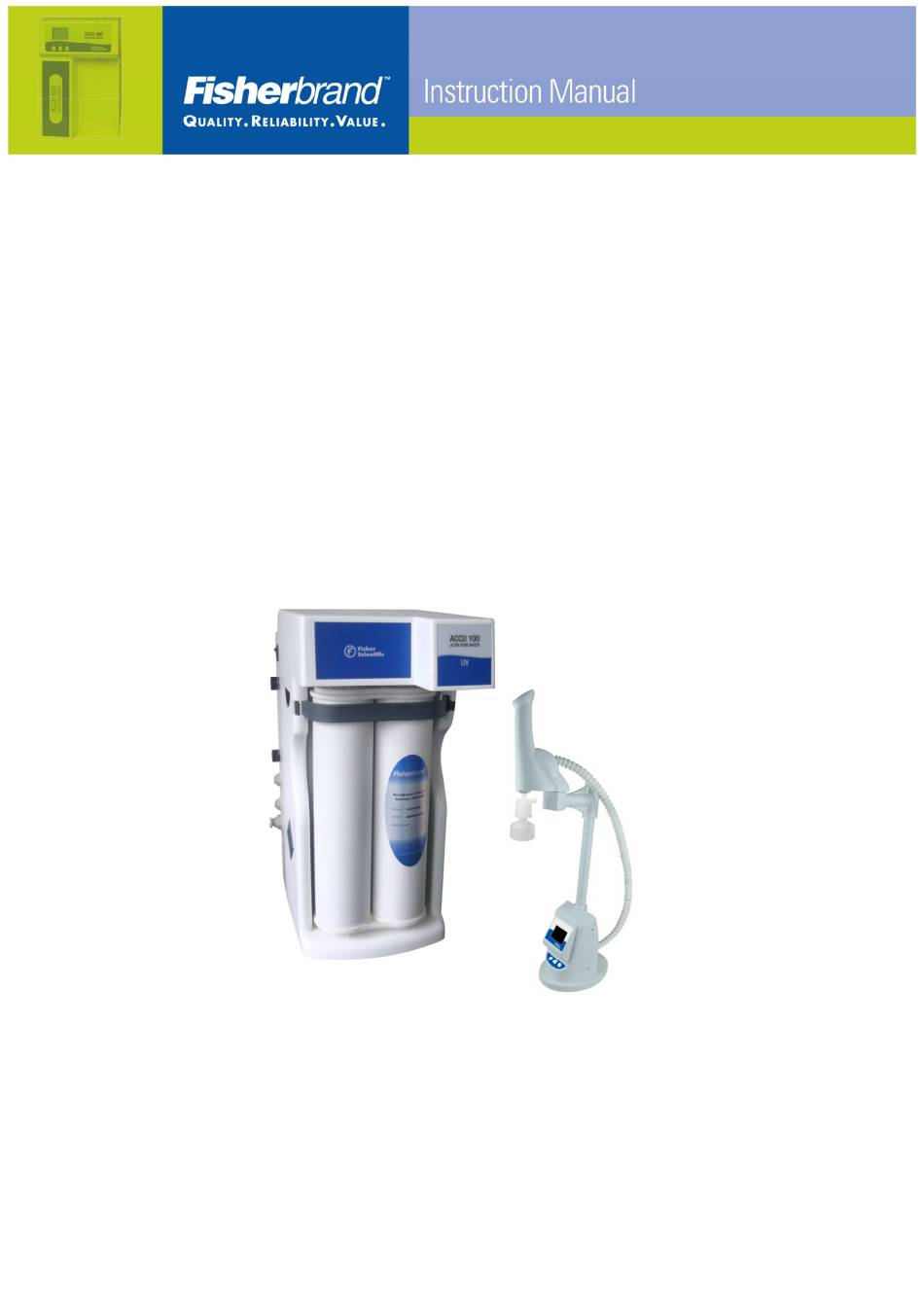

Accu100
Ultrapure Water System
With Remote Dispenser
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accu100 and is the answer not in the manual?

Questions and answers

Related Manuals for Fisherbrand Accu100

Summary of Contents for Fisherbrand Accu100

  • Page 1 Accu100 Ultrapure Water System With Remote Dispenser USER MANUAL...
  • Page 2 Notice The Accu100 system is manufactured in a facility whose quality management system is approved by an accredited registering body to the ISO9001 Quality System Standards. DECLARATION OF CONFORMITY EUROPEAN UNION EC DIRECTIVES AND FCC RULES Directive 2006/95/EC FCC Part 15 Class B...
  • Page 3 This Manual is Applicable to the Following Accu100 Models Accu100 UV Ultrapure Water System with Dispenser, 15409759 100-240 VAC www.eu.fishersci.com/fisherbrand...

  • Page 4: Table Of Contents

    4.2 Messages for Maintenance ................. 26 4.3 Replacing the Ultrapure Pack and the Final Filter ..........28 4.4 Replacing the UV Lamp ..................31 5 BASIC TROUBLESHOOTING ................34 6 PARTS AND ORDER INFORMATION ..............35 7 WARRANTY INFORMATION ................37 www.eu.fishersci.com/fisherbrand...

  • Page 5: Introduction

    1) Use with a properly grounded electrical outlet of correct voltage and current handling capacity. 2) Replace fuses with those of the same type and rating. 3) Disconnect from the power supply prior to maintenance and service. 4) Refer servicing to qualified personnel. www.eu.fishersci.com/fisherbrand...

  • Page 6: Product Features

    1.1 Product Features The Accu100 Ultrapure Water System produces ultrapure water from reverse osmosis (RO), distillation or deionized water. Ultrapure water from the Accu100 system meets or exceeds quality standards of ASTM, CAP, CLSI and ISO Type I water standards.

  • Page 7: Main Applications

    Particles in Ultrapure Water < 1 /mL (with a 0.2 µm final filter or final (> 0.2 µm) ultrafilter) <0. 1 cfu/mL (with a 0.2 µm final filter or final Microorganism ultrafilter) Pyrogen Content < 0.001 EU/mL (with a final ultrafiltration) www.eu.fishersci.com/fisherbrand...

  • Page 8: Installation

    Scissors or a box opener to open packages and cut water tubing 2.2 Items Included The Accu100 system comes with the following items in the package. The following items are packed separately. These items need to be installed at initial...

  • Page 9: Structure And Flow Diagrams

    Out to dispenser Purification cartridge In from dispenser Feed Water inlet 2.3.2 Remote Dispenser Diagram Dispense button UP outlet Final filter Tubing to dispenser head LCD display Data port Out to system Control panel Spare port In from system www.eu.fishersci.com/fisherbrand...
  • Page 10 In Ready mode, press 1 to start water recirculation. Press 1 and 2 simultaneously to enter user menu. In Ready mode, press 2 to start volumetric dispensing setting. Press 1 and 2 simultaneously to enter user menu. In Ready mode, press 3 to release system pressure. www.eu.fishersci.com/fisherbrand...
  • Page 11 2.3.4 Accu100 System Water Flow Diagram The water flow path for the Accu100 and Accu100 UV models are described below. Each component is explained in the legend. Feed Water Booster Pump AccuQuatro U Pack Feed Water solenoid valve Resistivity Cell...

  • Page 12: Installation

    Collet (push in) Please follow the instruction below to remove the stoppers Insert the tweezers to the gap between the stopper and the collet. Pinch the tweezers and push it as the picture indicated to remove the stoppers. www.eu.fishersci.com/fisherbrand...
  • Page 13 1) Make sure the power switch is OFF at "O" position. 2) Insert one end of the power cord into socket on the left side of the Accu100 system. Power cord 3) Plug the other end of the power cord into power outlet.
  • Page 14 Blue caps 2.4.3.2 Open the lock bar at the front of the system. 2.4.3.3 Remove the two blue stoppers at the water inlet/outlet inside the cabinet. Stoppers 2.4.3.4 Wet the O-rings on the cartridge with purified water. O Rings www.eu.fishersci.com/fisherbrand...
  • Page 15 Lock the front lock bar by inserting the flexible buckle to the groove. If the bar cannot be locked, reseat the cartridge all the way in, and then lock the bar again till you hear a “click” sound. 2.4.4 Installing the Remote Dispenser www.eu.fishersci.com/fisherbrand...
  • Page 16 (IN and TO POU) . (OUT and FROM POU). Note: Do not install final filter at this stage. It will be installed after system start-up and degassing. End of System Installation Proceed to "System Start Up and Operation" www.eu.fishersci.com/fisherbrand...

  • Page 17: System Start Up And Operation

    Prior to system start up, use the table below to make sure all parts have been installed and connected, and quality of feed water meets minimal requirements. Check List Results Feed Water quality – purified water Water temperature: 5 - 45 Feed Water connection Power cord connection AccuQuatro U Pack cartridge installed Dispenser installed www.eu.fishersci.com/fisherbrand...

  • Page 18: System Start Up And Setting

    Product mode In Product mode Product Press Dispense button again to stop 18.2 MΩ.cm dispensing. System enter Recirculation mode. In Recirculation mode Recirculation Press Dispense button to dispense water. 18.2 MΩ.cm Press to enter Ready mode www.eu.fishersci.com/fisherbrand...
  • Page 19 3.2.2.4 1) Wait till no more gas bubbles come out Product of the tubing and water resistivity reaches 18.2 MΩ·cm @ 25 18.2 MΩ.cm 2) Press DISPENSE button to stop degassing. 3) Screw off the adapter www.eu.fishersci.com/fisherbrand...
  • Page 20 Loosen the knob on the top of the final filter for degassing. Press Dispense button to drive air out of the final filter, then press the Dispense button again to stop dispensing 3.2.3.4 Tighten the knob on the top of the final filter. Installation is completed www.eu.fishersci.com/fisherbrand...
  • Page 21 FILTER: 360 DAYS In user menu, press to move cursor UV: 720DAYS FLOW: 1.50 L/min to UV and press to reset UV lamp UNIT: MΩ.cm TIME: 2014-11-27 09:21:27 life. Newly replaced UV lamp shows 720 LANGUAGE/语言：ENGLISH days life. SERIAL NO: S4PPAL3701 www.eu.fishersci.com/fisherbrand...

  • Page 22: Routine Operation

    18.2 MΩ·cm. c) Press the Dispense button to dispense water. d) Press the Dispense button again to Recirculation stop dispensing, system enter 18.2 Recirculation mode automatically. MΩ.cm e) System enter Ready mode after Ready 180 s automatically. www.eu.fishersci.com/fisherbrand...

  • Page 23: Volumetric Dispensing

    In Ready mode, press enter volumetric dispensing mode. Volumetric 1.0 L b) Press to set the desired amount of water. Volumetric 2.0 L c) Press to dispense water. d) System return to Recirculation after Recirculation dispensing. 18.2 MΩ.cm www.eu.fishersci.com/fisherbrand...

  • Page 24: Maintenance

    FLOW: 1.50 L/min to UV and press to reset UL lamp UNIT: MΩ.cm TIME: 2014-11-27 09:21:27 life. Newly replaced UV lamp shows 720 LANGUAGE/语言：ENGLISH SERIAL NO: S4PPAL3701 days life. Reset UV lamp life every time the UV lamp is replaced. www.eu.fishersci.com/fisherbrand...
  • Page 25 LANGUAGE/语言：ENGLISH increase numbers. SERIAL NO: S4PPAL3701 4.1.7 Setting Language PACK: 360 DAYS FILTER: 360 DAYS Press to move cursor to UV: 720DAYS FLOW: 1.50 L/min LANUGAGE. Press to switch UNIT: MΩ.cm TIME: 2014-11-27 09:21:27 language. LANGUAGE/语言：ENGLISH SERIAL NO: S4PPAL3701 www.eu.fishersci.com/fisherbrand...

  • Page 26: Messages For Maintenance

    EXCH. UV LAMP Yellow countdown. UV lamp has reached their expected service life and need to be replaced Product water resistivity is below PRODUCT < S.P. the standard point. Product water temperature exceeds TEMP > S.P. standard range. www.eu.fishersci.com/fisherbrand...
  • Page 27 Increase in TOC 12 months Reduce in flow rate Remove Final Filter bacteria and Flow rate is less than When needed particles 0.5 liter per minute Remove ions Reduce in resistivity of U Pack 12 months and organics ultrapure water www.eu.fishersci.com/fisherbrand...

  • Page 28: Replacing The Ultrapure Pack And The Final Filter

    Connect the 1/4 inch PE tubing to adapter and leave another side into drain. c) Press to enter Pressure Relief mode. d) Press to switch system to Ready mode after tubing water drain off. www.eu.fishersci.com/fisherbrand...
  • Page 29 Replace AccuQuatro U Pack as described in 2.4.3 Press button to put system into recirculation, check if there is any leakage, reinstall the cartridge if leaking g) Degassing the System as described in 3.2.2. www.eu.fishersci.com/fisherbrand...
  • Page 30 FILTER: 360 DAYS UV: 720DAYS Press to move cursor to FILTER, FLOW: 1.50 L/min UNIT: MΩ.cm press to reset final filter life. Newly TIME: 2014-11-27 09:21:27 LANGUAGE/语言：ENGLISH replaced final filter shows 360 days life. SERIAL NO: S4PPAL3701 www.eu.fishersci.com/fisherbrand...

  • Page 31: Replacing The Uv Lamp

    In order to protect the UV lamp from getting contamination through hands, gloves must be worn while handling the UV lamp by hands. Gloves are included in the UV lamp package. a) Switch system to Ready mode. Ready b) Switch off the system power, Unplug the power cord. www.eu.fishersci.com/fisherbrand...
  • Page 32 UV lamp. Carefully insert the new UV lamp into its chamber. When about 2/3 of the lamp is inserted, hold the UV lamp and connect it to the ballast cable (4-pin connector) as shown in the picture, and then gently insert the www.eu.fishersci.com/fisherbrand...
  • Page 33 UV: 720DAYS FLOW: 1.50 L/min Press to move cursor to UV, UNIT: MΩ.cm press to reset UV lamp life. TIME: 2014-11-27 09:21:27 LANGUAGE/语言：ENGLISH Newly replaced UV lamp shows 720 SERIAL NO: S4PPAL3701 days life. www.eu.fishersci.com/fisherbrand...

  • Page 34: Basic Troubleshooting

    Pump failure Contact a ULS agent Final filter clogged Replace final filter Low water flow rate System internal water Contact a ULS agent flow clogged If problem occurring is not listed in the chart above, please contact Fisher Scientific. www.eu.fishersci.com/fisherbrand...

  • Page 35: Parts And Order Information

    6 PARTS AND ORDER INFORMATION Catalogue. No. Description 15409759 Accu100 UV Ultrapure Water System, 100-240V 15419759 Remote dispenser with sensor 15479709 AccuQuatro U Pack Cartridge (RO Feed) AccuQuatro U Pack Cartridge kit with a 0.2 µm Capsule 15489709 Filter (RO Feed)
  • Page 36 Other Maintenance Spare Parts ontact Fisher Scientific for ordering information: Main control panel (100-240V, 50 Hz) Recirculation Pump Resistivity Sensor Commonly Used Connector Package UV lamp ballast Power Supply Fuse 3/8" PE tubing (5 meters) 1/4” PE tubing (5 meters) www.eu.fishersci.com/fisherbrand...

  • Page 37: Warranty Information

    Thermo Fisher Scientific assumes no responsibility for any errors that may appear in this manual. The plant's quality management system where this Accu100 water system was manufactured has passed the ISO9001:2008 quality management system certification. System Limited Warranty...
