Idex Knight DoseTech DMS Instruction Manual

Detergent management system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
0901048 Rev. C

Advertisement

Table of Contents
loading

Related Manuals for Idex Knight DoseTech DMS

Summary of Contents for Idex Knight DoseTech DMS

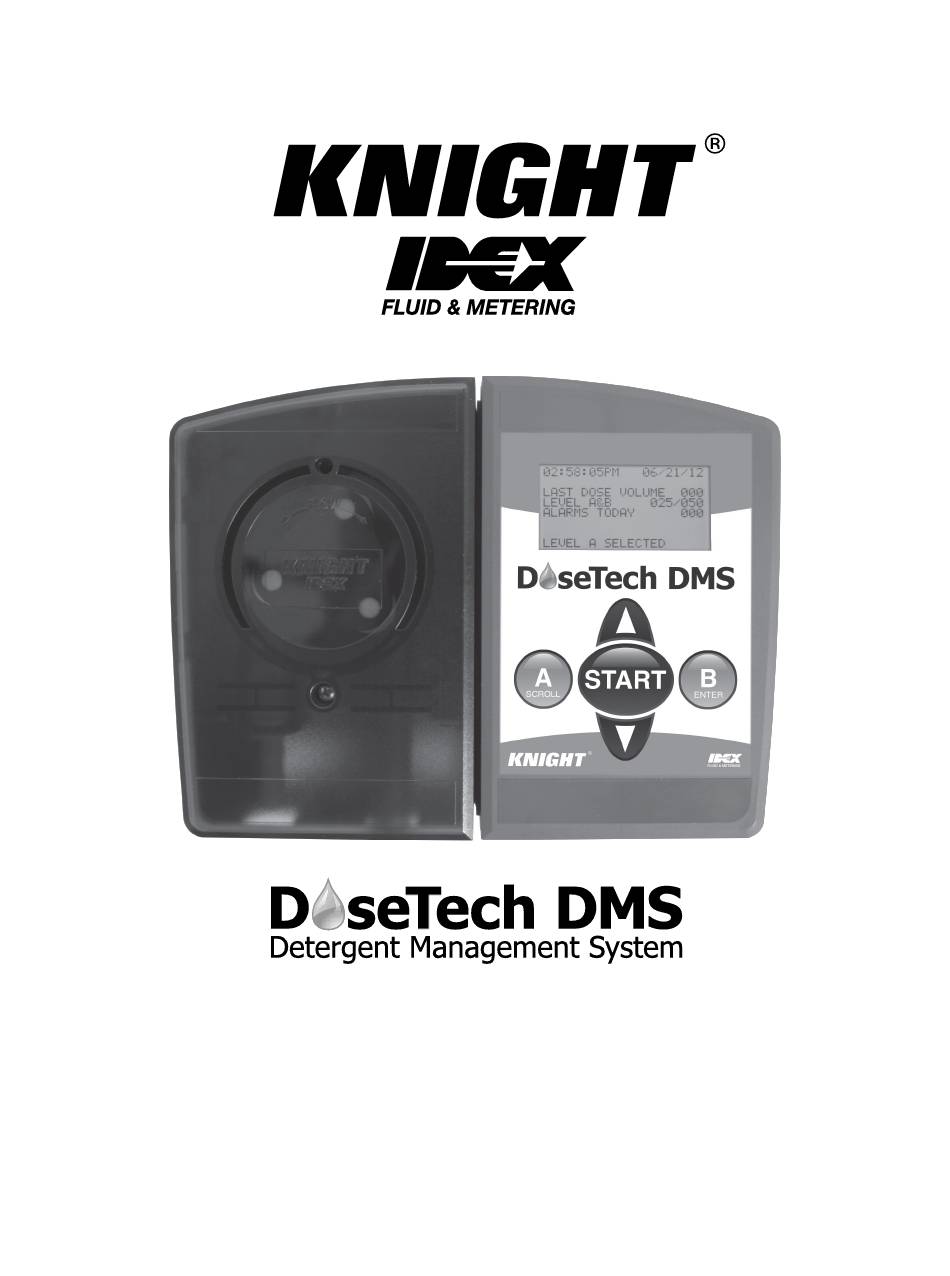

  • Page 1 Instruction Manual 0901048 Rev. C...

  • Page 2: Table Of Contents

    Table of Contents Introduction Squeeze Tube Replacement System Control Panel Replacement Parts Specifications Parts Diagram Accessory Kit Checklist Wiring Diagram Installation Procedures EC - Declaration of Conformity Programming Mounting Template Operations Warranty Information Troubleshooting Knight Locations Introduction The DoseTech DMS detergent management system is a dispensing system used to transfer precise amounts of pre-soak chemicals into a pre-wash sink.

  • Page 3: Specifications

    DoseTech DMS Specifications 6” H x 7” W x 6-1/4” D Dimensions 15.2 cm x 17.8 cm x 15.9 cm Case Rating IP-64 Dosing Pump Flow Rate 250 ml/min. Wall Mount Type, In: 110-240 VAC 1A 50-60 Hz Power Supply / Voltage Out: 24 VDC 1.67A Chemical Compatibility—Dose Pump Industry standard enzymatic and other detergents.

  • Page 4: Installation Procedures

    Installation Procedures Tools you will need: drill and drill bit, Phillips screw driver, needle nose pliers, wire cutters, or something similar to cut tubing and cable ties. To begin the installation of the DoseTech DMS, remove all of the accessories from the included accessory kit.
  • Page 5 11. Route the dispenser discharge tube and temperature probe to the back of the sink where it will be mounted just above the bottom (1-3”), depending on the total volume of the sink fill. Trim the excess tubing from the dispenser discharge tube once you have verified the length.

  • Page 6: Programming

    Programming DoseTechDMS Description of Screen Display Power on the unit. USB VERSION Firmware Ver IXXX For about 2 seconds you will see the screen to the right. If the system is equipped with a USB interface, the current USB version will be displayed. 17:05:56AM 08/15/13 LAST DOSE VOLUME...
  • Page 7 Description of Screen Display To specify date ranges for a report, press the SCROLL button to scroll between month/date/year, and the UP and ENTER DATE RANGE DOWN buttons to cycle through the digits. TO GET REPORTS If no report is necessary, scrolling through the dates is not necessary. FROM 08-01-13 Press ENTER to advance to the next screen...
  • Page 8 Description of Screen Display PRESS SCROLL TO SELECT WHICH UNITS TO USE To change the units of measure, use the SCROLL button to toggle between Fahrenheit/Gallons and Celsius/Liter. Press ENTER to advance to the next screen. PRESS SCROLL TO SELECT WHICH UNITS TO USE PRESS SCROLL TO SELECT LOW LEVEL STATE...
  • Page 9 Description of Screen Display ENTER DATE RANGE To calibrate the pump, place the dispensing tube into a 100-200 milliliter graduated cylinder and press the UP button. The pump will stop on its own after dispensing approximately 100 milliliters of detergent and the display TO GET REPORTS will automatically change to the Entered Captured screen.
  • Page 10 Description of Screen Display PRESS SCROLL AND DOWN TO To clear the usage report data memory, press the SCROLL button and DOWN button at the same time. A second CLEAR USAGE DATA MEMORY screen will appear asking you “Are you sure?” Press the SCROLL button and DOWN button at the same time to confirm.

  • Page 11: Operations

    Operating DoseTech DMS Description of Screen Display Power on the unit. USB Version For about 2 seconds you will see the screen to the right. Firmware Ver IXXX If the system is equipped with a USB interface, the current USB version will be displayed. If the dispenser has been idle for an extended period of time, the default is an image as shown to the right.

  • Page 12: Troubleshooting

    DoseTech DMS Runtime Alerts Description of Screen Display 17:05:56AM 08/15/13 LAST DOSE VOLUME If TEMP is flashing on the blue runtime screen, the temperature of the water is not within the predefined range. Adjust the water temperature before dispensing. LEVELS A&B 025/050 ALARMS TODAY TEMP OUT OF RANGE...
  • Page 13 DoseTech DMS Report Example Dispenser S/N: Report Date: 8/21/2013 From Date: 8/13/2013 To Date: 8/21/2013 Events Date Time Volume Temperature 8/21/2013 8:42:24AM 8/21/2013 8:42:46AM 8/21/2013 8:48:38AM Out of Chem. 8/21/2013 8:49:21AM Out of Chem. 8/21/2013 8:49:54AM Out of Chem. 8/21/2013 8:50:33AM 8/21/2013 8:50:49AM...

  • Page 14: Squeeze Tube Replacement

    Squeeze Tube Replacement Removal and Installation of Front Faceplate Removal or installation of the pump faceplate for maintenance purposes should ONLY be performed by qualified and trained personnel who are considered the Responsible Body for the system. The facility operators of the system should NEVER attempt removal or installation of the pump faceplate and should be made aware of this by the Responsible Body Access to internal parts are for Responsible Body (i.e.

  • Page 15: Replacement Parts

    DoseTech DMS Replacement Parts Item No. Part No. Qty. Description 7010211-LC Gear Motor w Cap, 100 RPM 1600265 Body, Pump, 500 Series 7320195 Phillips Pan Head #10 Screw, Stainless Steel 7503450 3-Lobe Roller Assembly, Yellow Rollers 7018050 T-50E, Squeeze Tube, Elastic, 1ft. 6049024 Retaining Ring for Pump Tube Barb 6049025...

  • Page 16: Parts Diagram

    DoseTech DMS Parts Diagram Page 16 0901048 Rev. C...

  • Page 17: Wiring Diagram

    DoseTech DMS Wiring Diagram 0901048 Rev. C Page 17...

  • Page 18: Ec - Declaration Of Conformity

    Page 18 0901048 Rev. C...
  • Page 19 Notes 0901048 Rev. C Page 19...
  • Page 20 Notes Page 20 0901048 Rev. C...
  • Page 21 Notes 0901048 Rev. C Page 21...

  • Page 22: Mounting Template

    DoseTech DMS Mounting Template Page 22 0901048 Rev. C...
  • Page 23 0901048 Rev. C Page 23...

  • Page 24: Warranty Information

    Disclaimer Knight LLC does not accept responsibility for the mishandling, misuse, or non-performance of the described items when used for purposes other than those specified in the instructions. For hazardous materials information consult label, MSDS, or Knight LLC. Knight products are not for use in potentially explosive environments. Any use of our equipment in such an environment is at the risk of the user, Knight does not accept any liability in such circumstances.
  • Page 25 0901048 Rev. C Page 25...
  • Page 26 Knight Headquarters 20531 Crescent Bay Dr. Lake Forest, California USA Toll Free Knight Canada Knight Europe Knight Australia Knight N. Asia Knight S. Asia Tel: 949.595.4800 Tel: 800.854.3764 Tel: 905.542.2333 Tel: 44.1323.514855 Tel: 61.02.9352.1801 Tel: 82.2.3481.6683 Tel: 65.91700984 Fax: 949.595.4801 Fax: 800.752.9518 Fax: 905.542.1536 Fax: 44.1323514828...
