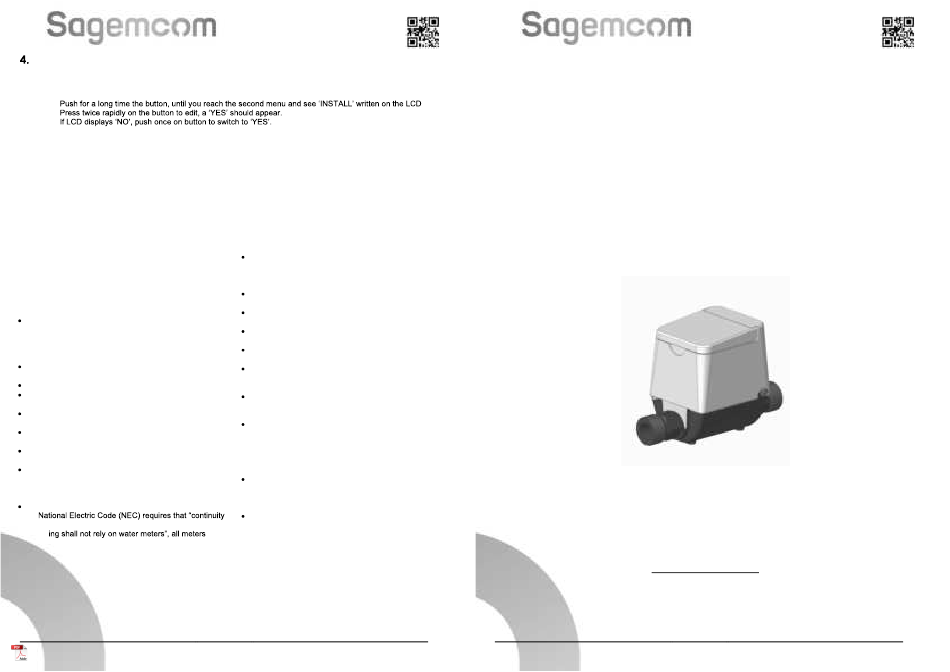

SAGEMCOM SICONIA WATER UM20 Installation Manual

NETWORK INSTALLATION
In order to attach the Water Meter on a network / pairing device:
Activate the network or the companion device to accept the pairing
1. On the water meter :
a.
b.
c.
d. Press twice rapidly on the button to accept the installation process
e. The Water Meter will send an installation request message for pairing.
f. The Water Meter LCD will display a blinking antenna symbol.
2. On the network or the companion device :
a. Check that the pairing info are received and that it corresponds to the Water meter, and accept the pairing
request. In a network registration, this is automatic if provisionning of the Water meter was already done into
the system.
b. On the next installation request message send by the water meter, the network or companion device should
respond with an installation success message to confirm installation.
3. The Water meter antenna symbol stops blinking.
Safety instructions
All installations of product must be done according to safety
regulations and rules. The instructions detailed in this guide
must be carefully followed in order to prevent from any form
of danger for the installation, for the installer or for the end
user.
The following safety instructions must be observed at all
time:
The installation and commissioning must only be per-
formed by a qualified and trained installer, authorized
to work on domestic water installations. This Installer
must carefully read and scrupulously follow this meter
user manual.
The installation must be conform to the standard for
drinking water installation.
Local safety regulations must be observed.
The installation altitude wrt to the sea level must be
lower than 2000m.
The product must be protected from shock and vibra-
tion.
Any inappropriate behaviour not described in this doc-
ument can lead to injuries or damage of the meter.
No part inside this product is intended to be replacea-
ble.
If an installed product is removed from installation and
intended to shipped through air transportation, the ra-
dio function must be disabled using NFC or other in-
terface.
According to AWWA, even if section 250.53(D) of the
of the grounding path or bonding connection to interior
pip
should be installed with permanently ground-strapped
strap-ping.
2-Sagemcom Internal Information - No outside communication without authorization from appropriate Management
This document and the information contained are th e property of Sagemcom
3000499645-01
Installation instructions
The installation instructions are the following:
The product must not be exposed to mechanical stress
during installation. The intake and outcome piping
must be aligned and match the product pipe dimen-
sion.
The meter can be installed on plastic or metallic pipe,
after a general closing tap.
During installation of the meter, the water supply must
be cut and the remaining water flush out.
Do not hold the product casing but the pipe during the
installation screwing.
Always used new gaskets for mounting the product
onto the piping.
The torque applied to screw of the product must be
higher than 15 N.m and not overpass 30 N.m whatever
the thread and pipe material.
The water supply must be re-opened smoothly, ena-
bling air bubble to be removed without mechanical im-
pact.
The provisioning onto the facility radio network can be
done using the QR code information written on the
product. Be aware that this provisioning over the net-
work could required some time to be effective . The
product cannot register on the network until this provi-
sioning is over.
Once water flows, the radio attachment process starts;
and it indicates the radio link quality to the network.
When the antenna icon stops blicking, it shows that the
network attachment succeed
If radio link after installation is too poor (no bar next to
the antenna symbol) and if product is so-equipped, an
external antenna must be installed in a higher place,
more likely to receive radio signals and then connected
to the product. It should be activated using the optical
flag interface or BLE.
Page 4 WM Installation Manual (EN) 1.0

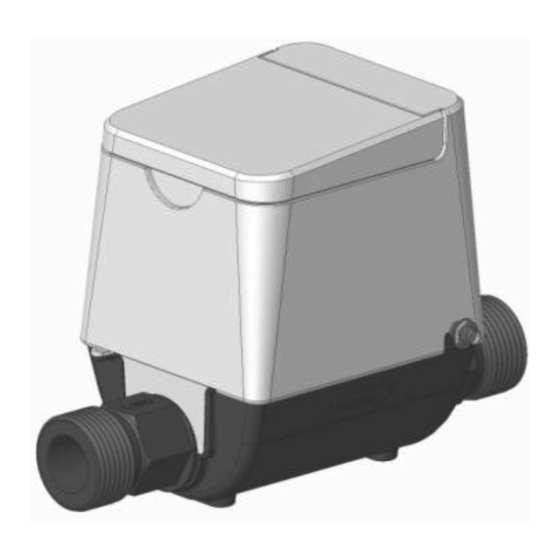

Installation Manual
SICONIA WATER
Smart METERs
With LTE LPWAN radio
Optical Port (optional) &
BLE interface (optional)
Sagemcom Broadband SAS
www.sagemcom.com
2-Sagemcom Internal Information - No outside communication without authorization from appropriate Management
This document and the information contained are th e property of Sagemcom
3000499645-01
UM20
Page 1 WM Installation Manual (EN) 1.0
