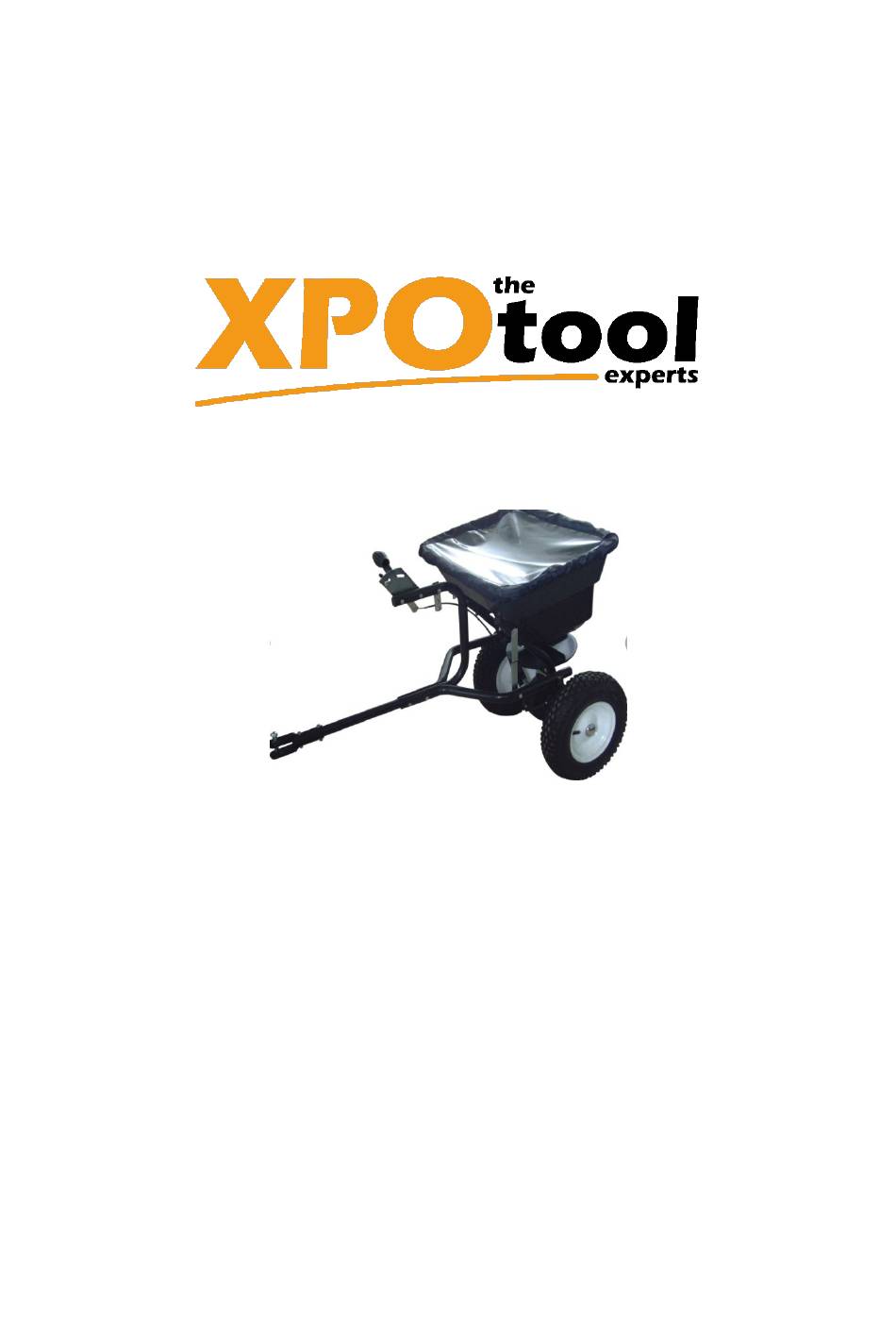

Instruction manual
Spreader GT1507
60910
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Summary of Contents for XPOtool GT1507
- Page 1 Instruction manual Spreader GT1507 60910 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler Germany E-mail: service@wiltec.info Phone: +49 2403 55592–0 Fax: (+49 2403 55592–15) https://www.XPOtool.com Item 60910 Page 2 The Tool Experts 04 2022-1...
- Page 3 Before operating a vehicle on a slope (hill), you must respect the safety instructions of the user’s manual of the vehicle concerning safety on slopes. Do not drive on steep slopes! Open the packaging and pouch, remove all parts and check for completeness. https://www.XPOtool.com Item 60910 Page 3...
- Page 4 R pin Assembly instructions step Mount the driving wheel (1) onto the drive and axle construction (3). 2. Insert the M4×20 fillister head screw (2) through the driving wheel and axle. https://www.XPOtool.com Item 60910 Page 4 The Tool Experts 04 2022-1...
- Page 5 Note that the bore on the driving axle must be on this side when assembling. № Name № Name Right wheel frame assembly Wheel frame assembly Driving and axle Big washer ⌀6 Left wheel frame assembly Bolt M6×40 Counter nut M6 Hopper https://www.XPOtool.com Item 60910 Page 5 The Tool Experts 04 2022-1...
- Page 6 2. Then mount the connecting rod to the wheel frame with a M6×60 screw (7) and M6 counter nut and fix the connecting plate to the connecting rod (1) with a M6×35 screw (6). Note: The screws and nuts do not need to be tightened. https://www.XPOtool.com Item 60910 Page 6...
- Page 7 3. Now mount the left wheel construction to the left axle inserting a ⌀16 washer, and mount the end cap on the left axle with a wooden or rubber mallet. Set the inner axle box into the outer axle box, mak- ing sure that they are securely seated. https://www.XPOtool.com Item 60910 Page 7 The Tool Experts...
- Page 8 (4). 2. Now tighten all screws and bolts mounted from the first step on, but do not tighten them too strongly, then insert the R pin (2) to the front end for securing. https://www.XPOtool.com Item 60910 Page 8...
- Page 9 Untighten and re- move both bolts. Re-insert them af- ter modifying the adjustments. The drive wheel should turn in the direction shown while the spreader in pushed forward. https://www.XPOtool.com Item 60910 Page 9 The Tool Experts 04 2022-1...
- Page 10 Exploded view https://www.XPOtool.com Item 60910 Page 10 The Tool Experts 04 2022-1...
- Page 11 26 Tow-bar connecting rod 52 Spring washer ⌀6 Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 60910 Page 11 The Tool Experts 04 2022-1...
