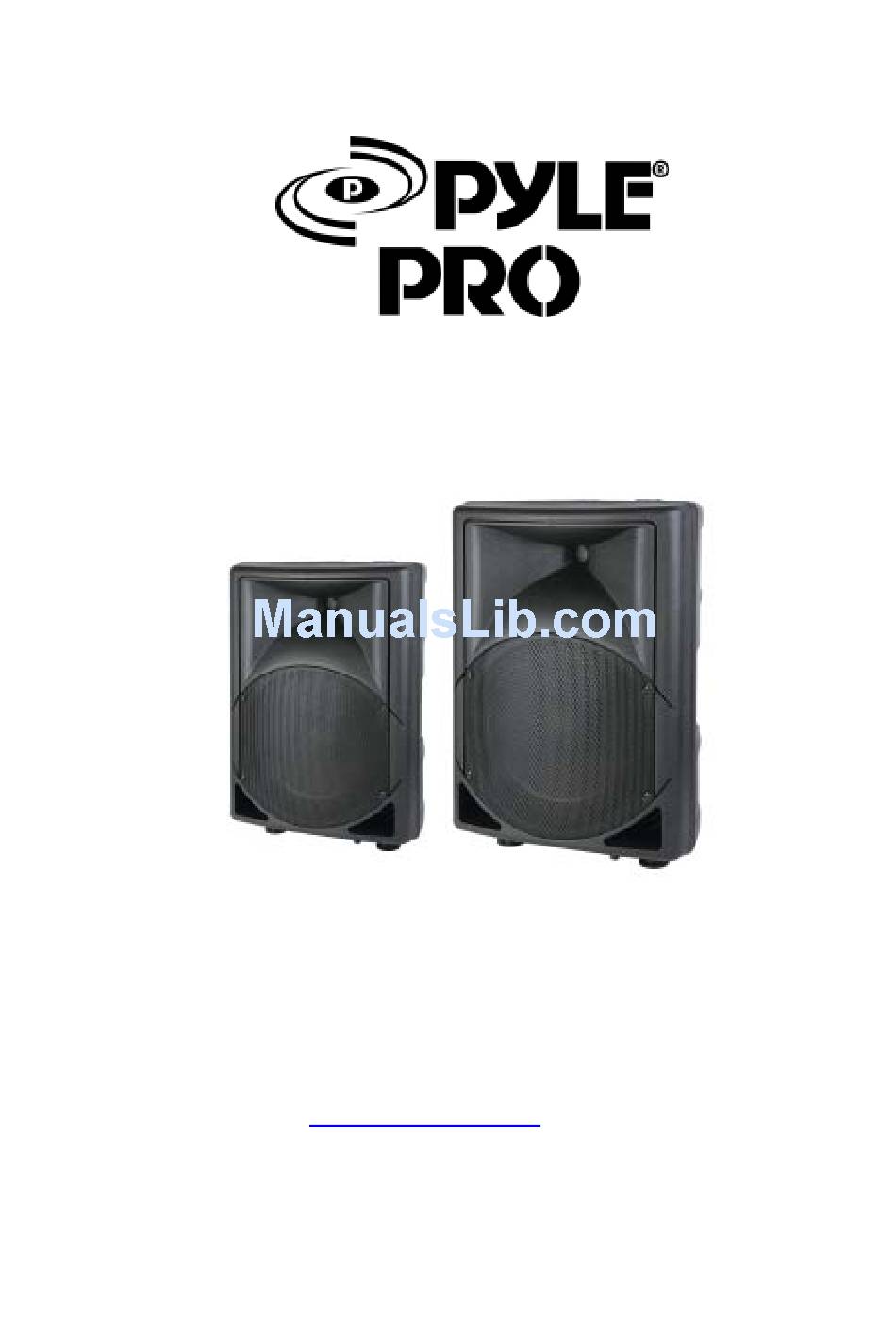

- Page 1 USER’S MANUAL PPHP121 PPHP151 PPHP120A PPHP150A PPHP123M PPHP153M www.pyleaudio.com...
- Page 2 Before connecting the speaker, make sure the system is off and the controls on the minimum level. On the contrary the system could damage 1. - Plug the power cable to the Ac outlet and to the system and to the speaker 2. - Plug the Microphone in the “MIC” input 3.- Connect (CD, DECK, MP3, DVD, etc) on “LINE IN”...
- Page 3 · Crossover Frequency: 3.5K Hz · 35mm Speaker Stand Mount ·Dimensions: W16.6” x D12.8” x H 23.5” PPHP120A: 12” 800 Watt Powered 2 Way Plastic Molded Speaker Cabinet ·12" Woofer ·1.4" Titanium Compression Driver ·XLR and 1/4" Mic Inputs ...
- Page 4 · 35mm Speaker Stand Mount · 110/220 Voltage Selectable · Dimensions: W18.3” x D15.8” x H 27.2” PPHP153M: 15” 1200 Watt Powered 2 Way Plastic Molded Speaker Cabinet w/Built in · 15" Woofer · 1.7" Titanium Compression Driver ·...
- Page 5 Use this jack to connect another amplifier or even another powered speaker cabinet in cascade, using a 6,3mm connector 7b) Signal output Use this jack to connect other amplifier or even another powered speaker cabinet in cascade, using a Cannon connector 8) AC 110/220 Voltage Selectable...
- Page 6 10) On/ off power switch Press to power on /off the speaker box 11a) Button Use it to power On/Off MP3 player controller 11b) USB connector Use it to plug in a USB device with MP3 file. 11c) MP3 control Use this control to set the volume level of the MP3.
- Page 7 PPHP150A BACK VIEW PPHP120A BACK VIEW...
-
Page 8: Electrical Safety
Electrical Safety All products are fitted with a detachable power cord (supplied) which connects to the AC Mains and the back panel of the loudspeaker. The power cord has an IEC female connector on One end and a male mains connector on the other end. This cord is supplied specifically to Accommodate the different worldwide safety and electrical code requirements.
