USER'S MANUAL
PPHP121
PPHP151
PPHP120A
PPHP150A
PPHP123M
PPHP153M
www.pyleaudio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPHP121 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pyle Pro PPHP121

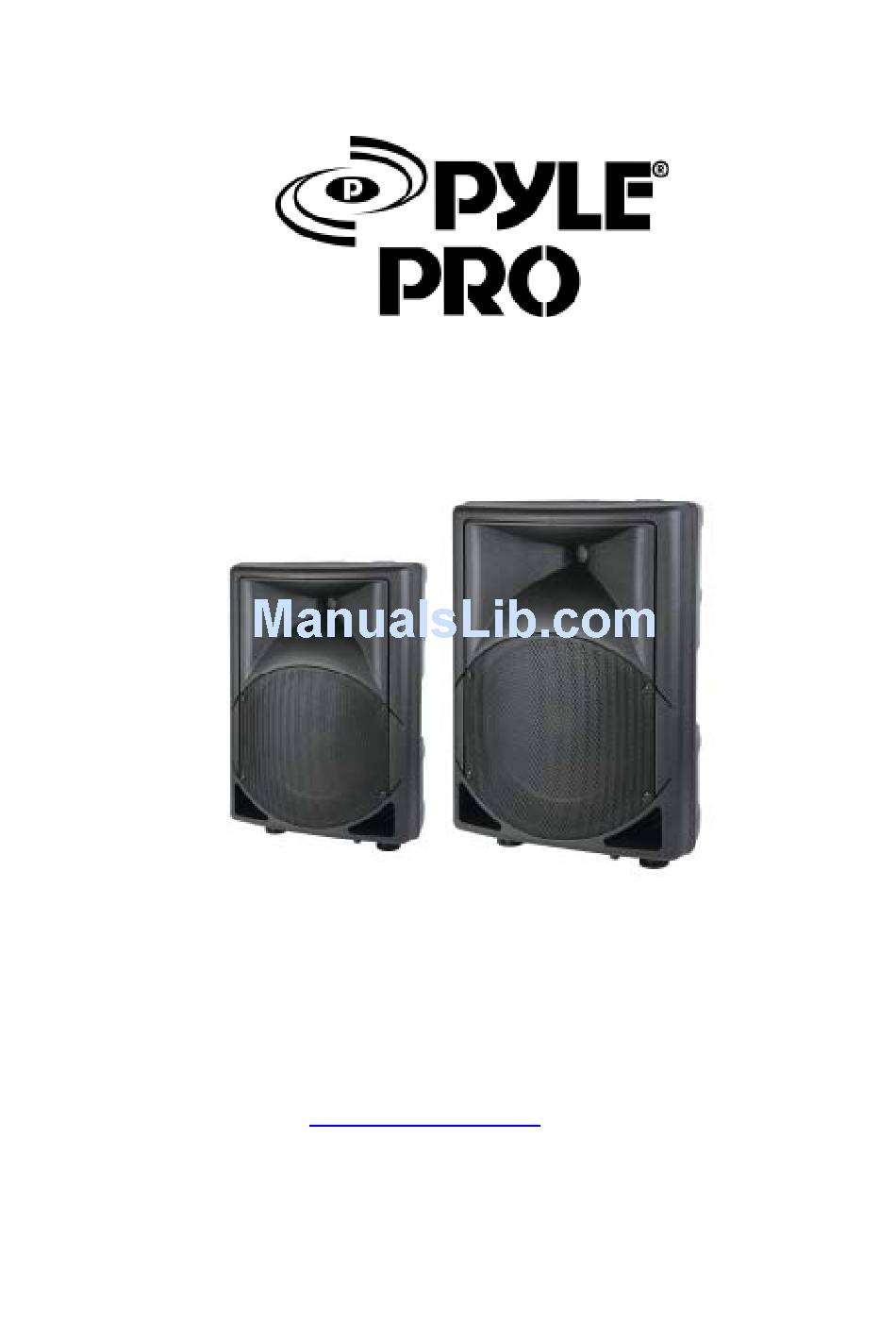

  • Page 1 USER’S MANUAL PPHP121 PPHP151 PPHP120A PPHP150A PPHP123M PPHP153M www.pyleaudio.com...
  • Page 2 Before using your new Speaker System Please review the following instructions, for the safety and investment. INSTRUCTIONS Before connecting the speaker, make sure the system is off and the controls on the minimum level. On the contrary the system could damage 1.
  • Page 3 FEATURES: PPHP121: 12” 800 Watt 2 Way Plastic Molded Speaker Cabinet ¡ ¡ ·12'' Woofer ¡ ¡ · 1.4'' Titanium Compression Driver ¡ ¡ · 1 /4” and Speakon Jacks input ¡ ¡ · Frequency response: 50-20 KHz ¡ ¡ · Power: 800 Watts ¡...
  • Page 4 PPHP151: 15” 1200 Watt 2 Way Plastic Molded Speaker Cabinet ¡ ¡ ·15'' Woofer ¡ ¡ ·1.75'' Titanium Compression Driver ¡ ¡ ·1/4'' and Speakon Jacks input ¡ ¡ · Frequency response: 40-22 KHz ¡ ¡ · Power: 1200 Watts ¡...
  • Page 5 CONTROLS 1a) Microphone 1 input Allows you to connect a microphone with a 6,3mm connector 1b) Balanced microphone 1 input Connector for a balanced microphone 1c) Microphone control Is Used control to set the volume level of the microphone 1 (6,3mm or balanced) 2a) Microphone 1 input Allows you to connect a microphone with a 6,3mm connector...
  • Page 6 Use it to plug in a USB device with MP3 file. 11c) MP3 control Use this control to set the volume level of the MP3. 12) MP3 player controller 13)1/4” jack self-lock 14) speakon jack PPHP123M/PPHP153M BACK VIEW PPHP121/PPHP151 BACK VIEW...
  • Page 7 PPHP150A BACK VIEW PPHP120A BACK VIEW...
  • Page 8 Electrical Safety All products are fitted with a detachable power cord (supplied) which connects to the AC Mains and the back panel of the loudspeaker. The power cord has an IEC female connector on One end and a male mains connector on the other end. This cord is supplied specifically to Accommodate the different worldwide safety and electrical code requirements.
