CASE-IH ADAPTOR CABLE (TRACTOR)
· CONNECT AMS CAMERAS TO YOUR AFS 1200 DISPLAY
(Up to 2 cameras)
AFS 1200*
The adaptor cable CASE TRACTOR3 is suitable to the AFS 1200 display on CASE IH : Magnum AFS
tractors. You can connect up to 2 cameras with this cable
• CONNECTION TO THE TRACTOR
The video input is located at the rear of the tractor
Display settings and parameters: please refer to the manufacturer's manual.
AMS Diffusion - Rue des Galeries - ZA du Chevalement - 59286 Roost Warendin - FRANCE
RCS DOUAI A 451 360 382 - CODE APE 4531Z - SIRET 451 360 382 00035 - TVA FR 55 451 360 382 - V02-102018
USER'S MANUAL

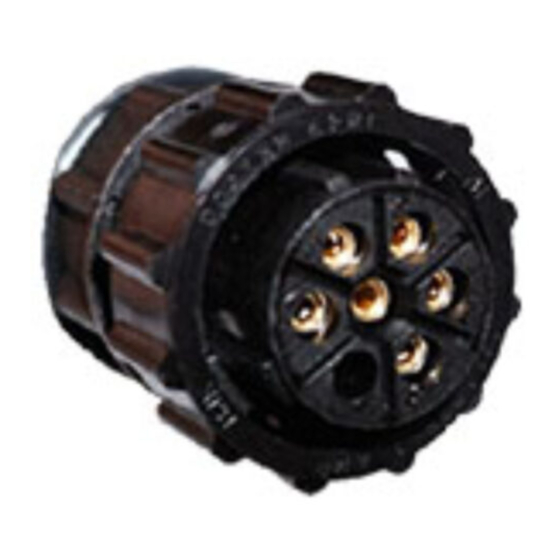

Adaptor cable
CASE TRACTOR3
* The terminal is equipped with 4 video inputs. By default, 2 cameras are installed on the tractor. You can therefore add up to two cameras.
*Camera and integrated monitor are not included. All the AMS cameras are compatible with this adaptor cable (except from wireless cameras)
Adaptor cable
Item code : VICAM-AMS-CASE-TRACTOR3
AMS
Camera
*
Advertisement
Table of Contents
Related Manuals for AMS VICAM-AMS-CASE-TRACTOR3
Summary of Contents for AMS VICAM-AMS-CASE-TRACTOR3
- Page 1 * The terminal is equipped with 4 video inputs. By default, 2 cameras are installed on the tractor. You can therefore add up to two cameras. *Camera and integrated monitor are not included. All the AMS cameras are compatible with this adaptor cable (except from wireless cameras)
- Page 2 AMS Diffusion - Rue des Galeries - ZA du Chevalement - 59286 Roost Warendin - FRANCE RCS DOUAI A 451 360 382 - CODE APE 4531Z - SIRET 451 360 382 00035 - TVA FR 55 451 360 382 - V02-102018...
