USER'S MANUAL
Adaptor cable
SAFETY & COMFORT
Item code : VICAM-AMS-FT-COMBINE
FENDT ADAPTOR CABLE (HARVESTER)
· CONNECT AMS CAMERAS TO YOUR VARIOTRONIC MONITOR
Adaptor cable
FT COMBINE
Monitor
AMS
VARIOTRONIC
Camera
*
1 video input
This adaptor cable enables the use of the VARIOTRONIC monitor for Fendt harvester with an AMS camera.

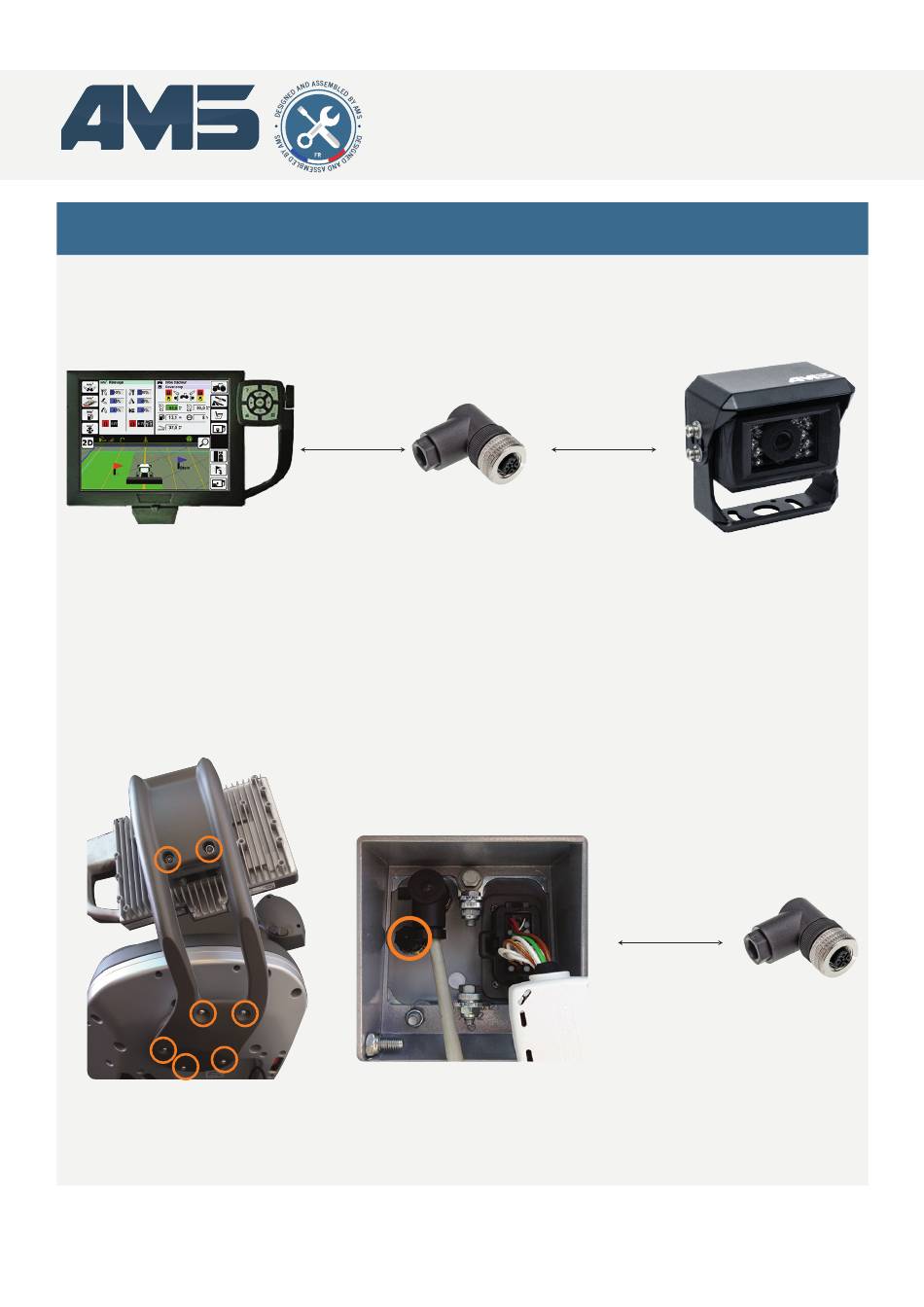

• CONNECTION TO THE SCREEN
1.
2.
Adaptor cable
FT COMBINE
(5 way male connector)
Remove the cap from the video input 2 to
Remove the cover from the back of the
locate the 5-way female connector
monitor (remove the 7 screws)
* Camera and original monitor are not included. All the AMS cameras are compatible with this adaptor cable (except wireless camera)
