SAFETY & COMFORT

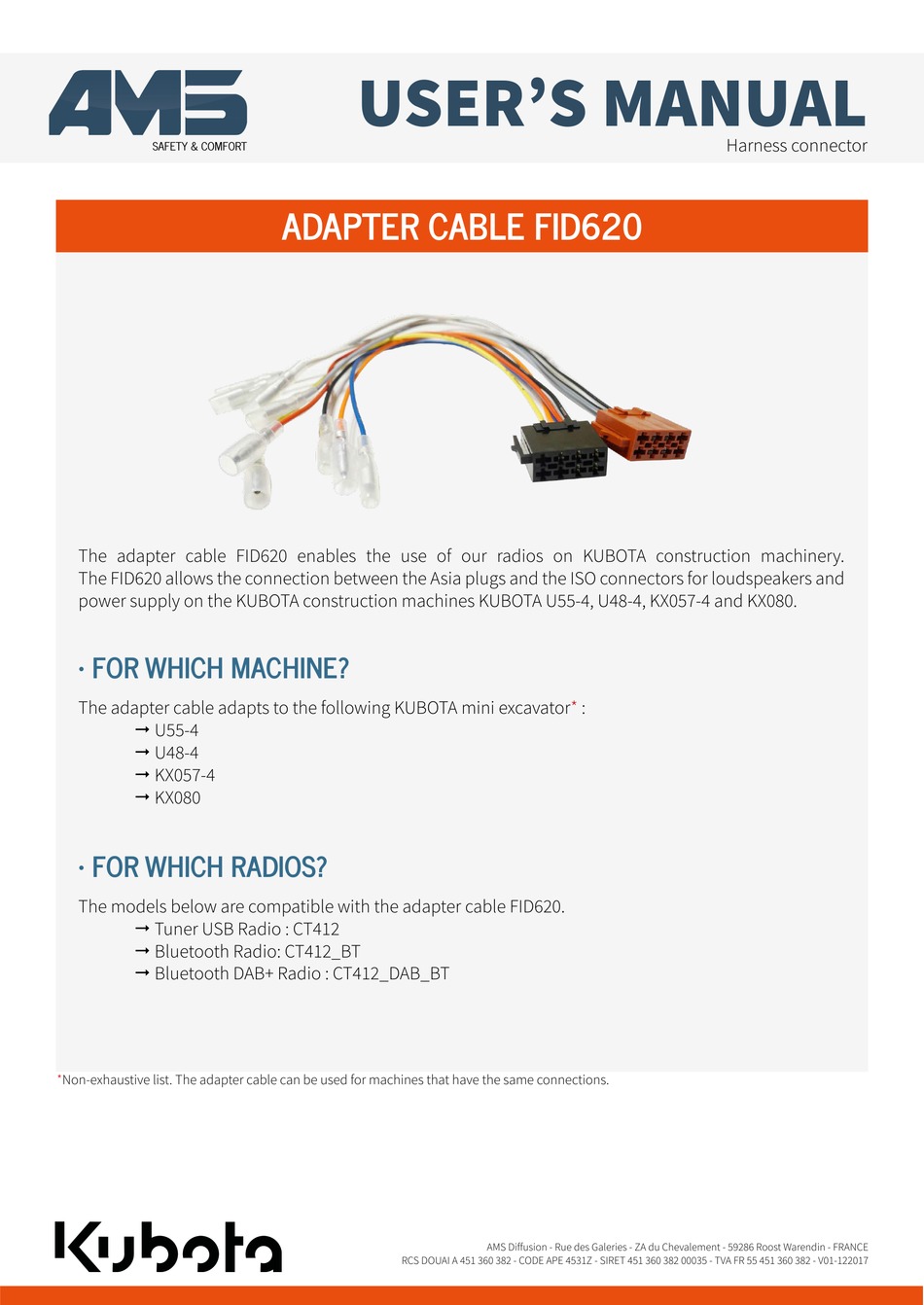

The adapter cable FID620 enables the use of our radios on KUBOTA construction machinery.

The FID620 allows the connection between the Asia plugs and the ISO connectors for loudspeakers and

power supply on the KUBOTA construction machines KUBOTA U55-4, U48-4, KX057-4 and KX080.

• FOR WHICH MACHINE?

The adapter cable adapts to the following KUBOTA mini

 U55-4

 U48-4

 KX057-4

 KX080

The models below are compatible with the adapter cable FID620.

 Tuner USB Radio : CT412

 Bluetooth Radio: CT412_BT

 Bluetooth DAB+ Radio : CT412_DAB_BT

*Non-exhaustive list. The adapter cable can be used for machines that have the same connections.

USER'S MANUAL

ADAPTER CABLE FID620

RCS DOUAI A 451 360 382 - CODE APE 4531Z - SIRET 451 360 382 00035 - TVA FR 55 451 360 382 - V01-122017

excavator*

AMS Diffusion - Rue des Galeries - ZA du Chevalement - 59286 Roost Warendin - FRANCE

Harness connector

Table of Contents

Do you have a question about the FID620 and is the answer not in the manual?

Page 1 The adapter cable FID620 enables the use of our radios on KUBOTA construction machinery. The FID620 allows the connection between the Asia plugs and the ISO connectors for loudspeakers and power supply on the KUBOTA construction machines KUBOTA U55-4, U48-4, KX057-4 and KX080.
Page 2 The Carlight function enables the illumination of the button when the traffic lights are switched on. To enable this feature on the CT412BT, connect the orange cable to the blue cable of the FID620 adapter cable. 3 - Wiring the speakers...
Page 3 AMS Diffusion - Rue des Galeries - ZA du Chevalement - 59286 Roost Warendin - FRANCE RCS DOUAI A 451 360 382 - CODE APE 4531Z - SIRET 451 360 382 00035 - TVA FR 55 451 360 382 - V01-122017...
Page 4 AMS Diffusion - Rue des Galeries - ZA du Chevalement - 59286 Roost Warendin - FRANCE RCS DOUAI A 451 360 382 - CODE APE 4531Z - SIRET 451 360 382 00035 - TVA FR 55 451 360 382 - V01-122017...
