HOME MERIDIAN DS-D040001-290 Assembly Instructions

A B
x1 Headboard panel
x1 Footboard
x1 Pied de lit
x1 Panel de cabecera x1 Pie de cama
H I
x8 Center legs
x8 Pattes centrales
x8 Patas centrales
N O
X8 Nuts
X8
Tuercas
X8
When placing furniture on non-carpeted flooring, HMI recommends the use of floor protection such as an area rug or furniture pads. Area rugs and padding not included with purchase.
Antes de colocar el mueble en un suelo sin alfombra, HMI recomienda protegerlo con un tapete o almohadillas, por ejemplo. Tapete y almohadillas no incluidos.
Si el envio a Mexico:
IMPORTADO POR: IMPORTADORA PRIMEX.S.A.DE C.V.BLVD MAGNOCENTRO NO. 4,
SAN FERNANDO LA HERRADURA, HUIXQUILUCAN, ESTADO DE MEXICO, C.P. 52765
R.F.C. IPR-930907-S70 TEL. 5-5246-5500

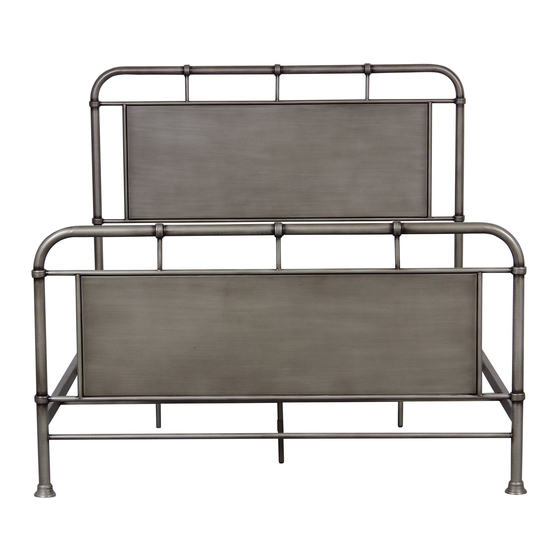

Metal Bed Assembly instructions
C C1
x1 Side Rail x1 Side Rail
x1 Traverse x1 Traverse
J
x1 Allen Key
x1 Llave Allen
P
X1 Open wrench
X1
Llave de boca
X1
D D1
x1 Side Rail x1 Side Rail
x1 Traverse x1 Traverse
K L
x34 Small Bolts 1/4" x8 Large Bolts 1/4"
x34 Petit boulons 1/4"
x8 Gros boulons 1/4"
x34
1/4" x8 Perno grandes 1/4"
Q
X4 Brackets
Supports
X4
Soportes
X4
E F
x2 Slats x1 Slat
x2 Lattes x1 Latte
M
x4 Foots
x4 Pieds
x4 Pies
G
x2 Legs extension
x2 Rallonges de patte
x2 Extensiones de patas
