Summary of Contents for HOME MERIDIAN DS-A278-016-349

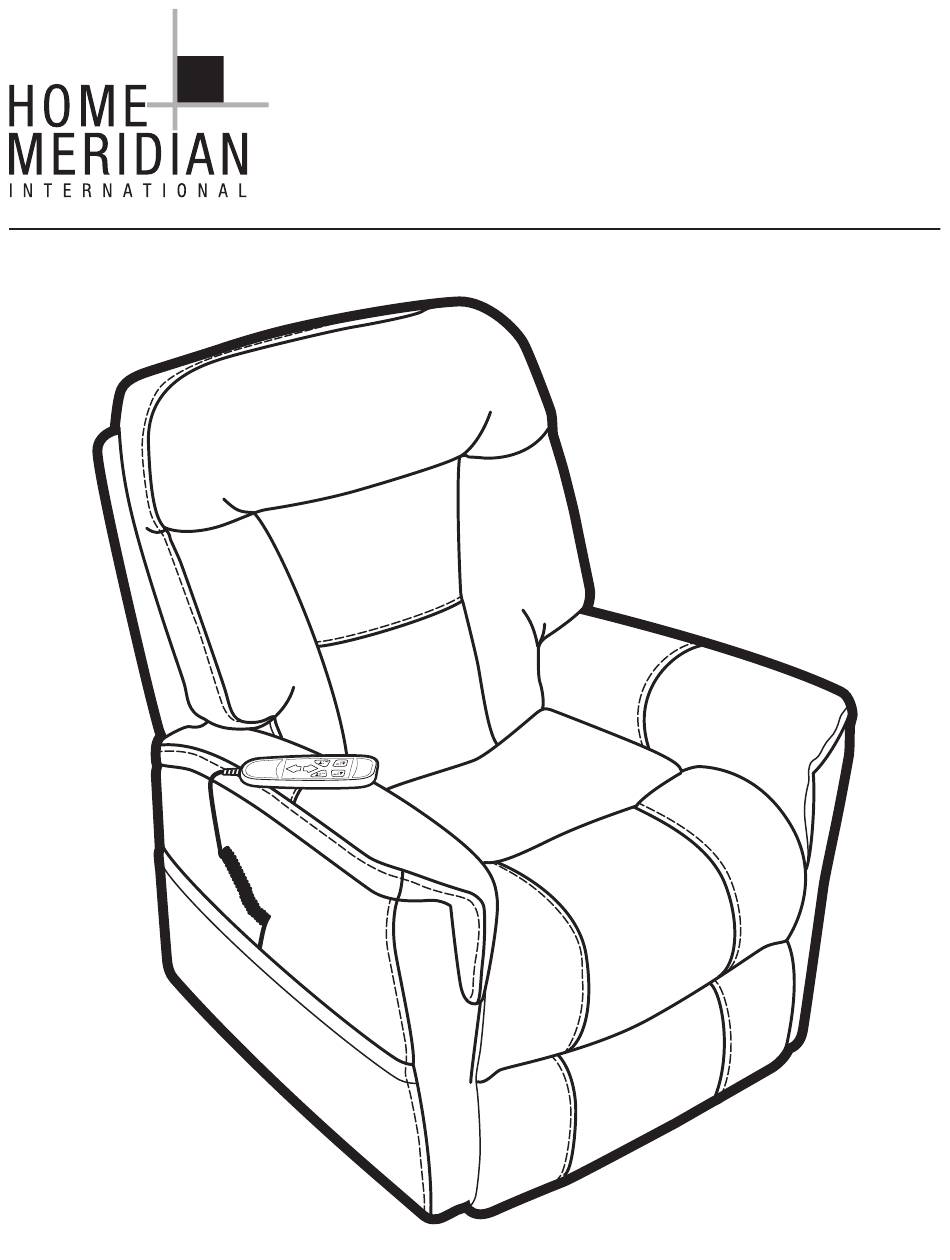

  • Page 1 DS-A278-016-349...

  • Page 2: Important Safety Instructions

    DS-A278-016-349 SAFETY READ THIS MANUAL FIRST BEFORE INSTALLING OR OPERATING YOUR POWER LIFT AND RECLINE CHAIR. IMPORTANT SAFETY INSTRUCTIONS WARNING: It is important that you read, understand and follow ALL safety instructions. Please keep the safety instructions for future reference.

  • Page 3: Electrical Components

    Lift Chair 1) HAND CONTROL 2 EXTERNAL TRANSFORMER, POWER CORD: Connects to a standard electrical outlet to provide power to the lift chair, may be equipped with an LED which will show green to indicate power to the transformer. 3 LIFT MECHANISM PINCH POINT : Responds to the hand control commands to position the chair in the sit and stand positions.

  • Page 4: Lift Chair Setup

    Assembly Your lift chair requires assembly before initial use. LIFT CHAIR SETUP 1. Align back brackets with mechanism posts. 2. Push firmly on the top of the back to lock into position. You must hear a snap from each side of the chair to ensure the back is locked in properly.

  • Page 5: Operation

    Operation LIFT CHAIR PLACEMENT Your lift chair should be placed near a standard electrical outlet on dry, level ground where there is ample room to allow for proper operation. We recommend that you have assistance when positioning the lift chair to avoid the possibility of injury when lifting.

  • Page 6: Power Transformer

    Operation INSTALLATION OF BACK-UP BATTERIES (Batteries not included) (2) 9 Volt back-up batteries will operate the chair from the reclined position to the seating position. The batteries will operate one cycle in case of a power failure. If a power failure occurs and the chair is cycled, the (2) 9 Volt batteries will need to be replaced after they are used once.
