Loose Parts
Use the chart below to verify that all parts have been shipped.
Kit No.
116-0513
Item Part No.
Description
1
116-0587
U-Bolt ...................................................
2
116-0588
Bracket, Mount ...................................
3
3256-4
Washer ..................................................
4
3296-39
Nut, Nyloc 3/8-16..............................
A. Front of the machine
© 2009 Exmark Mfg. Co., Inc.
P.O. Box 808
Beatrice, NE 68310
Qty
Item Part No.
2
5
116-0591
2
6
116-0592
4
7
116-0593
4
8
116-0594

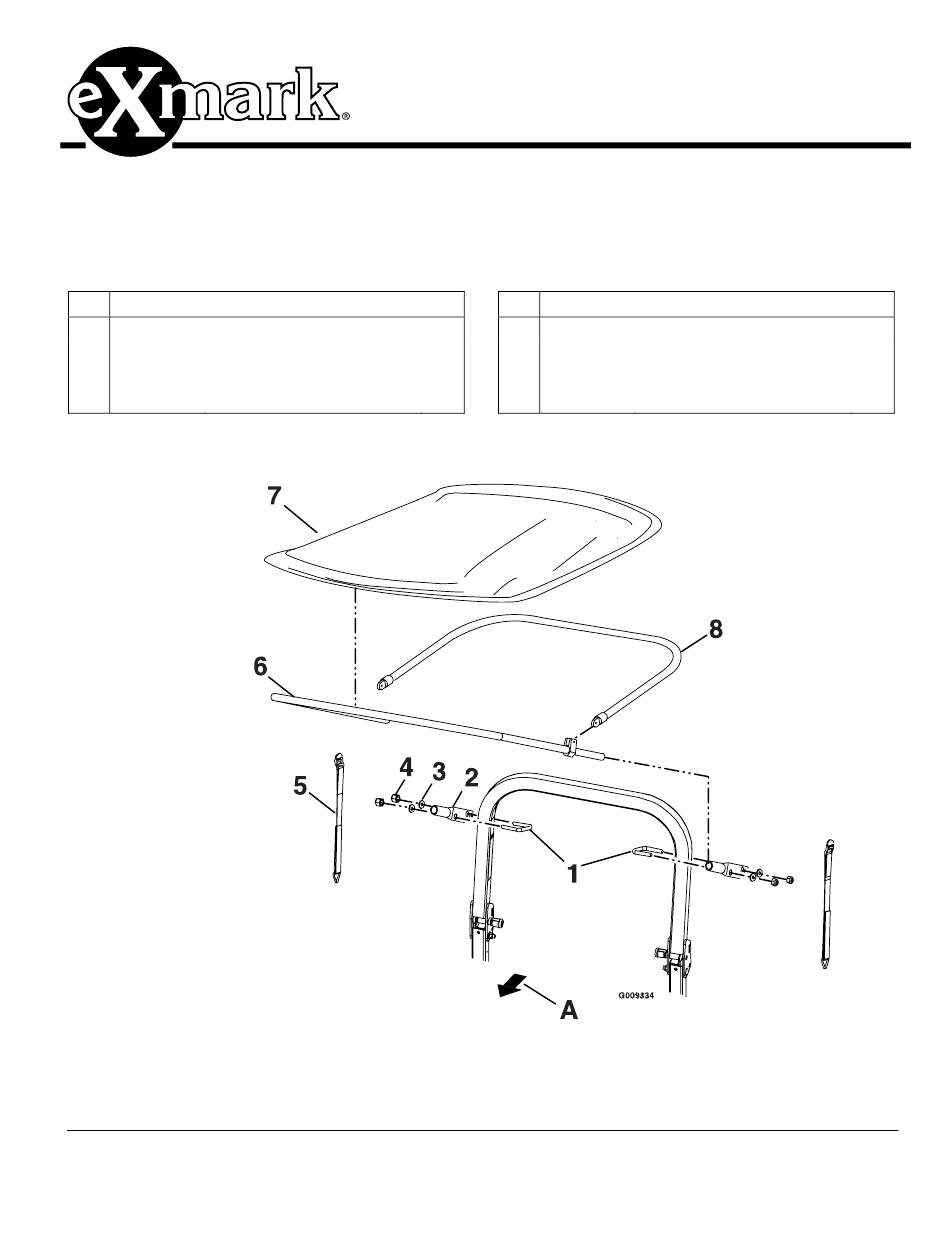

Figure 1
SUNSHADE KIT
Instruction Sheet
Description
Asm, Strap ............................................ 2
Bow, Front............................................ 1
Cover, Canvas ...................................... 1
Bow, Rear ............................................. 1
Part No. 4500-317 Rev. B
Printed in the USA
All Rights Reserved
Qty
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Exmark 116-0513
Summary of Contents for Exmark 116-0513
- Page 1 3296-39 Nut, Nyloc 3/8-16......116-0594 Bow, Rear ..........1 Figure 1 A. Front of the machine © 2009 Exmark Mfg. Co., Inc. Part No. 4500-317 Rev. B P.O. Box 808 Printed in the USA Beatrice, NE 68310 All Rights Reserved...
- Page 2 Safety Alert Symbol WARNING This Safety Alert Symbol is used in this instruction sheet and on the machine to identify While maintenance or adjustments are important safety messages which must be being made, someone could start the followed to avoid accidents. engine.
- Page 3 4. Slide the rear bow through the rear pocket of the canvas cover. 5. Install the straps by sliding the sewn loop with cinch-loc onto the ends of the rear bow past the fittings. 6. Remove the screw from the front bow fitting. Align the holes in the front and rear fittings and re-install the screw.
- Page 4 Removing the Sunshade 1. Apply downward pressure on the rear bow of the canvas assembly and unhook the triangular rings from the mount brackets. Figure 7 Right Side Shown Press downward Strap Unhook triangular ring Pull outward 2. Fold the canvas assembly. 3.
