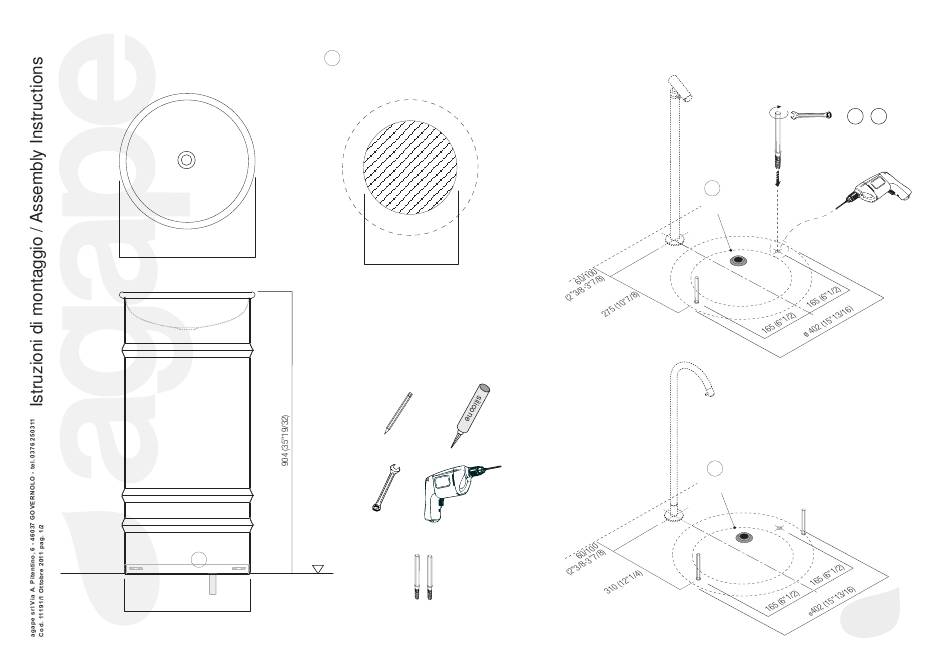

ACER798F "VIEQUES"
DATI TECNICI / TECHNICAL DATA
ø 435 (17"1/8)
A
ø 402 (15"13/16)
A Scarico / Water discharge
Lavabo a colonna / Floor standing washbasin
Area posizionamento scarico a
B
pavimento
ø 280 (11"1/32)
STRUMENTI / TOOLS
ø 9 (3/8")
0.00
n. 2 fissaggi
fixing washbasin
Piantana Square
Floor mounted tap Square
B
ø 280 (11"1/32)
Piantana Fez e Sen
Floor mounted tap Fez and Sen
B
ø 280 (11"1/32)
-
1
2
ø 9 (3/8")
1
Advertisement
Table of Contents
Related Manuals for agape VIEQUES ACER798F
Summary of Contents for agape VIEQUES ACER798F
- Page 1 ACER798F “VIEQUES” Lavabo a colonna / Floor standing washbasin Piantana Square DATI TECNICI / TECHNICAL DATA Area posizionamento scarico a Floor mounted tap Square pavimento ø 280 (11”1/32) ø 9 (3/8”) ø 435 (17”1/8) ø 280 (11”1/32) Piantana Fez e Sen Floor mounted tap Fez and Sen STRUMENTI / TOOLS ø...
- Page 2 ACER798F “VIEQUES” Lavabo a colonna / Floor standing washbasin Piantana Square PRE INSTALLAZIONE / PREINSTALLATION: Floor mounted tap Square 1-2 Individuare il punto di scarico a pavimento. Ese- guire le forature nelle posizioni indicate. Inserire le viti. Locate the drain on the floor. Drill the holes as indicated. Insert the screws.
