INSTRUCTION MANUAL
1200W Electric
Hover Mower
Model No: QG30-1200
Product No: 1938288001
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
Please read & understand this manual, paying attention to the safety instructions, before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this
manual, our policy of continuous improvement determines the right to make modifications
without prior warning.
Images used are for illustration purposes only.
29-06-2021 - V2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for QGarden QG30-1200
Summary of Contents for QGarden QG30-1200
- Page 1 INSTRUCTION MANUAL 1200W Electric Hover Mower Model No: QG30-1200 Product No: 1938288001 ASSEMBLY REQUIRED SAVE THESE INSTRUCTIONS Please read & understand this manual, paying attention to the safety instructions, before use. Incorrect use of the product could put the operator or machine in danger.
- Page 2 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.
-
Page 3: Table Of Contents
Net Weight 5.35 kg Consistent with our policy of continuous improvement, QGARDEN reserves the right to change the design and configuration of any of its products without notice or obligation. Therefore, please treat the text and images in this manual as being for illustrative purposes only. -
Page 4: Important Information
IMPORTANT INFORMATION WARNING Read this instruction manual carefully before operating this machine. Make sure that you are familiar with the controls and properly operate the machine. Following these instructions can reduce the risk of fire, electric shock and personal injury. IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS! This machine can cause serious injury to the operator and others, the warning and safety instructions must be followed to ensure reasonable safety and efficiency in using this product. -
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. - Page 6 GENERAL SAFETY RULES Before you put the machine into operation, you must read this instruction manual. When using this machine, observe the following safety instructions to exclude the risk of personal injury or material damage. Please also observe the special safety instructions in the respective chapters.
- Page 7 SAFETY INSTRUCTIONS FOR WORKING WITH YOUR HOVER MOWER 1. Operate in daylight or good artificial lighting. If possible, do not use on overly wet ground. 2. Ensure good stability on slopes. 3. Be particularly careful if changing direction of travel on the slope. 4.
- Page 8 10. Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed. 11. Do not use the machine if the trigger levers do not work to turn the machine off. Any machine that cannot be controlled with the trigger levers is dangerous and must be repaired.
-
Page 9: Know Your Machine

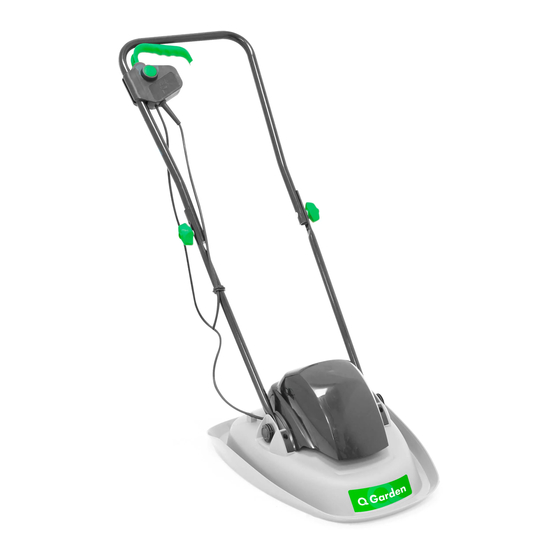

KNOW YOUR MACHINE 1. Top Handle 2. On/Off Trigger 3. Safety Button 4. Cable Tidy 5. Handle Fixing 6. Lower Handle (U-Shape) 7. Motor Cover 8. Lower Handle Latch 9. Blade Wrench 10. Cutting Deck Please note the lower handle on the actual machine may differ from the image above... -
Page 10: Assembly
ASSEMBLY WARNING Stop the motor and unplug the electrical cable before any repairs or maintenance operations. DO NOT attempt to start this machine without it first being FULLY assembled. Your hover mower has been supplied unassembled. Please follow the below steps to complete assembly. -
Page 11: Operation
OPERATION DANGER Risk of injury! The device may only be put into operation if there are no defects. If a part is defective it must be replaced before the device is used again. WARNING Risk of injury! Before starting work, check the area & remove all objects which may be kicked up by the unit. - Page 12 EMERGENCY STOP 1. To stop the motor in an emergency, simply release the pressure on the on/off trigger. 2. Keep your hands on the upper handle in order to control the mower as it sinks to the ground. 3. Allow the motor to stop completely before releasing control of the handle. CORRECT OPERATING POSITION Hold the unit with both hands and ensure the top handle is located at a comfortable height.
- Page 13 Note: Use the cable retention clips (4a) to secure the cord running from the deck to the switch box neatly to the handle assembly, as shown in figure K. 1. Walk, never run with the machine, be very careful when trimming uneven/rough ground. 2.
- Page 14 CHANGING MOWER BLADES WARNING Never carry out any assembly operations or adjustments with the power connected to the mower. Always ensure that the power button is in the off position and that the power plug is disconnected from the supply. 1.
-
Page 15: Maintenance & Storage
MAINTENANCE & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. Turn off the motor and remove the electrical plug from the power source before performing any maintenance. MAINTENANCE Use only original equipment replacement parts. - Page 16 MAINS PLUG REPLACEMENT (U.K. & IRELAND ONLY) If a new mains plug needs to be fitted: 1. Recommended fuse: 5 A. 2. Safely dispose of the old plug. 3. Connect the brown lead to the live terminal in the new plug. 4.
-
Page 17: Trouble Shooting
TROUBLE SHOOTING WARNING! Only perform the steps described in these instructions! All further inspection, maintenance and repair work must be performed by an authorised service specialist! Contact your local authorised service dealer if the problem cannot be solved by yourself! WARNING! If the product does not perform properly, makes unusual sounds, the motor does not start or stop as described, the cutting device does not work properly, or any other irregularity or... -
Page 18: Parts Diagram & List
PARTS DIAGRAM & LIST... - Page 19 Item No Part No. Description WE193-104030136 Self-Tapping Screw WE193-301071107 Motor Cover WE193-105990331 Dust-Proof Sponge A WE193-105990300 Dust-Proof Sponge B WE193-301070993 Collapsible Line Plate WE193-301070994 Dust Cover WE193-104030174 Self-Tapping Screw WE193-4070263 Motor Assy QG131-301070995 Deck Handle Fixing WE193-104030517 Self-Tapping Screw Flat Head WE193-301990135 Pressing Plate QG131-301070936A...
- Page 20 EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Electric 1200W Hover Mower Model(s): QG30-1200 Product Number: 1938288001 Type/Serial No. As per rating label on machine Voltage: 230-240V~, 50Hz Rated Motor Power: 1200W...
- Page 21 GJ HANDY & CO LTD USER WARRANTY POLICY Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
- Page 22 Not covered by this warranty a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident. b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services instructed by the operator’s manual, or service parts replacement which would include oil, filters, tyres, belts, brake linings, fuses, blades, seals and other service parts unless it can be proven that the item has evidence of faulty manufacture.
-
Page 24: Tel: 01793 333212
If you require assistance with regards to the contents or operation of the machine, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk Opening hours weekdays: February to October 8:30am - 5:30pm November to January 8:30am - 5:00pm (Closed Bank Holidays) Distributed by (UK) Distributed by (EU) Handy Distribution,...
