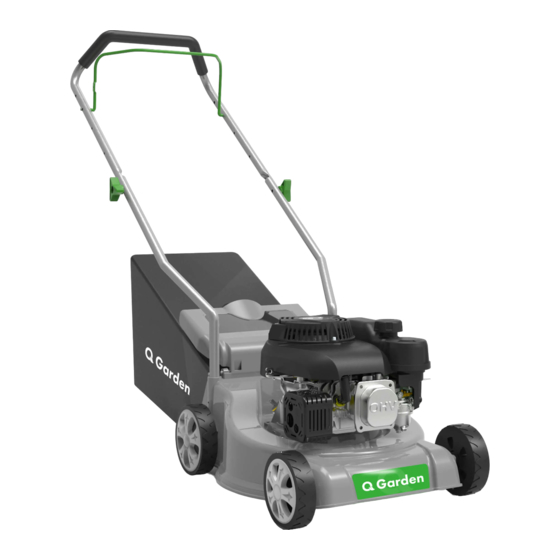

QGarden QG39-130 Instruction Manual

39cm push petrol lawnmower

Hide thumbs

page of 36

/ 36
Bookmarks

Quick Links

Download this manual

INSTRUCTION MANUAL

39cm Push Petrol

Lawnmower

Model No: QG39-130

Product No: 1938276001

ASSEMBLY REQUIRED

SAVE THESE INSTRUCTIONS

SPARES & SUPPORT: 01793 333212

Please read & understand this manual, paying attention to the safety instructions, before use.

Incorrect use of the product could put the operator or machine in danger.

Whilst every effort has been made to ensure the accuracy of information contained in this

manual, our policy of continuous improvement determines the right to make modifications

without prior warning.

Images used are for illustration purposes only.

Need help?

Do you have a question about the QG39-130 and is the answer not in the manual?

Questions and answers

Summary of Contents for QGarden QG39-130

Page 1 INSTRUCTION MANUAL 39cm Push Petrol Lawnmower Model No: QG39-130 Product No: 1938276001 ASSEMBLY REQUIRED SAVE THESE INSTRUCTIONS SPARES & SUPPORT: 01793 333212 Please read & understand this manual, paying attention to the safety instructions, before use. Incorrect use of the product could put the operator or machine in danger.
Page 2 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.
Page 3 Opening hours weekdays: February to October 8:30am - 5:30pm / November to January 8:30am - 5:00pm (Closed Bank Holidays) SPECIFICATION The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model QG39-130 Product Number 1938276001 Working Width 390mm Drive Type...
Page 4 IMPORTANT INFORMATION WARNING Read this instruction manual carefully before operating this machine. Make sure that you are familiar with the controls and properly operate the machine. Following these instructions can reduce the risk of fire, electric shock and personal injury. IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS! This machine can cause serious injury to the operator and others, the warning and safety instructions must be followed to ensure reasonable safety and efficiency in using this product.
Page 5 GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product.
Page 6 GENERAL SAFETY RULES Before you put the machine into operation, you must read this instruction manual. When using this machine, observe the following safety instructions to exclude the risk of personal injury or material damage. Please also observe the special safety instructions in the respective chapters.
Page 7 15. Switch the engine off: − If you remove blockages from the machine. − Before refueling. WORK AREA 1. Keep work area clean and well lit. Cluttered and dark areas invite accidents. 2. Check the landscape where the machine will be used and remove all objects such as stones, toys, sticks and wires, which could be caught and thrown away from the work area.
Page 8 machine will do the job better and safer at the rate for which it was designed. 8. Do not use the machine if the main OPC/Brake lever does not work to turn the machine off. Any machine that cannot be controlled with the OPC/Brake lever is dangerous and must be repaired.
Page 9 KNOW YOUR MACHINE 1. OPC/Brake Lever 2. Upper Handle 3. Lower Handle 4. Engine Primer Bulb 5. Wheel 6. Fuel Tank Cap 7. Plastic Deck 8. Exhaust (Muffler) 9. 35L Grass Collector 10. Spark Plug Cap 11. Air Filter Housing 12.
Page 10 ASSEMBLY ATTENTION: IMPORTANT INFORMATION NOTE: This product is a 4-stroke engine powered machine. The engine MUST be filled with recommended 4-stroke SAE30 or 10W/30 air cooled lawnmower engine oil BEFORE starting. Fresh unleaded petrol must be used in this unit. DO NOT use Ethanol based fuels.
Page 11 UPPER HANDLES 3. To attach the upper handlebar, first remove the two handlebar knobs and bolts if fitted. 4. Position the upper handle over the lower handles, aligning the holes in the upper handle with those in the lower handles. Insert the left fixing bolt from the inside of the handle assembly and secure with the fixing knob on the outside.
Page 12 GRASS COLLECTOR 1. Left the grass collector flap up, so that it opens past the handle assembly. Hold in position and place the grass collector hooks over the bar and place into position. 2. Lower the grass collector flap to sit onto the grass collector. RECOIL STARTER HANDLE 1.
Page 13 HEIGHT OF CUT To adjust the height of cut, the machine has been supplied with three cutting heights - 28mm, 48mm & 68mm. Adjusting the height of cut should only be undertaken when the engine is off, and the blade has come to a complete standstill.
Page 14 OPERATION FUEL & OIL WARNING YOUR MACHINE IS SUPPLIED WITHOUT ENGINE OIL OR PETROL Operating the engine with insufficient oil, can have catastrophic consequences. Any failure caused by insufficient oil, will not be covered by the manufacturer’s warranty. READ INSTRUCTIONS CAREFULLY. Fuel &...
Page 15 ENGINE OIL 1. Remove the oil filler cap with built in dipstick. 2. Fill the engine with 4-stroke SAE30 or 10W/30 air cooled lawnmower engine oil. DO NOT USE automotive or marine oil. The use of a funnel will aid the filling.
Page 16 ENGINE STARTING & STOPPING PROCEDURE NOTE: Starting an engine without engine oil or fuel can seriously damage the machine STARTING THE ENGINE (COLD) 1. Push the red engine primer bulb a maximum of 3 times. 2. Pull the OPC/Brake lever towards the main handle. Do not let go. 3.
Page 17 NOTE: If the engine won’t start after you have operated the starter several times, the engine may be flooded with excess fuel. Use the following procedure to clear and start a flooded engine. 1. Release the OPC/Brake lever. 2. Remove the spark plug, dry it, and then reinstall it. NOTE: Install the spark plug carefully by hand, to avoid cross-threading.
Page 18 NOTE: Install the spark plug carefully by hand, to avoid cross-threading. After the plug is seated tighten 1/8 to 1/4 turn with socket spanner of spark plug to compress the washer. 3. Pull the OPC/Brake lever towards the upper handle. 4.
Page 19 MOWING WITH REAR DISCHARGE To mow and not collect your cuttings, the machine is equipped to rear discharge. 1. Lift the rear cover and remove the grass collector. 2. Allow the rear collector to sit on the rear of the deck. 3.
Page 20 WARNING After the engine has stopped, the blade will still rotate a couple of seconds. CAUTION Operating on gradients could cause the machine to tip over. Allowing anyone to operate this machine without proper instruction may result in injury. Wear sturdy, full coverage footwear. Operating this machine with bare feet, or with open toe shoes or sandals increases your risk of injury.
Page 21 ENGINE OIL CHANGE CAUTION Used oil is a hazardous waste product and must be disposed of properly. Do not discard with household waste. Check with your local authorities, service center, or dealer for safe disposal/recycling facilities. Drain the oil while the engine is still warm to assure rapid and complete drainage •...
Page 22 2. Foam filter: clean in warm soapy water, rinse and allow to dry thoroughly or clean in high flash‐point solvent and allow to dry. Dip the element in clean engine oil and squeeze out all the excess. The engine will smoke during initial start-up if too much oil is left in the filter. WARNING Never use gasoline or low flash point solvents to clean the air cleaner element.
Page 23 CLEANING CAUTION Do not use a water hose or pressure washer to clean the engine. Water can damage the engine or contaminate the fuel system. • Keep your machine clean. Thoroughly clean the machine at the end of each use, paying attention to stones or mud in and around the tines.
Page 24 NOTE: When storing any type of power equipment in an unventilated or material storage shed, • Care should be taken to rust-proof the equipment. Using a light oil or silicone, coat the equipment, especially cables and all moving parts. • Be careful not to bend or kink cables.
Page 25 PARTS DIAGRAM - QG39-130 (1938276001) VERSION 8 01-2020...
Page 26 PARTS LIST - QG39-130 (1938276001) Item No Part No. Description WE153-91221 Bolt 3/8-24UNFX38 WE153-94042 Flat Washer WE153-602001 Blade Washer WE164-602008 Blade (390mm) WE153-602003 Blade Adapter WE164-602022 Bush WE153-296510 QG121-601023-127 Cutting Deck WE153-90016 Nut M6 WE164-601026 Right Height Adjust Plate WE164-601025...
Page 27 PARTS DIAGRAM – ENGINE 132cc VERSION 8 01-2020...
Page 28 PARTS LIST – ENGINE 132cc Item No. Part No. Description WE152-410201 Cylinder WE152-415601-138 Oil Fill Cap with Dipstick WE151-316101 Valve Lifter WE152-292101 Rocker Arm WE152-91818 Rocker Arm Bolt Assembly WE151-316001 Valve Springs WE151-311802 Inlet Valve Spring Seat WE151-300605 Circular Plate WE152-241806 Oil Seal Valve WE152-91816...
Page 29 PARTS LIST – ENGINE 132cc Item No. Part No. Description WE152-410601 Oil Chamber Back WE152-412001 Camshaft Assembly WE152-411901 Valve Push Rod WE152-412201 Limit Plate Assembly WE152-411701 Inlet Valve WE152-415901 Exhaust Valve WE152-412901 Air Filter Assembly (Incl. Filter) WE152-412801 Carburettor Assembly WE152-96227 Intake Gasket WE152-412301...
Page 30 EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Petrol Hand Push 390mm Lawnmower Model(s): QG39-130 Product Number: 1938276001 Type/Serial No. As per rating label on machine Engine Displacement: 132 cm Rated Engine Power: 2.5kW...
Page 31 GJ HANDY & CO LTD USER WARRANTY POLICY Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
Page 32 Not covered by this warranty a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident. b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services instructed by the operator’s manual, or service parts replacement which would include oil, filters, tyres, belts, brake linings, fuses, blades, seals and other service parts unless it can be proven that the item has evidence of faulty manufacture.
Page 33 NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________...
Page 34 NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________...
Page 36 For spares or support of your Q Garden product, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk Opening hours weekdays: February to October 8:30am - 5:30pm November to January 8:30am - 5:00pm (Closed Bank Holidays) Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, Wiltshire,...
