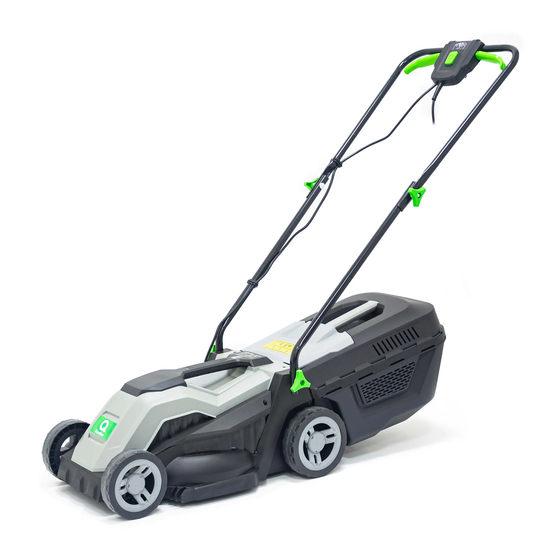

QGarden QG33-1200 Instruction Manual

33cm electric lawnmower

Hide thumbs

page of 24

/ 24
Bookmarks

Quick Links

Download this manual

INSTRUCTION MANUAL

33cm Electric

Lawnmower

Model No: QG33-1200

Product No: 1938283001

ASSEMBLY REQUIRED

SAVE THESE INSTRUCTIONS

Please read & understand this manual, paying attention to the safety instructions, before use.

Incorrect use of the product could put the operator or machine in danger.

Whilst every effort has been made to ensure the accuracy of information contained in this

manual, our policy of continuous improvement determines the right to make modifications

without prior warning.

Images used are for illustration purposes only.

Need help?

Do you have a question about the QG33-1200 and is the answer not in the manual?

Questions and answers

Summary of Contents for QGarden QG33-1200

Page 1 INSTRUCTION MANUAL 33cm Electric Lawnmower Model No: QG33-1200 Product No: 1938283001 ASSEMBLY REQUIRED SAVE THESE INSTRUCTIONS Please read & understand this manual, paying attention to the safety instructions, before use. Incorrect use of the product could put the operator or machine in danger.
Page 2 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.
Page 3 Opening hours weekdays: February to October 8:30am - 5:30pm / November to January 8:30am - 5:00pm (Closed Bank Holidays) SPECIFICATION The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model QG33-1200 Product Number 1938283001 Voltage 220-240V, 50Hz Power...
Page 4 IMPORTANT INFORMATION WARNING Read this instruction manual carefully before operating this machine. Make sure that you are familiar with the controls and properly operate the machine. Following these instructions can reduce the risk of fire, electric shock and personal injury. IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS! This machine can cause serious injury to the operator and others, the warning and safety instructions must be followed to ensure reasonable safety and efficiency in using this product.
Page 5 GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product.
Page 6 GENERAL SAFETY RULES Before you put the machine into operation, you must read this instruction manual. When using this machine, observe the following safety instructions to exclude the risk of personal injury or material damage. Please also observe the special safety instructions in the respective chapters.
Page 7 SAFETY INSTRUCTIONS FOR WORKING WITH YOUR LAWNMOWER 1. Operate in daylight or good artificial lighting. If possible, do not use on overly wet ground. 2. Ensure good stability on slopes. Always operate across the slope, never up and down. 3. Be particularly careful if changing direction of travel on the slope. 4.
Page 8 exposure per day. 10. Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed. 11. Do not use the machine if the trigger levers do not work to turn the machine off. Any machine that cannot be controlled with the trigger levers is dangerous and must be repaired.
Page 9 KNOW YOUR MACHINE 1. Trigger 2. Upper Handle 3. Lower Handle 4. Safety Button 5. Rear Wheel 6. Front Wheel 7. Cutting Deck 8. 30L Grass Collector 9. Handle Knob...
Page 10 ASSEMBLY WARNING Stop the motor and unplug the electrical cable before any repairs or maintenance operations. DO NOT attempt to start this machine without it first being FULLY assembled. LOWER HANDLES 1. Insert the lower handle against the fixed bolt of the machine, located above the rear wheel.
Page 11 CABLE TIDY 1. Place the cable into the fixed cable tidy. GRASS COLLECTOR 1. Snap the handle into the collector top. 2. Attached the two lower halves of the collector together. 3. Attach the collector top to the assembled collector bottom. 4.
Page 12 HEIGHT OF CUT The machine has been supplied with three cutting heights from 20-40-60 mm. 1. Adjusting the height of cut should only be undertaken when the motor is off, and the electrical plug removed from the power source and the blade has come to a complete standstill.
Page 13 OPERATION MOTOR STARTING & STOPPING PROCEDURE NOTE: Only start the lawnmower on even ground and not in long grass. The ground must be free of foreign bodies, such as stones. Do not lift the lawn mower to start it. STARTING THE MOTOR 1.
Page 14 EMPTYING THE GRASS BAG As soon as grass clippings start to trail the lawnmower, it is time to empty the grass bag. NOTE: Before taking off the grass collector, switch off the motor & wait for the blade has come to a stop.
Page 15 Before any maintenance, repairing or checking operations. Before carrying, lifting or removing the mower. If you leave the mower unattended or changing the cutting height. To remove and emptying the grass catcher. After hitting a foreign object, stop the motor and check thoroughly the mower in order to see if it is damaged.
Page 16 CLEANING CAUTION Do not use a water hose or pressure washer to clean the machine. Water can damage the motor. • Keep your machine clean. Thoroughly clean the machine at the end of each use. • Clean the motor air vents with a cloth or brush. Motor air vents should be free from debris to allow air circulation around the motor during use.
Page 17 TROUBLE SHOOTING WARNING! Only perform the steps described in these instructions! All further inspection, maintenance and repair work must be performed by an authorised service specialist! Contact your local authorised service dealer if the problem cannot be solved by yourself! WARNING! If the product does not perform properly, makes unusual sounds, the motor does not start or stop as described, the cutting device does not work properly, or any other irregularity or...
Page 18 PARTS DIAGRAM - QG33-1200 (1938281001)
Page 19 PARTS LIST - QG33-1200 (1938281001) Item No. Part No. Description QG123-ZAKGH360025 Switch Assembly A-16 QG125-GKDA0000001 Upper Handle A-17 QG125-GKDB0000001 Lower Handle A-18 QG123-GHAB0000010 Cable Clamp A-19 QG123-B5019W00000 Washer A-20 QG125-B1084W08040 Bolt M8x41 A-21 QG125-G33C1100025 Knob QG125-ZADJ12X0000 1200W Motor Assembly QG125-GHD1000001R...
Page 20 EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Electric Hand Push 330mm Lawnmower Model(s): QG33-1200 Product Number: 1938283001 Type/Serial No. As per rating label on machine Motor Power: 1200W Voltage: 220-240V, 50Hz...
Page 21 GJ HANDY & CO LTD USER WARRANTY POLICY Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
Page 22 Not covered by this warranty a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident. b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services instructed by the operator’s manual, or service parts replacement which would include oil, filters, tyres, belts, brake linings, fuses, blades, seals and other service parts unless it can be proven that the item has evidence of faulty manufacture.
Page 24 For spares or support of your Q Garden product, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk Opening hours weekdays: February to October 8:30am - 5:30pm November to January 8:30am - 5:00pm (Closed Bank Holidays) Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, Wiltshire,...
