Quick Start Guide
VAD28 / VAD32 (OBD)
Get excited, your VADpro is here!
Developed by a small group passionate car enthusiasts, your VADpro is a powerful device that will give you full access
to your vehicle's data. Please make sure to read this quick start guide completely. If you require further assistance in
setting up your device, please reach out to us at: support@vadpro.com
What's Included In Your Kit
Display including vent frame
Connection cable with pre-installed plugs
MicroSD card (installed)
MicroSD to SD Card Adapter
Optional anti-Glare Screen Protector x 2
Micro USB to USB A cable

Your Data, The Way You Want It.

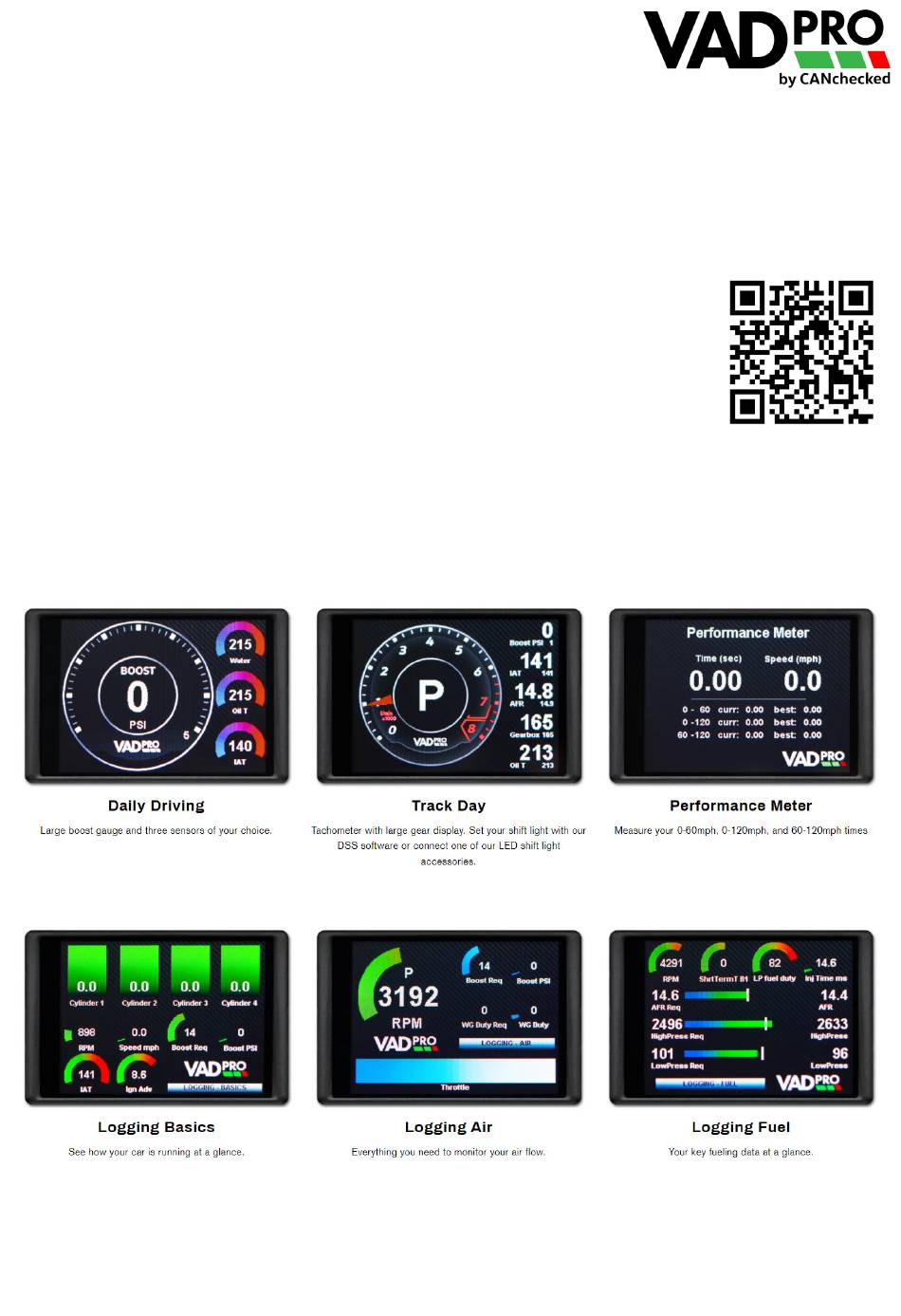

VADpro has access to 64 of your vehicle's sensors and can display your data across ten different pages. Use the touch
screen to navigate between each page and choose which sensor you want to display. To get you started quickly, your
VADpro comes pre-loaded with six example pages.
Need more customization? You can personalize your pages by changing the graphics, colours, sensors and widgets
and build your own views using the CANchecked DSS software included with your device. For more information on
personalizing, customizing, and saving your dashboards, please refer to vadpro.com/documentation.
Installation Guide
The installation guide can be
found on your device's product
page at vadpro.com or by
scanning and downloading the
PDF using the QR code here:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VADpro VAD28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CANchecked VADpro VAD28

  • Page 1 Need more customization? You can personalize your pages by changing the graphics, colours, sensors and widgets and build your own views using the CANchecked DSS software included with your device. For more information on personalizing, customizing, and saving your dashboards, please refer to vadpro.com/documentation.
  • Page 2 Setting Up Your Display VADpro uses an engine code specific TRX file to decode your ECU data, in conjunction with ten widget files or widget pack, to configure how your data is displayed on your device. This data can be displayed in three different formats and two languages based on your preference: Type Pressure...
  • Page 3 Step 2 : Load the widget pack (continued) Note: Loading these widget packs will restore all 10 pages to the factory pre-loaded example pages. For more information on personalizing, customizing, and saving your dashboards, please refer to vadpro.com/documentation. Screen Operation 1.
  • Page 4 VADpro Menus Pulling down anywhere on the screen will reveal the “Setup” and “DTC” buttons. The “DTC” menu allows you to Scan and clear fault codes for the four main systems of your vehicle. ECU, Gearbox, Brake, and Haldex. Future developments will allow you to scan and view all error codes.
