Installation Guide Audi 80 B4
Preface

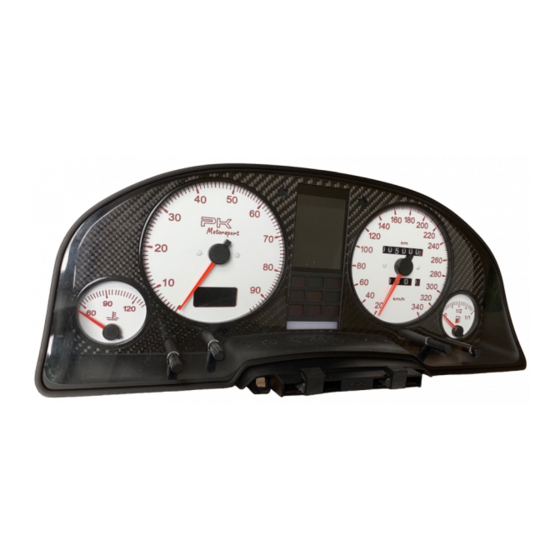

Thank you, for purchasing the "MFA28" to install in a Audi 80 B4 instrument cluster.
Now high tech is entering your car.
During development, we put high effort into fitting accuracy and quality. The MFA has
been tested and test fitted by several people and will be steady improved, so you will
have no problems during the modification of your instrument cluster.
Despite our great care and tests it can happen that unpredictable difficulties or
problems may occur. This may occur due to many different versions of instrument
panels, which cannot be considered upfront. On the other hand, a very limited space is
available for our MFA28. So please apologize these factors.
If you have any feedback, criticism or change request, do not hesitate to get in contact
with us at info@canchecked.de.
Required Tools
Phillips screwdriver small
-
MicroUSB cable (for updates and powering the display on your desk)
-
SD card reader (optional)
-
Advices
The retrofit set is a very sensitive electronical device. Please use an antistatic mat and
wrist band to avoid any damage to the device itself. Avoid high pressure to the device
especially the screen. This may lead to defects or faults in displaying your data.
CANchecked does not assume any liability for this modification or any damage during
modification or during operation. This installation guide has been put together with the
best of our knowledge and belief.
Version v0.2
MFA28
www.canchecked.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CANchecked MFA28
Summary of Contents for CANchecked MFA28
- Page 1 Installation Guide Audi 80 B4 MFA28 Preface Thank you, for purchasing the “MFA28“ to install in a Audi 80 B4 instrument cluster. Now high tech is entering your car. During development, we put high effort into fitting accuracy and quality. The MFA has been tested and test fitted by several people and will be steady improved, so you will have no problems during the modification of your instrument cluster.
- Page 2 The product makes use of a touchscreen. Because it will be covered by your tach, this cannot be used anymore. All setup processes need to take place BEFORE you mount the MFA28 into your tach. Version v0.2 www.canchecked.de...
- Page 3 Installation remove 4x phillips screws (red) click off the green PCB (green circle) pull module of the cluster Version v0.2 www.canchecked.de...
- Page 4 MFA28 module slide in MFA28 secure MFA28 with two OE screws remove the light bulb for the left indicator to make mounting easier Version v0.2 www.canchecked.de...
- Page 5 Installation of serial converter for e.g. VEMS ECU (optional) the adapter comes with open leads. Please connect to the following display ports: red: 5V black: GROUND white: RX1 (B6) yellow: TX1 (B1) (see chapter “Electrical Connection”) Version v0.2 www.canchecked.de...
- Page 6 Please dim both background and shift light, so it is acceptable for night drives (test in dark room/garage). When you hit the brightness button both units will be dimmed to your pre-set value and with a second press they will go to full brightness. Version v0.2 www.canchecked.de...
- Page 7 Electrical connection Please follow the quick start guide, which is included with your display or can also be found on our homepage under downloads: www.canchecked.de/downloads Version v0.2 www.canchecked.de...
