Instructions
®
Pulse
Extender
®
Improves Pulse
Pro device network coverage and capacity to support RF communication
in a Pulse Pro system. For professional use only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Extender
Model
Description

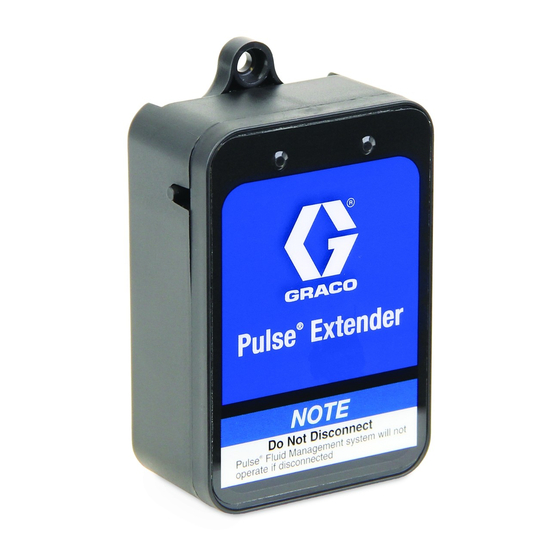

Pulse Pro Extender
20A058
North America
Pulse Pro Extender
20B058
North America
Pulse Pro Extender
20A059
International
20A152
Pulse Pro Extender ANZ
20A151
Pulse Pro Extender UK
Important Safety Instructions
Read all warnings and instructions in this
manual and in all related Pulse manuals
before using the equipment. Save all
instructions.
Related Manuals
Manual in
Description
English
3A5414
®
Pulse
Hub
Pro
Approval
cETLus,
FCC, IC
cETLus,
FCC, IC
CE
RCM
UKCA
Manual 3A8209B
EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco Pulse Pro
Summary of Contents for Graco Pulse Pro
- Page 1 Extender Manual 3A8209B ® Improves Pulse Pro device network coverage and capacity to support RF communication in a Pulse Pro system. For professional use only. Not approved for use in explosive atmospheres or hazardous (classified) locations. Extender Model Description Approval...
-
Page 2: Component Identification
Component Identification Component Identification Key: Red LED Blue LED Button Extender Status Flashing: briefly lit every second. Blinking: lit every other second. Blue Light Red Light Status Powering On/Configuring Connected Powered On/Not Connected Flashing Checking connection status Blinking Attempting to register to the device network Manual 3A8209B... -
Page 3: Installation
5. Review the Pulse software to confirm discovery of the Extender. If it does not confirm, see Troubleshooting, page 5. 6. Exit Discovery mode on the Pulse Pro Fluid Management software. NOTE: It may take up to three (3) minutes for the Pulse Pro Extender to receive a message from the HUB that clears the red light. -
Page 4: Recycling And Disposal
Recycling and Disposal Recycling and Disposal End of Product Life At the end of the product’s useful life, dismantle and recycle it in a responsible manner. • Do not dispose of batteries or electronic components with household or commercial waste. •... -
Page 5: Troubleshooting
Troubleshooting Troubleshooting Problem Cause Solution Unable to move between Pulse Device The original connected Device network Press and hold the button for 20 Networks (i.e. HUB to the Remote is in range. seconds to temporarily disconnect the Extender), Registration fails (solid blue Extender from any device networks. -
Page 6: Technical Specifications
Technical Specifications Technical Specifications Extender Metric Power Supply 100 - 240 VAC Current Operating Temperature Range 32°F to 140°F 0°C to 60°C Storage Temperature Range -40°F to 176°F -40°C to 80°C RF Frequency Band 2400 - 2483.5 MHz Maximum RF Transmit Power Model 20A058- NA +19.9 dB Model 20B058, 20A059, 20A152,... -
Page 7: California Proposition 65
Compliance Compliance Contains Model XBEE3 Radio, IC: 1846A-XBEE3 This Extender contains FCC ID MCQ-XBEE3. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not case harmful interference. •... -
Page 8: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
