- Page 1 JAKKA CONTROL KIT 5 USER MANUAL...
- Page 2 JAKKA CONTROL KIT 5 JAKKA CK5 is capable of controlling exhaust and supply fans seperately and driving electrical heater on/off and proportionally. The other features are below; Counting time for filter dirtiness on 1200 hours of functioning time of the unit ...

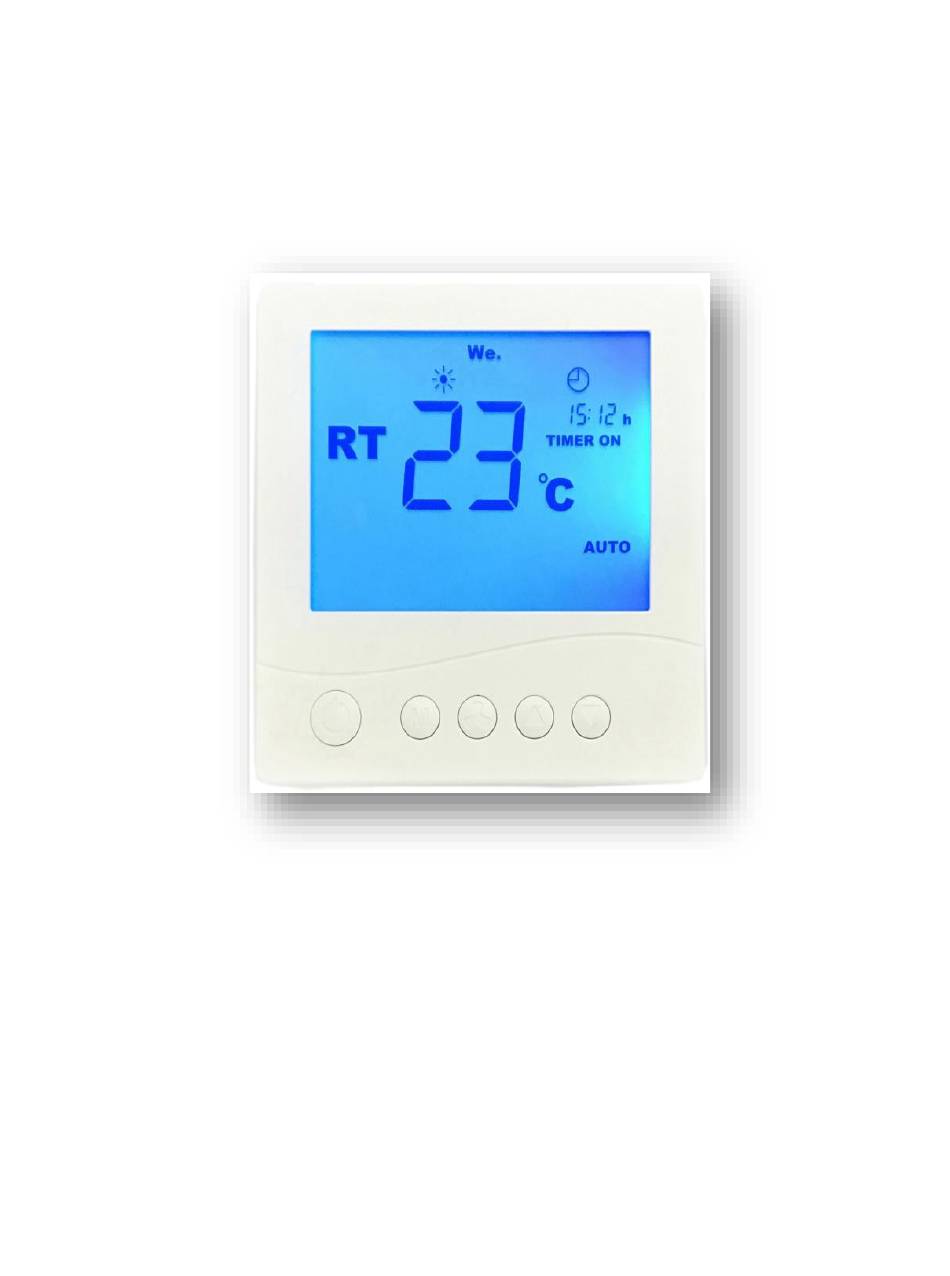

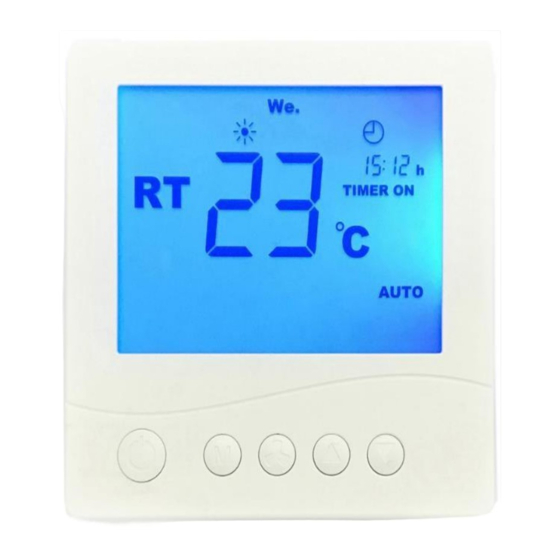

- Page 3 ROOM THERMOSTATE On/Off : Starts and stops the unit. Mode/OK : Selection of functions (Auto Heat / Auto Fan / Manual) . Works as OK button. : Increases set temperature in manual mode. Increases fan speed in auto mode. Down : Decreases set temperature in manual mode.
- Page 4 FEATURES OF ROOM THERMOSTATE A. ) HOW TO MAKE WEEKLY PROGRAMMING: Press button for two (2) seconds while the unit is on. • You will see “00” at the upper-right part of the screen, then press Mode / OK button. •...
- Page 5 E.) HOW TO ACTIVATE KEYLOCK: Press DOWN buttons simultaneously when the unit is on. • There will be a lock symbol on screen after 2 seconds. All of the buttons will be locked when keylock is on. F.) HOW TO DEACTIVATE KEYLOCK: Press DOWN buttons simultaneously when the unit is on.
- Page 6 I.) ENTERING TO SERVICE MENU: To Enter: Press DOWN buttons simultaneously • Enter service menu password by using DOWN and press Mode/OK. • Note: The Service menu password is“58” Then go to Parameter you want to change by using DOWN buttons then press Mode/OK button...
- Page 7 J.) SELECTING TEMPERATURE CONTROL POINT There are 4 options that unit can check the temperature; -Room thermostate -Return Air -Supply Air -Outside Air To select one of these; Press DOWN buttons simultaneously • Enter service menu password by using DOWN and press Mode/OK.
- Page 8 ERROR CODES TROUBLE SHOOTING CODE EXPLANATION Check the fan,connection cables and filter.If all are fine, reset the alarm by pressing buttons 0001 Exhaust Fan Error simultaneously If there is a broken component replace it with a new one. Check the fan,connection cables and filter.If all are fine, reset the alarm by pressing buttons 0002...
