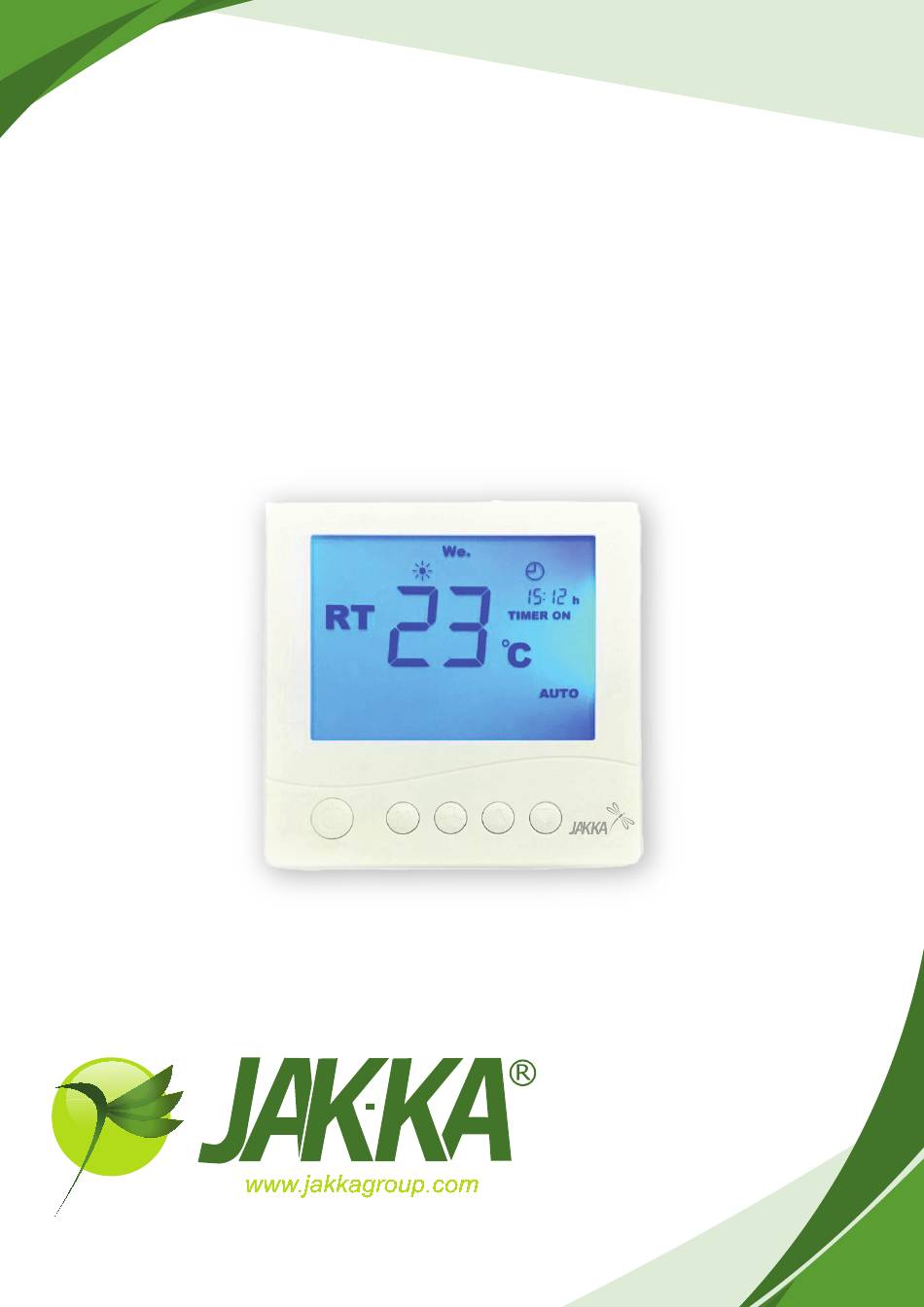

- Page 1 User Manual JAKKA CONTROL KIT 5 Podaci u katalogu su informativnog karaktera. Jakka Group zadržava pravo promene cena i podataka bez prethodne najave. Za više informacija, pre konačne kupovine, kontaktirajte našu prodajnu službu.
- Page 2 Contents ROOM THERMOSTATE FEATURES OF ROOM THERMOSTATE: TROUBLESHOOTING...
- Page 3 Control kit ROOM THERMOSTATE JAKKA CK5 is capable of controlling exhaust and supply fans seperately and driving electrical heater on/off and proportionally. The other features are below; - Counting time for filter dirtiness on 1200 hours of functioning time of the unit - Selection of preloaded programs via room thermostate - Adjustable mode selections;...
- Page 4 Control kit ROOM THERMOSTATE On/Off : Starts and stops the unit. Mode/OK : Selection of functions (Auto Heat / Auto Fan / Manual) Works as OK button. Up : Increases set temperature in manual mode. Increases fan speed in auto mode. Down : Decreases set temperature in manual mode.
- Page 5 Control kit ROOM THERMOSTATE FEATURES OF ROOM THERMOSTATE: A. ) HOW TO MAKE WEEKLY PROGRAMMING: • Press FAN button for two (2) seconds while the unit is on. • You will see “00” at the upper-right part of the screen, then press Mode / OK button. •...
- Page 6 Control kit ROOM THERMOSTATE E.) HOW TO ACTIVATE KEYLOCK: • Press FAN and DOWN buttons simultaneously when the unit is on. There will be a lock symbol on screen after 2 seconds. All of the buttons will be locked when keylock is on. F.) HOW TO DEACTIVATE KEYLOCK: •...
- Page 7 Control kit ROOM THERMOSTATE I.) ENTERING TO SERVICE MENU: To Enter: • Press UP and DOWN buttons simultaneously • Enter service menu password by using UP and DOWN and press Mode/OK. Note: The Service menu password is“58” • Then go to Parameter you want to change by using UP and DOWN buttons then press Mode/OK button •...
- Page 8 Control kit TROUBLESHOOTING CODE EXPLANATION Check the fan,connection cables and filter.If all are fine, reset the alarm by pressing FAN and UP buttons 0001 Exhaust Fan Error simultaneously If there is a broken component replace it with a new one. Check the fan,connection cables and filter.If all are fine, reset the alarm by pressing FAN and UP buttons 0002...
- Page 9 Bulevar Zorana Đinđića 80, 11070 NOVI BEOGRAD +381 11 2600 901 +381 11 2600 906 jakkagroup@jakkagroup.com www.jakkagroup.com...
