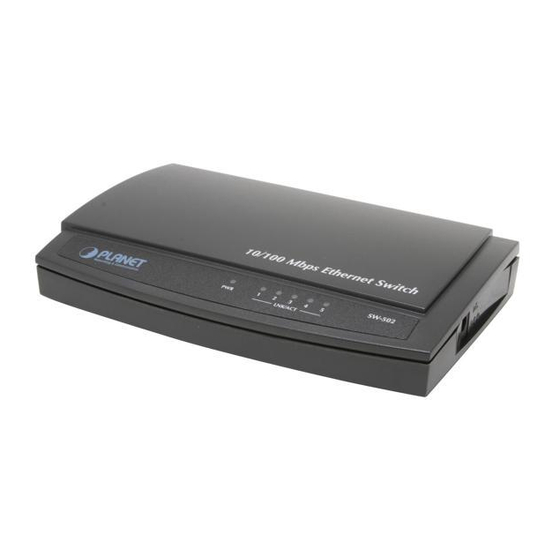

Planet SW-502 User Manual

10/100mbps fast ethernet switch
Hide thumbs Also See for SW-502:
Table of Contents

Advertisement

Quick Links

10/100Mbps
Fast Ethernet Switch
SW-502/SW-802
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-502 and is the answer not in the manual?

Questions and answers

Related Manuals for Planet SW-502

Summary of Contents for Planet SW-502

  • Page 1 10/100Mbps Fast Ethernet Switch SW-502/SW-802 User's Manual...
  • Page 2 Trademarks Copyright © PLANET Technology Corp. 2005. Content subjects to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will...

  • Page 3: Fcc Warning

    This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Revision PLANET Fast Ethernet Switch User's Manual FOR MODELS: GSD-503/GSD-504/GSD-803/GSD-804 Rev: 1.0(May.2005) Part No.: 2011-A33160-000...

  • Page 4: Package Contents

    1.2 How to Use This Manual This Fast Ethernet Switch User Manual is structured as follows: Chapter 2 Installation The chapter explains the feature, functionality and the physical installation of the Switch.
  • Page 5 100Base-TX 。 5/8-port 10/100Mbps Auto-Negotiation ports - 10/20Mbps, 100/200Mbps Auto-sensing 。 Compact size design for wall mount or desktop placement 。 High performance Store-and-Forward Switching Architecture 。 Runt and CRC filtering 。 Flow control (Back Pressure) supports in half-duplex mode 。...

  • Page 6: Product Specifications

    1.4 Product Specifications Model SW-502 Hardware Specification Network Ports 5 10/100Base-T RJ-45 MDI/MDI-X ports Dimensions (W x D x H) 159 x 100 x 28mm Weight (KG) 0.16 KG Power Requirement External Power adapter 12V 500 mA Switch Specification Switch Architecture...

  • Page 7: Installation

    502/SW-802 is the fancy-shape plastic models and just right for your network of 10 to 50 users. The SW-502/SW-802 Fast Ethernet Switch is a Simple and cost-effective, highly reliable network switch. And is the ideal device for bridging Ethernet to Fast Ethernet workgroups or networks.
  • Page 8 1K different MAC address and enables filtering and forwarding at full wire speed. 2.1.2 Switch Front Panel Figure 2-1 & 2-2 show the front panel and rear panel of SW-502 Figure 2-1 SW-502 front panel Figure 2-2 SW-502 rear panel...
  • Page 9 Lit: indicate the link through that port is successfu NK/ACT Green established. Blink: indicate that the switch is actively sending or receiving data over that port. ower Notice: 1. The device i s a power-required device, it means, it will not work till it is powered.

  • Page 10: Installing The Switch

    Note: This switch does not need software configuration. 2.2.1 Desktop Installation To install the switch on desktop, simply follow the next steps: Step1: Attach the rubber feet to the recessed areas on the bottom of the switch. Step2: Place the switch on desktop near a DC power source.
  • Page 11 RJ-45 tips. For more information, please see the Cabling Specification in Appendix A. Step5: Supply power to the s witch. A. Connect one end of the power cable to the switch. B. Connect the power plug of the power cable to a standard wall outlet.

  • Page 12: Switch Operation

    This information comes from the learning process of Ethernet Switch. 3.2 Learning When one packet comes in from any port, the Switch will record the source address, port no. And the other related information in address table. This information will be used to decide either forwarding or filtering for future packets.

  • Page 13: Store-And-Forward

    However, the switch is most commonly used to segment existing hubs, which nearly always improves overall performance. An Ethernet Switching can be easily configured in any Ethernet network environment to significantly boost bandwidth using conventional cabling and adapters.
  • Page 14 connection is established with another network device (usually at Power On or Reset). This is done by detect the modes and speeds at the second of both device is connected and capable of, both 10Base-T and 100Base-TX devices can connect with the port in either Half- or Full-Duplex mode.

  • Page 15: Troubleshooting

    Solution: Check the full duplex status of the Ethernet Switch. If the Ethernet Switch is set to full duplex and the partner is set to half duplex, then the performance will be poor. Why the Switch doesn't connect to the network...
  • Page 16 This page intentionally left blank!

  • Page 17: Switch's Rj-45 Pin Assignments

    Each port of the Switch supports auto-MDI/MDI-X detection. That means you can directly connect the Switch to any Ethernet devices without making a crossover cable. The following table and diagram show the...
  • Page 18 RJ-45 Connector pin assignment Contact Media Dependant Interface Tx + (transmit) Tx - (transmit) Rx + (receive) 4, 5 Not used RX – (receive) 7, 8 Not used The standard cable, RJ-45 pin assignment The standard RJ-45 receptacle/.connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded.
  • Page 19 2011-A33160-000...

This manual is also suitable for:

Sw-802
