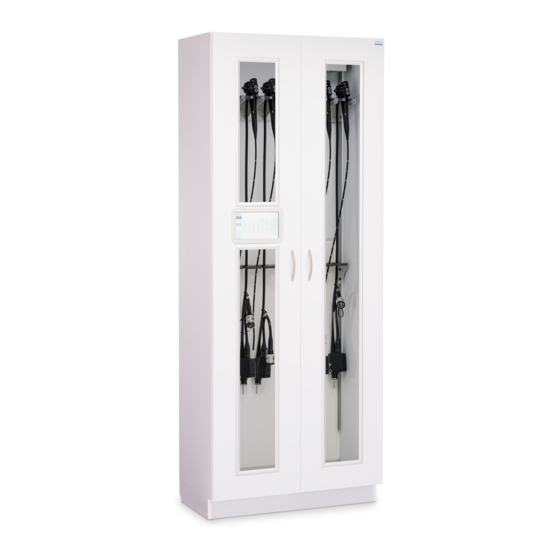

Ventaire

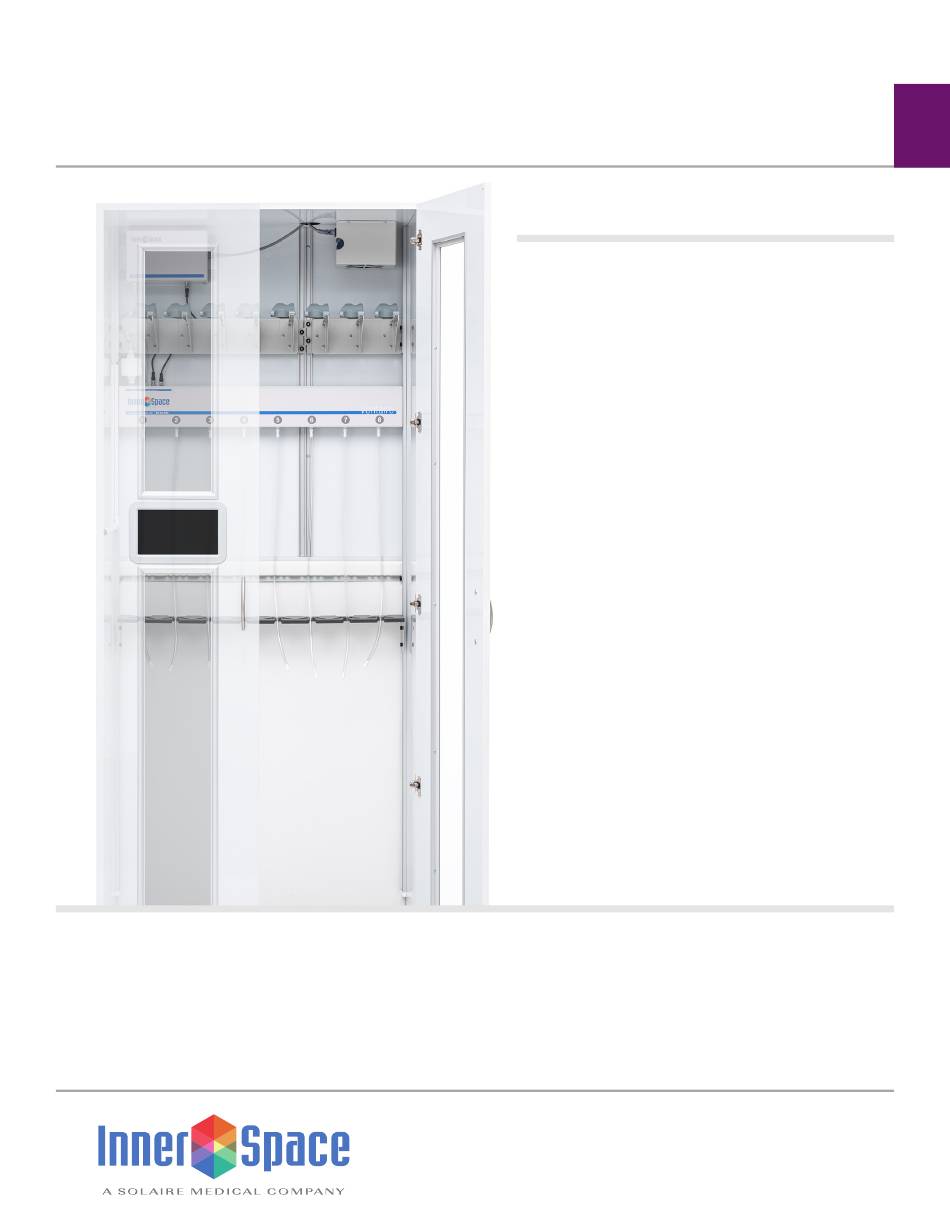

Retrofit Unit Installation
1
Attach Drying Components .............................................. Page 3
Replace Existing Door ..................................................... Page 5
Attach Compressor Components ...................................... Page 6
Attach Cable Raceway .................................................... Page 7
Attach Manifold Tubing and Power Cord ............................ Page 8
S t o r a g e s o l u t i o n s f o r h e a l t h c a r e
Advertisement
Table of Contents
Related Manuals for Solaire Medical Inner Space Ventaire Retrofit
Summary of Contents for Solaire Medical Inner Space Ventaire Retrofit
- Page 1 Ventaire Retrofit Unit Installation Attach Drying Components ..........Page 3 Replace Existing Door ............. Page 5 Attach Compressor Components ........Page 6 Attach Cable Raceway ............ Page 7 Attach Manifold Tubing and Power Cord ......Page 8 S t o r a g e s o l u t i o n s f o r h e a l t h c a r e...
- Page 2 Ventaire Retrofit Unit Installation Follow these instructions to install a Ventaire drying and tracking retrofit unit or Ventaire tracking retrofit unit to an Evolve cabinet with adjustable scope managers and cord retainers. Tools needed Included: 1. Compressor 10. Replacement door with •...
- Page 3 Ventaire Retrofit Unit Installation Attach Drying Components Step 3 Step 1 Remove the 5 screws from the underside of the cord retainer bracket, and then remove the cord retainer Remove endcaps from the bottom of the side rails and set aside Step 4 Attach the new cord retainer to the bracket using the 5 screws.
- Page 4 Ventaire Retrofit Unit Installation Step 6 Step 8 Hold the compressor in place and attach to the cabinet using the Slide the manifold cover onto the manifold and tighten with 6 screws 4 wood screws. Drill extender will be needed when securing the compressor with the 2 left screws Step 9 Slide the tube management strip onto the side rails in the groove in...
- Page 5 Ventaire Retrofit Unit Installation Step 10 Replace Existing Door Step 1 Slide the cord retainer bracket onto the side rails in the groove in the front of the cabinet and position at desired location. Use a level to To remove the existing door ensure the cord retainer is level, and then tighten the 4 thumb screws 1.
- Page 6 Ventaire Retrofit Unit Installation Step 2 Attach Compressor Components Step 1 Note that hinges on the retrofit door are shipped in the closed position To insert the compressor tube/filter 1. Insert the filter into the air filter port on the manifold 2.
- Page 7 Ventaire Retrofit Unit Installation Step 2 Attach Cable Raceway Step 1 To attach the compressor and manifold cable 1. Insert the 2' cable into the bottom of the compressor and Attach the cable raceway turn to the right until tight 1.
- Page 8 Marne, Michigan 49435 888-435-2256 phone 616-743-5944 fax innerspacehealthcare.com © 2022 Solaire Medical, Marne, MI 49435 ® InnerSpace is a registered trademark of Solaire Medical LLC, Marne, MI 49435 ™ Ventaire is a trademark of Solaire Medical LLC, Marne, MI 49435 0522 LIT-RETROFITKIT...
