Solaire Medical InnerSpace Installation Instructions

Scope Drying Retrofit Kit for Cabinets with Single Scope Manager
Follow these instructions to install a scope drying unit inside an Evolve cabinet with adjustable scope managers,
cord retainers, and AireCore construction.
Additional installation of filters, electrical components and connections, and training is provided onsite by a product
representative. Call your local sales representative or Customer Service at 888-435-2256 for assistance.
Tools needed:
• Drill with #2 Phillips bit or a Phillips screwdriver
• 9/64" Allen wrench
• Level
Attachment hardware included

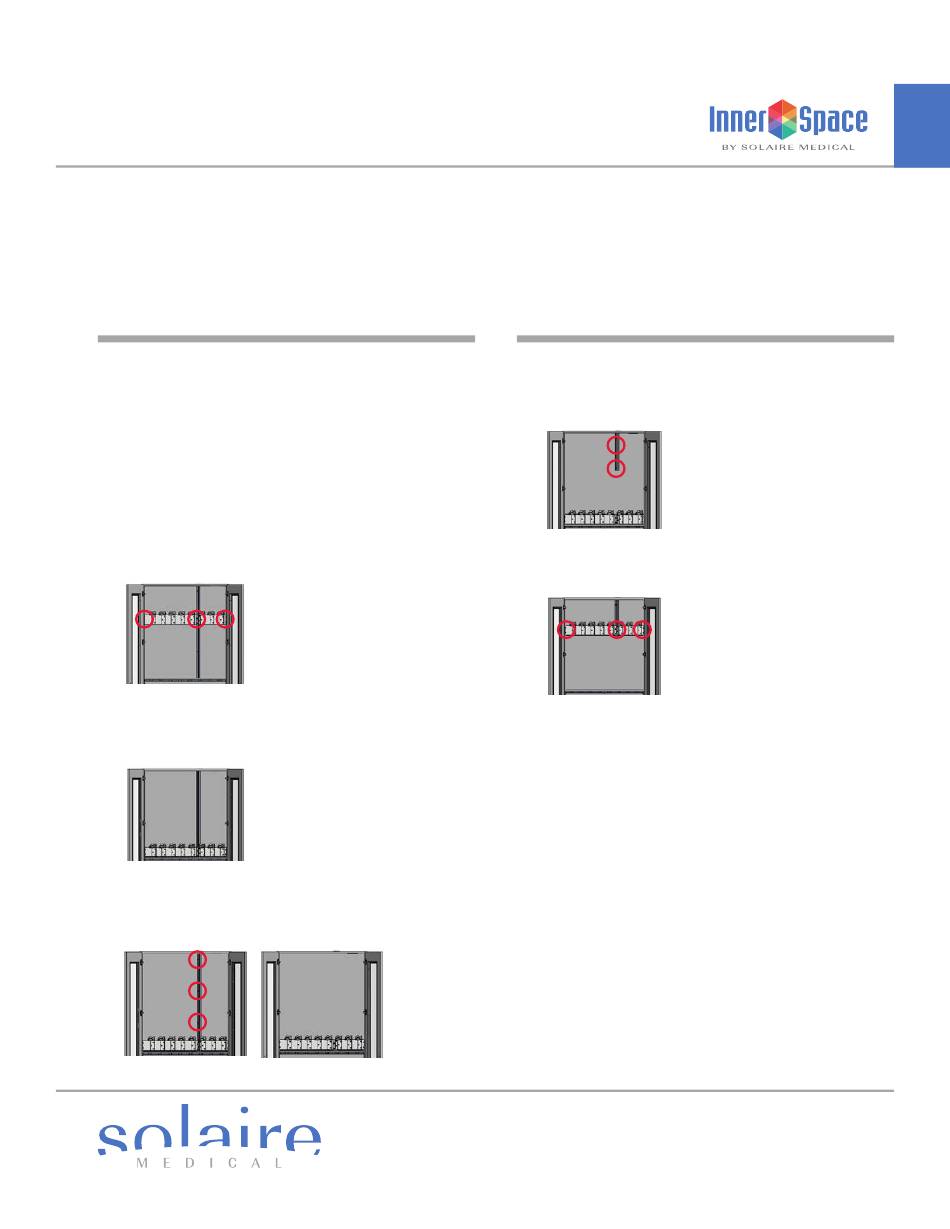

Step 1
• Loosen, but don't remove, the 8 screws on the scope manager module.
Dri Scope Retro t Kit Instructions
Tools Required: Phillips drive & 9/64" hex key
Dri Scope Retro t Kit Instructions
Tools Required: Phillips drive & 9/64" hex key
Loosen scope cue adjustment
screws (8X)
Step 2
• Slide the scope manager module down the center guide rail to the
lowest position in the cabinet.
Loosen scope cue adjustment
screws (8X)
Step 3
• Remove the 3 mounting screws on the center guide rail and
remove the rail.
Remove center guide rail
mounting screws (3X)
S t o r a g e s o l u t i o n s f o r h e a l t h c a r e
Remove center guide rail
Remove center guide rail
mounting screws (3X)
Remove center guide rail
Step 4
• Attach the retrofit guide rail to the top 2 holes in the cabinet
with 2 screws.
Attach retro t guide rail using the
same screw holes and screws (2X)
in back panel
Step 5
• Slide the scope manager module into place and tighten the 8 screws. Attach retro t guide rail using the
same screw holes and screws (2X)
in back panel
Slide scope cue into place and lock
them down by tightening the
screws (8X)
Slide scope cue into place and lock
them down by tightening the
screws (8X)
Step 6
• Use a level to ensure that the module height is even across the cabinet.
Continued on back
