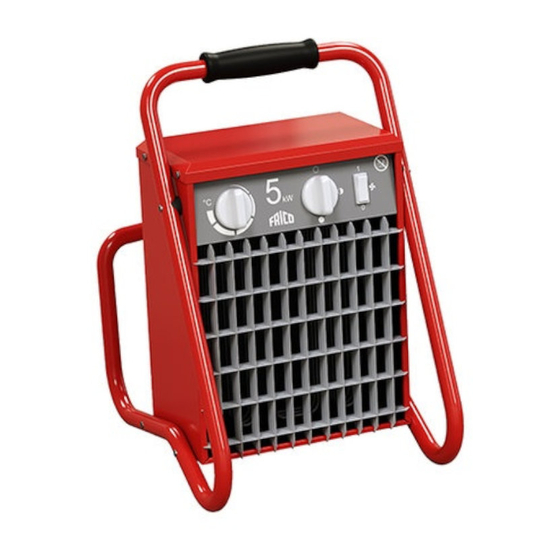

Original instructions Tiger 2-15 kW ..8 ..10 ..12 ..14 ..16 ..18 ..20 ..22 ..24 ..26 ..28 This product is only suitable for well insulated spaces or occasional use. Denna produkt är endast lämpad för välisolerade utrymmen eller sporadisk användning.
Page 2
NO: Tilbakestille overopphetingsvernet NO: Veggkonsoll for lagring av Tiger 2-15 kW FR: Réinitialisation de la protection anti-surchauffe FR : Console murale pour rangement du Tiger 2-15 kW DE: Zurücksetzen des Überhitzungsschutzes DE: Wandhalterung für Tiger 2-15 kW (bei NL: Resetten van de oververhittingsbeveiliging...
Tiger 2-15 kW Wiring diagrams Tiger 2 / 3 kW 230V~ Tiger 5 kW 230V~ ∼ ∼ 230V~ °C °C 2 kW 2 kW 2kW 3kW °C °C Item Type Cable IEC60309 Item Type Cable IEC60309 number number 271734 TIG21...
Page 4
Tiger 2-15 kW Wiring diagrams Tiger 3 / 5 / 9 kW 230V3~/400V3(N)~ ∼ 230V 3~ 400V 3N~ 400V 3~ °C °C EN: 230V-outlet socket at the rear Item Type Cable IEC60309 230V-outlet SE: 230V-uttag på baksidan number socket at NO: 230V uttak på...
Page 5
230V socket on the reverse and are equipped with P416-6 connectors. ) Also available as TIG21CH, supplied with plug for Switzerland. Tiger 2-9: Approved for 220V/1ph/60Hz and 380V/3ph/60Hz. Product performance for 220V/1ph/60Hz and 380V/3ph/60Hz will differ from stated data.
Page 6
230 V uttak på baksiden og er utstyrt med P416-6-kontakter. ) Fås også som TIG21CH, utstyrt med sveitsisk støpseltype. Tiger 2-9: Godkjent for 220 V/1-fase/60 Hz og 380 V/3-fase/60 Hz. Produktytelse for 220 V/1-fase/60 Hz og 380 V/3-fase/60 Hz avviker fra angitte data.
Page 7
) W Szwajcarii występuje także jako model TIG21CH dostarczany z kablem z wtyczką. Tiger 2-9: Produkt zatwierdzony dla zasilania 220 V/1 faza/60 Hz i 380 V/3 fazy/60 Hz. Wydajność produktu dla zasilania 220 V/1 faza/60 Hz i 380 V/3 fazy/60 Hz będzie się różnić od podanych danych.
°C Built-in thermostat with setting range 5–35°C. Application Tiger is a range of robust and compact fan heaters for professionals with high demands. Output is set via the output selector, The Tiger fan heater is portable. Tiger 2-9 kW for steps see Technical specifications.
Tiger 2-15 kW Safety Overheating • For all installations of electrically heated The fan heater is equipped with an overheat protection. If it is deployed due to overheating, products a residual current circuit breaker reset as follows: 300 mA for fire protection should be used.
Page 10
Main offi ce Frico AB Tel: +46 31 336 86 00 Industrivägen 41 SE-433 61 Sävedalen mailbox@frico.se Sweden www.frico.net For latest updated information and information about your local contact: www.frico.net...
