JVC LT-40C590 Quick Start Manual

Quick Start Guide

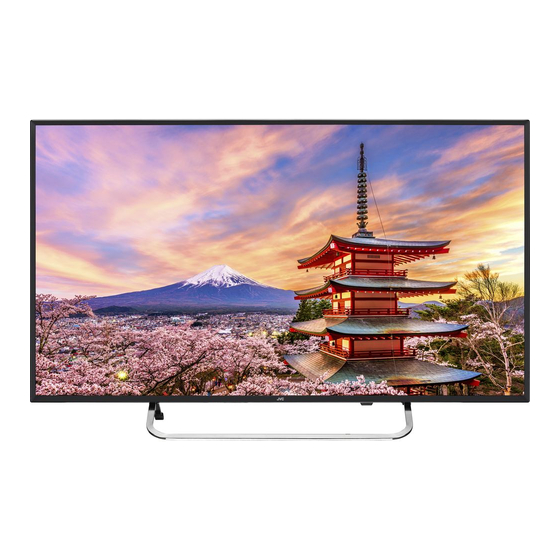

40" LED FULL HD TV
LT-40C590
Thank you
for purchasing your new JVC TV.
Your new TV incorporates the latest technology to enhance your viewing
experience. We would suggest that you allow about 20 mins for initial setup.
Please follow this guide for a successful first time installation.
The latest eco-friendly power-saving technology will switch off the TV if device is
left on and idle for 4 hours or it does not receive an input signal for serveral minutes.
Please refer to "Eco Friendly / Auto Standby Function" section of the instruction manual
for more detail.
For Help and Support Call
UK: 0344 561 1234
Ireland: 1890 818 575
1

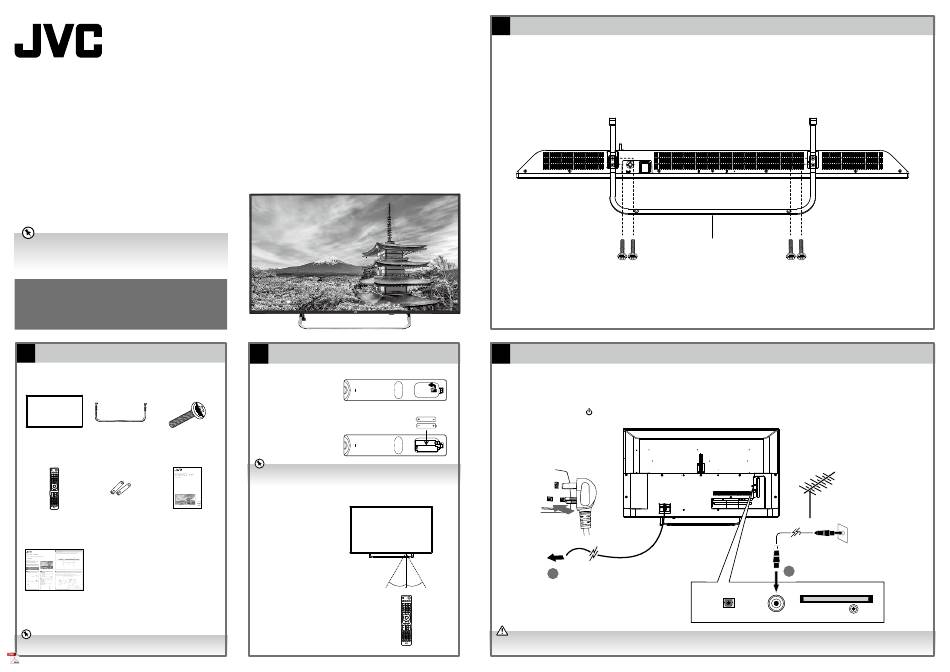

Unpacking
Remove all packaging from the TV. Retain the packaging. If you
dispose of it please do so according to any local regulations.
TV TV Stand Base Screw x 4
TITLE
ASPECT S.MODE P.MODE GUIDE
LIST
MENU INPUT
OK
BACK PROG EXIT
ANGLE
TV.RD
SETUP
FAV
HOLD REVEAL SUBPAGE INDEX
MENU
TEXT
CANCEL OK MIX SIZE
AUDIO ZOOM STEP
GOTO SLOW REPEAT A-B
Remote Control AAA Batteries x 2 Instruction Manual
Quick Start Guide
If items are missing, or damaged please contact Partmaster (UK only).
Tel: 0344 800 3456 for assistance.
2
Operating Your Remote Control
Installing Batteries
1. Press and lift the back
cover to open the
battery compartment of
the remote control.
2. Insert two AAA size
batteries. Close the
battery compartment
cover.
Install the batteries correctly by following the polarity (+ and -) indications in the
battery compartment.
Operation Range
Point the remote control
at the TV no more than 5
metres from the remote
control sensor on the TV and
within 60° in front of the
TV. The operating distance
may vary depending on the
brightness of the room.
30° 30°
5M
TITLE
ASPECT S.MODE P.MODE GUIDE
LIST
MENU INPUT
OK
BACK PROG EXIT
ANGLE
TV.RD
SETUP
FAV
HOLD REVEAL SUBPAGE INDEX
MENU
TEXT
CANCEL MIX SIZE
OK
AUDIO
ZOOM STEP
GOTO SLOW REPEAT A-B
3
Installing the Base Stand
1. Lay the TV down on a flat surface with the back side facing up, and ideally at the edge of a table so that the base of the TV slightly overhangs on it. Please
make sure a soft cushioned material (such as a towel or thick piece of foam) is placed beneath the screen. Leave the protective bag on your TV until you
have fully attached the TV stand.
2. Attach the TV stand to the TV. Align the screw holes, then secure with a screw driver (not included) using the 4 screws provided.
4
Connecting the Aerial and the Mains Socket
1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the RF (75Ω) socket at the rear right side of your
TV.
2. Connect the mains cable to the mains socket after you have completed all the connections.
3. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV.
4. In standby mode, press the button on the bottom of the TV or on the remote control to turn the TV on. The red LED indicator will turn off.
To the mains socket
2
• Do not connect the TV to the mains supply until you have completed all the connections.
• If you watch TV using a set-top box, simply connect your TV and set-top box via a HDMI cable and select HDMI in the Input Source menu.
TV Stand Base Front
(included)
OR
RF coaxial cable
(not included)
1
COMMON INTERFACE (CI)
Digital Audio Output
(optical) RF HEADPHONES
