INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE

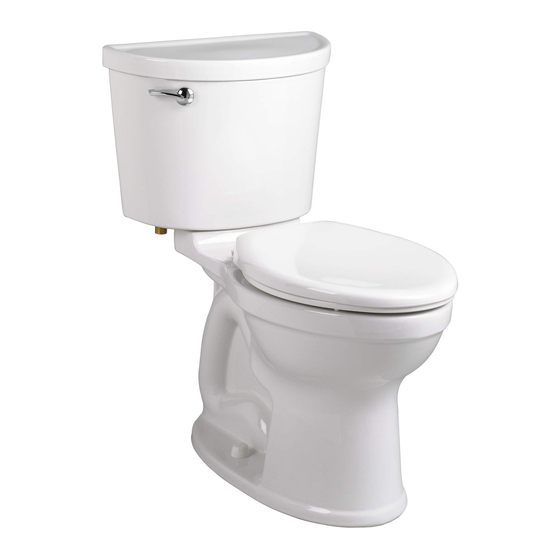

Champion
PRO 2-piece Toilet
®
211AA Series Right Height
211BA Series Right Height
211CA Series Elongated
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read
these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
TANK 4225A
BOWL 3195A RIGHT HEIGHT
BOWL 3195B RIGHT HEIGHT
BOWL 3195C ELONGATED
Wax Ring
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2019
Elongated
®
Round Front
®
EZ-INSTALL KIT INCLUDED WITH TANK
Tank To Bowl Gasket
ELONGATED
®
ROUND FRONT
®
EZ-INSTALL KIT INCLUDED WITH BOWL
T-Bolts with
Retainer (2)
Also includes Standard Bolt Caps (2)
SOLD SEPARATELY
Water Supply Line
Attachment Handles
Plastic Washers (2)
with Nuts (2)
Bowl-To-Floor
Bolt Caps (2)
Slow Close Toilet Seat
Knobs (2)
7301836-100 Rev. 5 8/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Champion PRO 211AA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for American Standard Champion PRO 211AA Series

  • Page 1 211CA Series Elongated Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
  • Page 2: Back-To-Back Installation

    BEFORE YOU START: If Removing An Existing Toilet Flush to remove water from tank; Turn Off Water Supply Clean Flange sponge remaining water from bowl before removing toilet. Caution: If leaving floor flange open for more than 1-2 hours, cover flange to prevent escaping sewer gases.
  • Page 3 Apply weight evenly. Hand tighten Do not move after only. Do not placement. Water overtighten. tight seal may break. NOTE: 1/4" EZ-BOLT AND CAP SHOWN. IF 5/16" BOLT USE STANDARD DISK AND CAP INCLUDED. Tighten handles alternately until the tank contacts the front and back of the bowl achieving china-to-china...
  • Page 4: Care And Cleaning

    WARNING: Do not use in-tank cleaners. These products can seriously corrode fittings in the tank. This damage can cause leakage and property damage. American Standard shall not be responsible or liable for any damage caused by the use of in-tank cleaners.
  • Page 5 INSTRUCTIONS D’INSTALLATION ET D’ENTRETIEN Champion Toilette 2 pièces PRO ® 211AA Séries Right Height Allongée ® 211BA Séries Right Height Devant Rond ® 211CA Séries Allongée Merci d’avoir choisi American-Standard... la référence en matière de qualité depuis plus de 100 ans. Afin de vous assurer que le produit est installé correctement, veuillez lire attentivement les instructions avant de commencer.
  • Page 6: Avant De Commencer

    AVANT DE COMMENCER : Si Vous Enlevez Une Toilette Déjà Installée Tirez la chasse Nettoyez la bride Fermez l’alimentation en eau pour vider l’eau du réservoir; épongez l’eau restante de la cuvette avant de retirer la toilette. Avertissement: Si la bride au sol demeure ouverte plus de 1 à...
  • Page 7 Appliquez du poids Serrez à la main uniformément. seulement. Ne Ne pas bouger la serrez pas toilette après l'avoir excessivement. placée. Le seau étanche risque REMARQUE : de briser. ILLUSTRATION : BOULON DE 1/4 PO À USAGE FACILE ET CAPUCHON. SI UN BOULON DE 5/16 PO EST REQUIS, UTILISER LE DISQUE...
  • Page 8: Entretien Et Nettoyage

    MISE EN GARDE : N’utilisez pas de nettoyants pour cuvette. Ces produits peuvent sérieusement corroder les raccords de tuyauterie du réservoir. Ces dommages peuvent entraîner des fuites et des dommages matériaux. American Standard n’assume aucune responsabilité pour tout dommage causé...
  • Page 9: Se Vende Por Separado

    211CA Series Alargada Gracias por seleccionar American Standard, el punto de referencia de la calidad por más de 100 años. Para asegurar que no haya problemas durante la instalación, lea atentamente estas instrucciones antes de comenzar (algunas instalaciones pueden requerir ayuda profesional). Asegúrese también de que su instalación cumple con los códigos locales.
  • Page 10: Antes De Comenzar

    ANTES DE COMENZAR: Si Está Quitando Un Inodoro Existente Cierre el suministro de agua Limpie la brida Descargue el inodoro para quitar el agua del tanque; saque con una esponja el agua restante de la taza antes de quitar el inodoro. Precaución: Si deja la brida del piso abierta por más de 1-2 horas, cubra la brida para...
  • Page 11 Aplique peso Apriete a mano uniformemente. No solamente. lo mueva después No apriete de la colocación excesivamente. ya que el sello impermeable podría romperse. Nota: Se muestra el perno EZ de 1/4" y la tapa. Si se usa el perno de 5/16"...
  • Page 12: Cuidado Y Limpieza

    ADVERTENCIA: No utilice limpiadores para el interior del tanque. Estos productos pueden corroer gravemente los accesorios en el tanque. Este daño puede causar fugas y daños a su propiedad. American Standard no será responsable ni sujeto a acción legal por cualquier daño causado por el uso de limpiadores dentro del tanque.

This manual is also suitable for:

Champion pro 211ba seriesChampion pro 211ca series
