Summary of Contents for Planar WS231

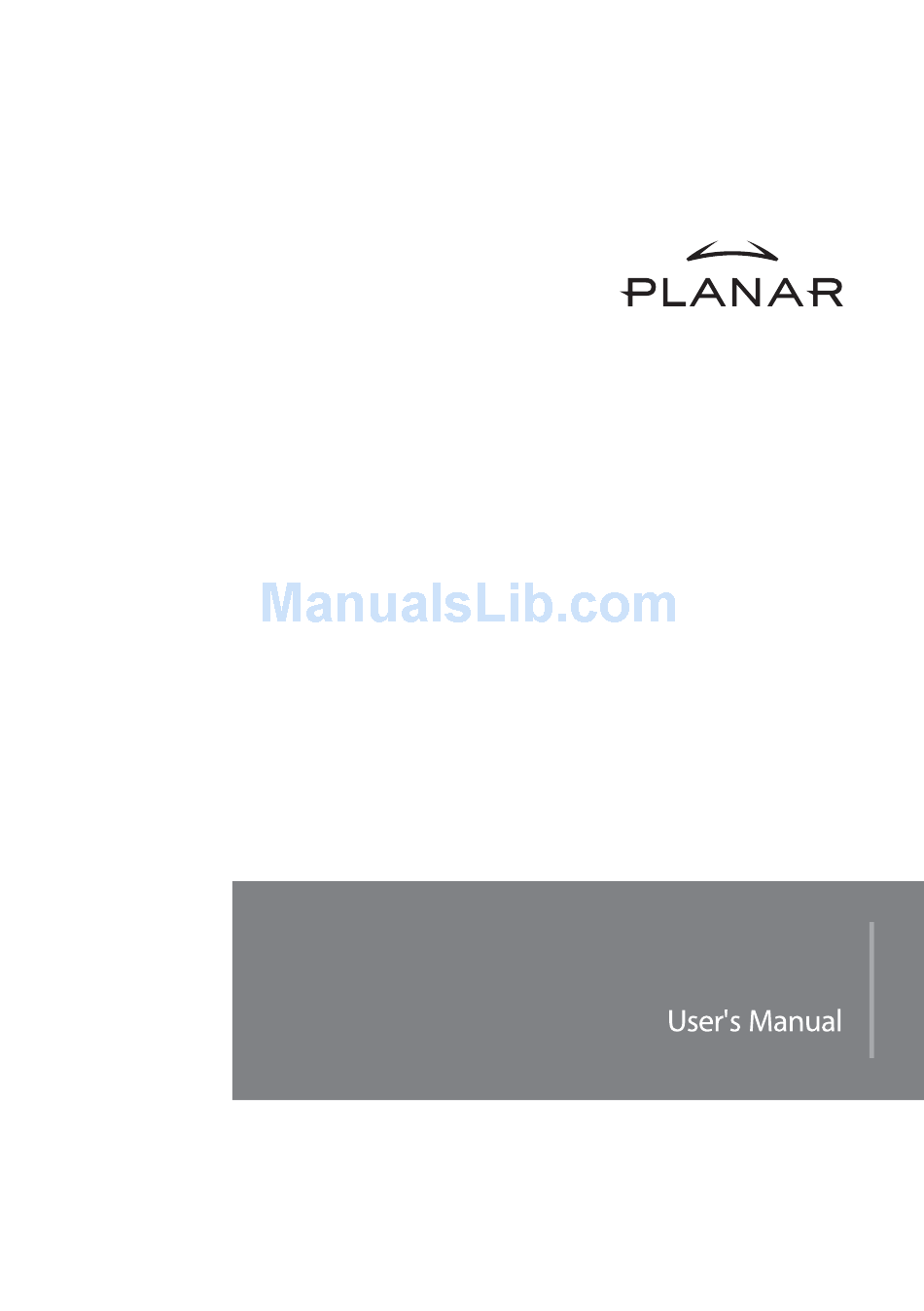

  • Page 1 WS231...

  • Page 2: Preface

    FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Radio Frequency Interference Statement

    User’s Manual CE mark for Class B ITE EN61000-3-2/1995; EN61000-3-3/1995, EN55024/1998, EN60950/1992+A1+A2+A3+A4+A11) Radio Frequency Interference Statement Warning: This is a Class B product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

  • Page 4: Important Safety Instructions

    Important Safety Instructions Please read the following instructions carefully. retained for future use. 1. To clean the LCD Monitor screen, first, make sure the Monitor is in the power off mode. cleaning it. Do not spray liquid cleaners directly onto the unit. Stand away from the LCD Monitor and spray cleaning solution onto a rag.

  • Page 5: Table Of Contents

    User’s Manual PREFACE... I TABLE OF CONTENTS... IV CHAPTER 1 ...1 Your new LCD Monitor!... 1 Unpacking... 1 Identifying Components... 2 The LCD Monitor — Front View... 2 The LCD Monitor — Rear View... 3 Adjusting the Viewing Angle ... 4 Connecting AC Power ...

  • Page 6: Chapter 1

    Your new LCD Monitor! Your LCD Monitor has been designed to be versatile, ergonomic and user-friendly. The LCD Monitor is capable of displaying most standards, from 640 x 480 VGA to 1600 x 1200 UXGA. The digital controls located on the front panel allow the user to easily adjust the Monitor’s display parameters.

  • Page 7: Identifying Components

    User’s Manual If you find that any of these items are missing or appear damaged, contact your dealer immediately. Do not throw away the packing material or shipping carton in case you need to ship or store the LCD Monitor in the future. Identifying Components The LCD Monitor has been designed to provide easy access to all controls and peripheral ports.

  • Page 8: The Lcd Monitor - Rear View

    4. Power Button and Port Select Push the button to turn the Monitor ON or OFF (push and hold the button for 2 seconds to switch between Analog or Digital input mode). 5. Power-On Indicator This LED indicator lights when the power is on. The LED indicator will blink when the LCD Monitor is in Power Saving mode.

  • Page 9: Adjusting The Viewing Angle

    User’s Manual Adjusting the Viewing Angle Your LCD Monitor is designed to allow you to adjust it to a comfortable viewing angle. Please see Figure 1-3. Figure 1-3: Angle Settings Connecting AC Power Please refer to the following instructions for connecting AC power to the LCD Monitor. Plug the female end of the power cable into the AC power connector.

  • Page 10: Connecting Video

    Figure 1-4: Connecting Power to the LCD Monitor Connecting Video 1. Turn off your PC and the LCD Monitor before connecting your LCD Monitor to the computer. 2. Connect one end of the VGA signal cable to the PC’s D-sub VGA port and the other end to the monitor VGA port.

  • Page 11: 6Power Management System

    User’s Manual Figure 1-5: Connecting the LCD Monitor to the PC 3. If your PC has a graphic card with a 24-pin DVI connector, you may connect it with the Digital 24-pin DVI signal cable. 4. Make sure the signal cable head is securely connected to the VGA port of your PC.

  • Page 12: Chapter 2

    The LCD Monitor’s Display Controls The LCD Monitor features an intuitive, menu-driven, On-Screen Display (OSD). You can access the OSD any time when the PC is powered on. If the PC is in a power saving mode, or is powered off, the OSD is inaccessible. The OSD make the adjusting display settings quick and simple.
  • Page 13 User’s Manual The submenus for each are further described below: Display Setting sub Menu Figure 2-2: The Display Setting sub Menu Description: CONTRAST BRIGHTNESS GRAPH/TEXT AUTO ADJUST EXIT Geometric sub Menu You should only use this menu if the result of the Auto Adjust function is not satisfactory. Figure 2-3: The Geometric sub Menu Contrast adjustment.
  • Page 14 Description: SCALE CLOCK PHASE H-POSITION V-POSITION EXIT OSD Adjust sub Menu Figure 2-4: The OSD Adjust sub Menu Description H-POSITION V-POSITION LANGUAGE INFORMATION RESET EXIT Full Screen or native display selection. To adjust the pixel alignment of the display. To adjust the display for focus and clarity. Horizontal position adjustment.
  • Page 15 User’s Manual Color temp. Sub Menu Description: 9300 6500 EXIT Figure 2-5: The Color temp. Menu CIE 9300 K color. CIE 6500 K color. User color R-Sub contrast adjustment. User color G-Sub contrast adjustment. User color B-Sub contrast adjustment.
  • Page 16 Digital Input Mode (use 24 pin DVI port): Main Menu Description: DISPLAY OSD-ADJUST EXIT The submenus for each are further described below: Display Setting sub Menu Figure 2-7: The Display Setting sub Menu Figure 2-6: The OSD Main Menu Display Setting parameters including Contrast, Brightness, Language, and Scale.
  • Page 17 User’s Manual Description: CONTRAST BRIGHTNESS LANGUAGE SCALE EXIT OSD Adjust sub Menu Figure 2-8: The OSD Adjust sub Menu Description H-POSITION V-POSITION INFORMATION RESET EXIT Note: 1. When there is no input signal When the monitor is ON and there is no Video signal received, the following message will be displayed.

  • Page 18: The Hotkey Descriptions

    (Analog mode) Figure 2-9: When there is no input signal The hotkey descriptions Main Menu pop up /Auto-Adjust Hotkey Press this button to activate the OSD Main Menu. Press and hold this button for 2 seconds to activate the Auto Adjust feature.

  • Page 19: Tft Lcd Monitor Specifications

    TFT LCD Monitor Specifications Model LCD Panel Control Functions Power On-Screen Display (OSD) Display Area (mm) Display Colors Video Interface Scanning Frequency H/V, Hz (Analog mode) Technical Information Software switch with LED indicator DISPLAY--------------CONTRAST/BRIGHTNESS/AUDIO VOLUME /GRAPH./TEXT/AUTO ADJUST GEOMETRIC--------SCALE/CLOCK/PHASE/H-POSITION /V-POSITION OSD ADJUST-------OSD H-POSITION/OSD V-POSITION /LANGUAGE/INFORMATION /RESET COLOR---------------USER (9300/6500)/R/G/B LANGUAGE---------ENGLISH/日本語/DEUTSCH/FRANÇAIS...
  • Page 20 Model Scanning Frequency H/V, Hz (Digital mode) Power Management Power Consumption (ON mode/OFF mode) Dimensions WxHxD mm Net Weight (Kg) Approx. Power Supply Options Environment Audio (Two 1 Watt speakers with amplifier) Regulatory FMT2315U 30-80kHz 56-85 Meets VESA DPMS 88W (max.)/5W (max.) (Measured from AC inlet) 568 x 570 x 240 15 Kg...

  • Page 21: Supported Timing

    Timing for Model FMT2315U (UXGA Resolution) Standards Resolution NEC PC98 640x400 NEC PC98 640x400 MAC 13” 640x480 mode MAC 16” 832x624 mode MAC 17” 1024x768 mode 640x350 VESA 640x350 640x400 VESA 640x400 640x480 VESA 640x480 VESA 640x480 VESA 640x480 VESA 800x600 SVGA 800x600...
  • Page 22 Item Standards Resolution VESA 1280x960 VESA 1280x1024 VESA 1280x1024 VESA 1280x1024 1024x768 1024x768 1024x768 1280x1024 1280x1024 VESA 1600x1200 *A=Analog Mode; D=Digital Mode *Once a mode is optimized, there is no need to make any further adjustment as long as the VGA card remains unchanged. *Specifications are subject to change without notice.

  • Page 23: Troubleshooting Procedures

    Troubleshooting Procedures This LCD Monitor was pre-adjusted in the factory with standard VGA timing. Due to output timing differences among various VGA cards, you may initially experience an unstable or unclear display when a new display mode or new VGA card is selected. This LCD Monitor Supports Multiple VGA Modes.
  • Page 24 PROBLEM: There is no LCD Display If there is no display on the LCD, please perform the following steps: 1. Make sure that the power indicator on the LCD Monitor is lit, all connections are secure, and the system is running on the correct timing.
  • Page 25 02/04 6200507210...
