8
D
C
B
Shelter Information
Width (Center - Center)
22'-0"
10'-11 3/16"
Height (Ground - Peak)
Length (Center - Center)
20'-0"
Sidewall Height
N/A
A
Rafter Spacing
5'
Rafter Tubing
1.90" Round
8
6
7

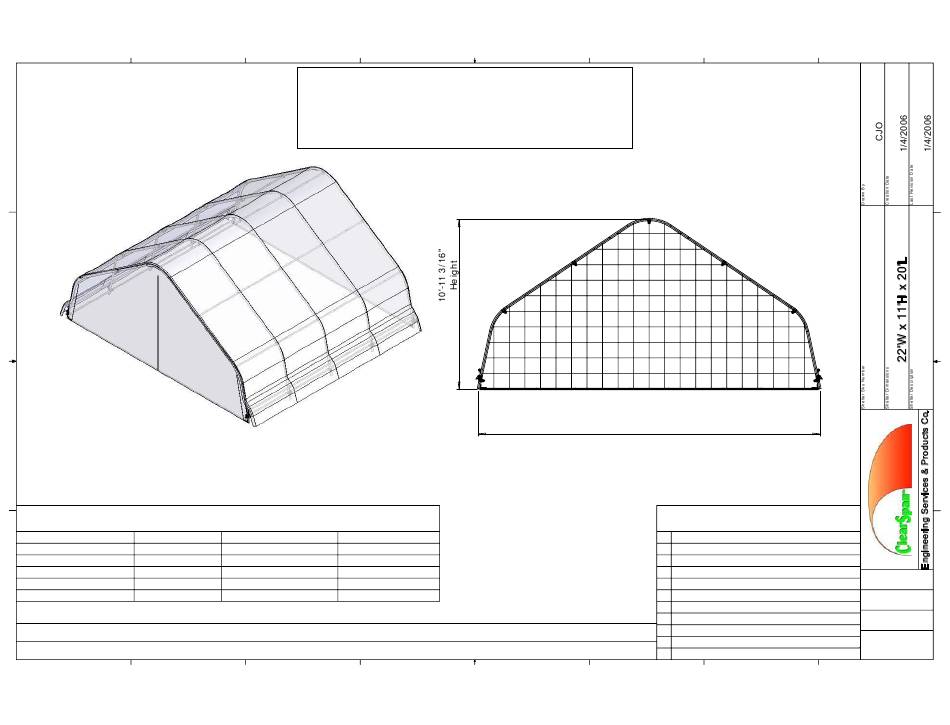

CLEARSPAN HOUSING SHELTER FOR 10-15
PEOPLE
2 CAR GARAGE
ISOMETRIC
Purlin Tubing & # of Runs
1.315" Round, 7 Runs
Cover Info
7.5 OZ SOLID S/W
Cover Conduit Tubing
1.315" Round
End Wall Door
#' x #'
End Wall Tubing
Base Conduit-1.315"
End Panel Info
7.5 OZ Frt: 3-zip Bck:Pln
7
6
5
4
105595
Important: Read the instruction
manual and the additional
comments on the last page of
this document before you begin
construction.
5
4
3
22'-0"
Width
FRONT
Grid Represents 12" Squares
CONTENT GUIDE
Only Applicable Pages Are Included
A
Title
Front Profile
B
C
Side Profile
D
Connection Call-Out
Connection Details
E
F
End Framing
G
Rafter Pipe Details
Cover and End Panel Details
H
I
New or Special Components
J
B.O.M.
K
Information
3
2
1
Design Approval
Manger Approval
Engineering Approval
A1-1.0
2
1
D
C
B
A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ClearSpan 105595
Summary of Contents for ClearSpan 105595
- Page 1 CLEARSPAN HOUSING SHELTER FOR 10-15 105595 PEOPLE 2 CAR GARAGE 22'-0" Width ISOMETRIC FRONT Grid Represents 12" Squares CONTENT GUIDE Shelter Information Only Applicable Pages Are Included Important: Read the instruction Width (Center - Center) 22'-0" Purlin Tubing & # of Runs 1.315"...
- Page 2 NOTE: All purlins are connected to the end FRONT PROFILE rafter using end purlin connectors Purlins are connected to mid rafters using cross connectors. Purlin Connection (center of shelter) Purlin Connection (middle of straight rafter) 22G1903 Purlin Connection (5' from ground) 190S099 190S099 22G1901...
-
Page 3: Side Profile
SIDE PROFILE Ratchets are attached on the sides of the rafters labled with an R 5'-0" Rafter Spacing 20'-0" Length Purlin Run & 131S075 131S075 131S075 131P0255 Cover Conduit Design Approval Manger Approval Engineering Approval C1-1.0... - Page 4 CONNECTIONS Purlin-Mid Rafter Connection E1-1.0 View 2 Purlin-End Rafter Connection E1-1.0 View 4 Base Rail Rafter Connection E1-1.0 View 3 Design Approval Ratchet-Rafter Connection Manger Approval E1-1.0 View 1 Engineering Approval D1-1.0...
- Page 5 CONNECTION - DETAILS Mid Rafter Rafter Ratchet Cross Connector Tek Screw Purlin VIEW 1 VIEW 2 RATCHET - RAFTER PURLIN - MID RAFTER Rafter Leg End Rafter QH1330 Base Rail Purlin Purlin End Clamp IMPORTANT: Base rail is installed with the end panel. Rail is placed partially in panel pocket.
- Page 6 RAFTER PIPE DETAILS 59 9/16" 22G1901 22G1903 22G1903 - VIEW 2 22G1901 - VIEW 1 1.90 / 14GA. DIA. / GA. DIA. / GA. 1.90/14GA 70.5" PRE-BEND 68.25" PRE-BEND TYPE Swaged TYPE Plain PT. TO PT. 68-5/8" PT. TO PT. 59-9/16".
- Page 7 MAIN COVER DETAILS QC105595 OVER THE TOP: 399 1/8" 22'-1 11/16" Design Approval Manger Approval Engineering Approval H1-1.0...
- Page 8 FRONT END PANEL DETAILS Front end Panel 3 - Zipper QE105595Z3 Back end Panel Plain QE105595Z0 NOTE: Back end panel does not include zippers. Back end panel is plain. Middle Zipper Left Zipper Right Zipper 10'-0" 10'-0" Design Approval Manger Approval Engineering Approval H2-1.0...
- Page 9 INFORMATION Additional Comment These prints identify and show the main components and connections for this building. Length, width, and other important dimensions are also presented. To best understand how to construct this building, the information contained within these pages must be used with the instruction manual shipped with the building.
- Page 10 CLEARSPAN VALUE LINE ™ ClearSpan™ House Shelter for 10-15 people Photo may show a different but similar model. STK# DIMENSIONS ©2008 ClearSpan™ All Rights Reserved. Reproduction 105595 22' W x 11' H x 20' L is prohibited without permission. Revision date: 03.10.08...
-
Page 11: Safety Precautions
Never erect the structure under power lines. BEGIN TO ASSEMBLE THE SHELTER. • Identify whether underground cables and pipes are Thank you for purchasing this ClearSpan™ shelter. When present before preparing the site or anchoring the properly assembled and maintained, this product will structure. -
Page 12: Assembly Procedure
These words and phrases are common to most joints and to fasten brackets to rafters. ClearSpan™ shelters and identify the different parts of the shelter. (Some are used in this document. Others may not apply to this particular shelter.) These terms describe the shipped parts and can also be found on the materials list/spec sheets included with the shipment. -
Page 13: Required Tools
CLEARSPAN VALUE LINE ™ REQUIRED TOOLS The following list identifies the main tools needed to Space below is reserved for customer notes. assemble the shelter. Additional tools and supports may be needed depending on the structure, location, and application. •... - Page 14 CLEARSPAN VALUE LINE ™ The following graphics and photos will help you identify the different parts and show you how they are used. (Not all parts are shown.) FA4482B Tek Screw CC6214 104074 Fabric Clips Bracket QH1330 102547 102857 Angle Bracket...
- Page 15 House Style Two-Car Garage OVERVIEW This section is an overview of the process for assembling your ClearSpan Housing Shelter. For details, please see section, Assembling the ClearSpan Housing Shelter Components. See illustration below to identify main parts of shelter. Locate the required parts for each assembly procedure.
- Page 16 CLEARSPAN VALUE LINE ™ LAY OUT THE BUILDING SITE ASSEMBLING THE HOUSE STYLE COMPONENTS After the site is prepared, identify the location of the shelter corners helps to square the frame after it is assembled. NOTE: Assistance is required to assemble the shelter.
- Page 17 CLEARSPAN VALUE LINE ™ RAFTER ASSEMBLY (CONTINUED) ASSEMBLE AND PRE-MARK THE PURLINS Pre-marking the purlins speeds the assembly process With the main rafter pipes seated at each joint and the and eliminates the need to measure each purlin as it is rafter positioned on a flat surface, secure each joint installed.
-
Page 18: Frame Assembly
CLEARSPAN VALUE LINE ™ NOTE: In the previous photo, ropes (identified by white FRAME ASSEMBLY lines for clarity) were used to temporarily anchor the Gather the parts: rafter in place. For this first end rafter, all temporary bracing must remain in place until other rafters are set •... - Page 19 CLEARSPAN VALUE LINE ™ After tightening the cross-connector, install a Tek screw FRAME ASSEMBLY (CONTINUED) (#FA4482B) through the cross-connector and into the With the purlin in position, tighten the clamp at the peak purlin. Position the Tek screw so that it also secures the of the end rafter as shown below.
- Page 20 CLEARSPAN VALUE LINE ™ To this point, the assembled frame includes two rafters FRAME ASSEMBLY (CONTINUED) and three purlins as shown. Align the cross-connector with the 102857 clamp on the end rafter that was slid onto the rafter during assembly.
- Page 21 CLEARSPAN VALUE LINE ™ Continue the frame assembly by setting the next rafter Move to the lower end of the rafters and position in place. the bottom purlin 10'' up from the finished grade. 1/2'' Continue to add the cross-connectors and the pre-...
- Page 22 CLEARSPAN VALUE LINE ™ Tape all rafter splices with duct tape to protect the main SQUARING THE ASSEMBLED FRAME cover when it is installed. If the Lay Out the Building Site procedure was completed as presented near the beginning of this document, use the...
- Page 23 CLEARSPAN VALUE LINE ™ On the zippered end panel, insert the end conduit END CONDUIT ASSEMBLY through the two side panels of the end panel (as shown Gather the parts: below) and not through the door sections. • Pipe 1.315'' x 45.5'' plain •...
- Page 24 CLEARSPAN VALUE LINE ™ ATTACH END PANEL ASSEMBLIES Gather the parts: Space below is reserved for customer notes. • End panel assemblies • Fabric clips (Divide clips equally for both end panels) • Tek screws • Measuring tape and scissors...
- Page 25 CLEARSPAN VALUE LINE ™ Assemble two main cover conduits. Start each conduit PREPARE MAIN COVER assembly with one plain pipe and add swaged pipes to Gather the parts: arrive at the correct length. • Ratchets (1" 4000lb) Locate all sections of pipe needed to assemble •...
- Page 26 CLEARSPAN VALUE LINE ™ Once the main cover is pulled into position, center the ATTACH MAIN COVER cover on the frame and remove the ropes. Loosely Gather the parts: secure the ends of the cover to the ratchets attached to the end panel conduits.
- Page 27 Fold the skirt of main cover down and over the ratchets to complete the installation of the main cover. NOTE: With the exception of Truss Arch buildings, ClearSpan™ shelters and greenhouses do not have any tested loading criteria. Revision date: 03.10.08...
- Page 28 CLEARSPAN VALUE LINE ™ QUICK START GUIDE 22' Wide House Style Two-Car Garage 22'-0" Width FRONT Grid Represents 12" Squares Revision date: 03.10.08...
- Page 29 CLEARSPAN VALUE LINE ™ Revision date: 03.10.08...
- Page 30 CLEARSPAN VALUE LINE ™ Revision date: 03.10.08...
- Page 31 CLEARSPAN VALUE LINE ™ Revision date: 03.10.08...
- Page 32 CLEARSPAN VALUE LINE ™ Revision date: 03.10.08...
