Summary of Contents for Foscam R3

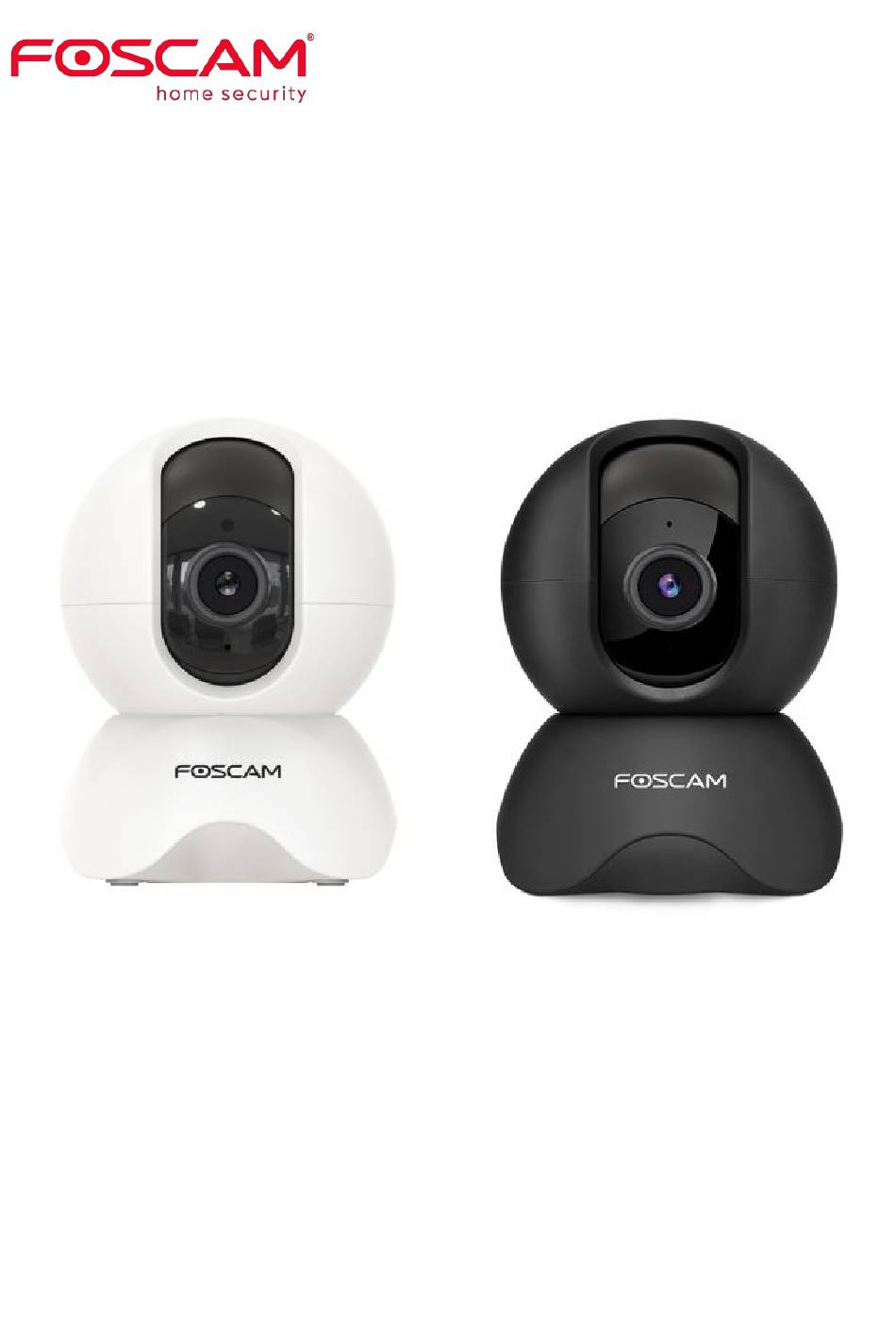

- Page 1 User Manual User Manual Wireless IP Camera Model: R3 R5 X3 X5 X3E V1.0...
-
Page 2: Table Of Contents
1 Overview..................................... 2 1.1 Key Features................................2 1.2 Read before Use..............................3 1.3 Packing Contents..............................3 1.4 Physical Description.............................. 3 1.5 SD Card Management............................4 1.6 Add Device: Connection via the Foscam App....................5 1.7 Installation................................5 2 Default Parameters................................6 3 Specification..................................7... -
Page 3: Security Warning
Security Warning Please change the password of your doorbell regularly, using a combination of numbers, letters and special characters. We recommend that you regularly update your doorbell to the latest available software and firmware versions to help ensure the best experience for your doorbell. -
Page 4: Overview
1 Overview Welcome to use our product, Foscam Camera. Foscam Camera is an integrated IP Camera with a color CMOS sensor enabling viewing in High Definition resolution.It combines a high quality digital video camera, with a powerful free Foscam Video Management Software，to bring clear video to your desktop from anywhere on your network or over the APP. -
Page 5: Read Before Use
● IP Camera × 1 ● Mounting Platet × 1 ● AC Adapter × 1 ●USB Power Cable× 1 ● Quick Setup Guide × 1 ● Ethernet Cable× 1（Only X3 X5） ● Expansion Screws × 1 1.4 Physical Description X3 X5: R3 R5:... -
Page 6: Sd Card Management
Lens: Fixed focus lens Microphone: Built-in Microphone. Speaker: Built-in speaker LAN: 10/100 Mbps RJ-45 port for wired connection(Only support X3 X5 ) Power : : DC 5V/1.5A or DC 5V/2A Power supply. Reset: Press and hold on the reset button for 3 seconds. Releasing the reset button, the password will back to the factory default administrator password. -
Page 7: Add Device: Connection Via The Foscam App
Micro SD Card may be cannot work well.When you re-install the cover, please ensure the tightness with the camera. 1.6 Add Device: Connection via the Foscam App Scan the QR code below to download and install the Foscam APP. Please refer to the Quick Setup Guide. 1.7 Installation Please refer to the Quick Setup Guide. -
Page 8: Default Parameters
2 Default Parameters Default network parameters IP address: obtain dynamically Subnet mask: obtain dynamically Gateway: obtain dynamically... -
Page 9: Specification
4pcs SMD IR-LEDs Night mode Automatic modes Night visibility Input/Output Two-way audio,build-in microphone and speaker Audio Audio Compression PCM/ AAC Ethernet R3:N/A, X3: YES Wireless Standard IEEE802.11b/g/n IEEE802.11b: 11Mbps(Max.); Data Rate IEEE802.11g: 54Mbps(Max.); IEEE802.11n: 150Mbps(Max.). Network Wireless Security WPA, WPA2... - Page 10 Power Supply Micro USB 5V/1.5A or 5V/2A Power Power Consumption 7.5Watts (Max.) Dimension(LxWxH) 83(L)x76 (W)x114 (H) mm Physical Net Weight 186g Operating Temperature -10°C~ 50°C (14°F ~ 122°F) Operating Humidity 20% ~ 85% non-condensing Environment Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Storage Humidity 0% ~ 90% non-condensing Certification...
- Page 11 -10°C~ 50°C (14°F ~ 122°F) Operating Humidity 20% ~ 85% non-condensing Environment Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Storage Humidity 0% ~ 90% non-condensing Certification CE, FCC, RoHS,WEEE For other parts, please refer to the “FOSCAM Camera User Manual”...
