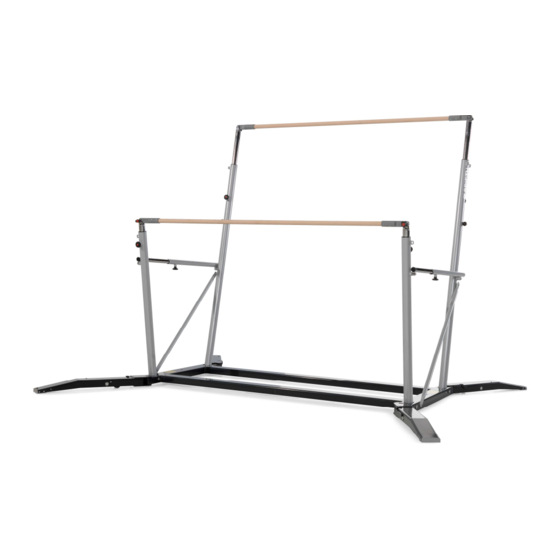

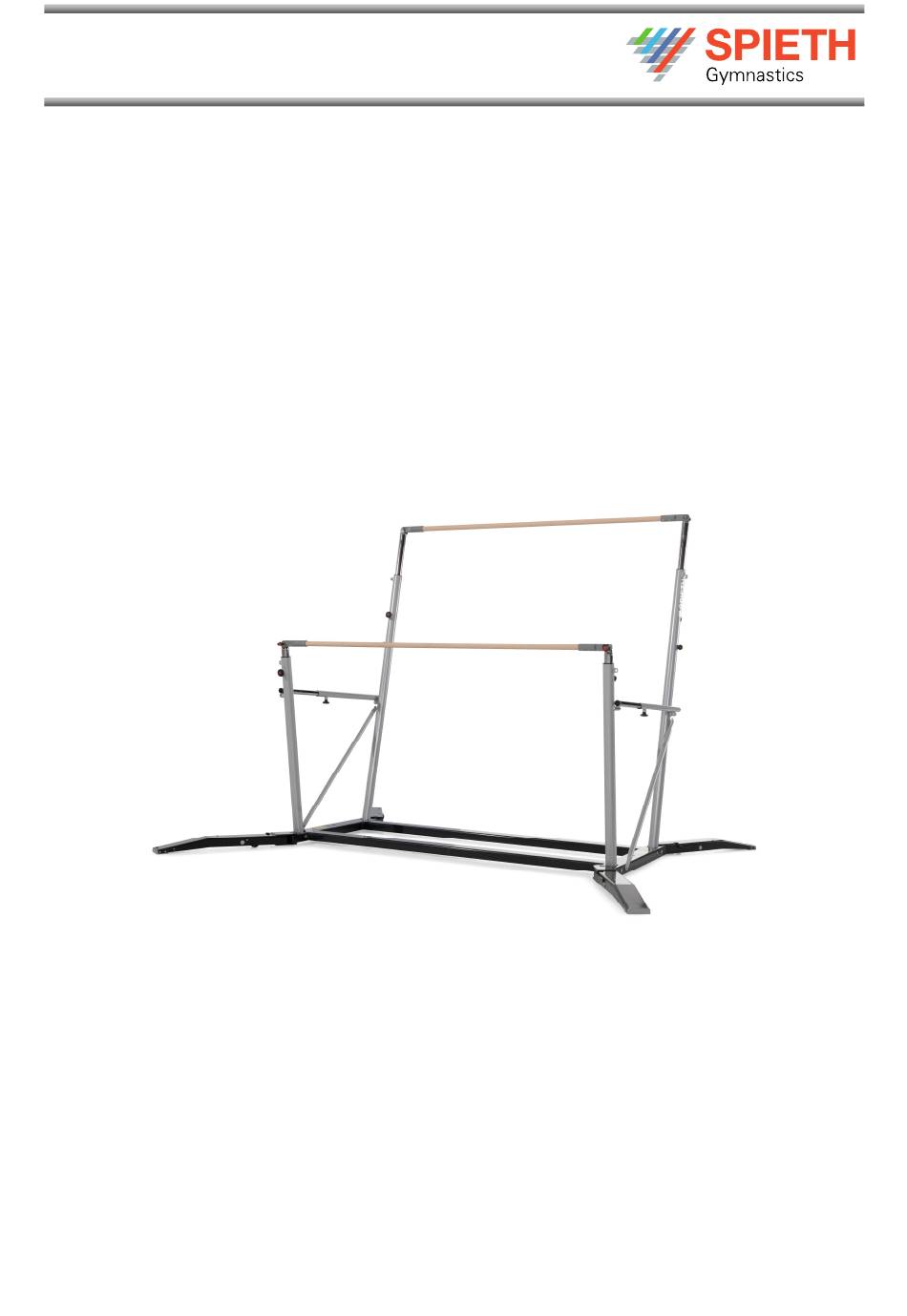

- Page 1 Assembly and user manual ‘Club’ Uneven bars stand alone 1383124 Contact: www.spieth-gymnastics.com info@spieth-gymnastics.com...
-
Page 2: Safety Regulations
Assembly and user manual AFETY REGULATIONS WARNING In order to reduce the risk of injury and to assure secure functioning of the (gymnastic)apparatus, rules mentioned below are to be strictly followed: 1. Use this apparatus only under the supervision of a trained and qualified instructor. - Page 3 Assembly and user manual SERS The mounting and storing of this device may only be executed by competent adult persons, who have read and understood the safety regulations of this manual. ORPORATE OCIAL ESPONSIBILITY During the development and design of our apparatus and sporting equipment we are concerned about your safety but we also consider the environment and society.
- Page 4 Assembly and user manual Lay the base frame on a flat surface and carefully place the uprights in the therefore designed cavities. Make sure the mounting points for the width adjustment point outwards. When the upright is in position, place bushes in the base frame, on both sides of the upright.
- Page 5 Assembly and user manual In order to mount the diagonal distance interlock to the high upright, use a M10x20 button head bolt (incl. Loctite sealing) with a washer M10 and for mounting it to the lower upright, use a M10x25 button head bolt (incl. Loctite sealing) with a washer M10.
- Page 6 Assembly and user manual Mount the width adjuster to the uprights using button head bolts M10x20 with washers M10 and fasten them tightly. Make sure the lever is always positioned on the lower upright. Position the rail above the slot in the clamping head.
- Page 7 Assembly and user manual In order to adjust the height of the rails, turn the grip counter clockwise to unlock and pull him out. For extra support when adjusting the height, there is a knob on the outside. The uprights are equipped with a supportive spring, inside the upright.
- Page 8 Assembly and user manual For official FIG height use the number indicated with dashes on either upright. F.I.G –Settings 1800 Upright short 1700mm Width adjuster -16- 1800mm Upright high 2500mm 2500 1700...
- Page 9 Assembly and user manual Maintenance instructions Check if the stainless steel rail holders are provided with a nylon disc. Grease the rail holders (by using Vaseline). It is absolutely forbidden to use sandpaper when cleaning the rails. Remove magnesia only when the rails are dry, to prevent that the soft parts of the veneer will be removed as well.
