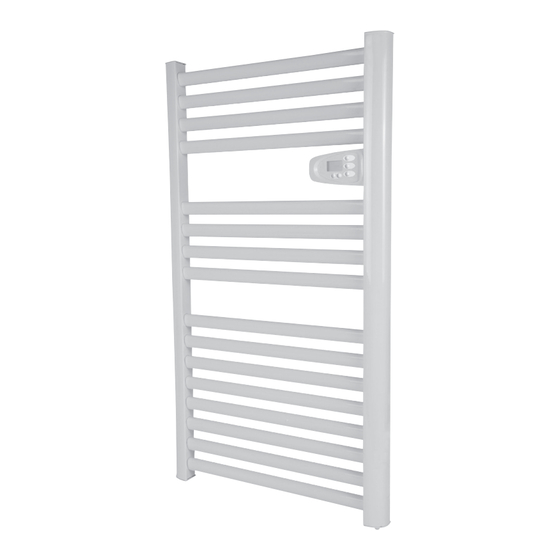

Ladder towel rail with programmable thermostat
Hide thumbs
Table of Contents

Advertisement

Quick Links

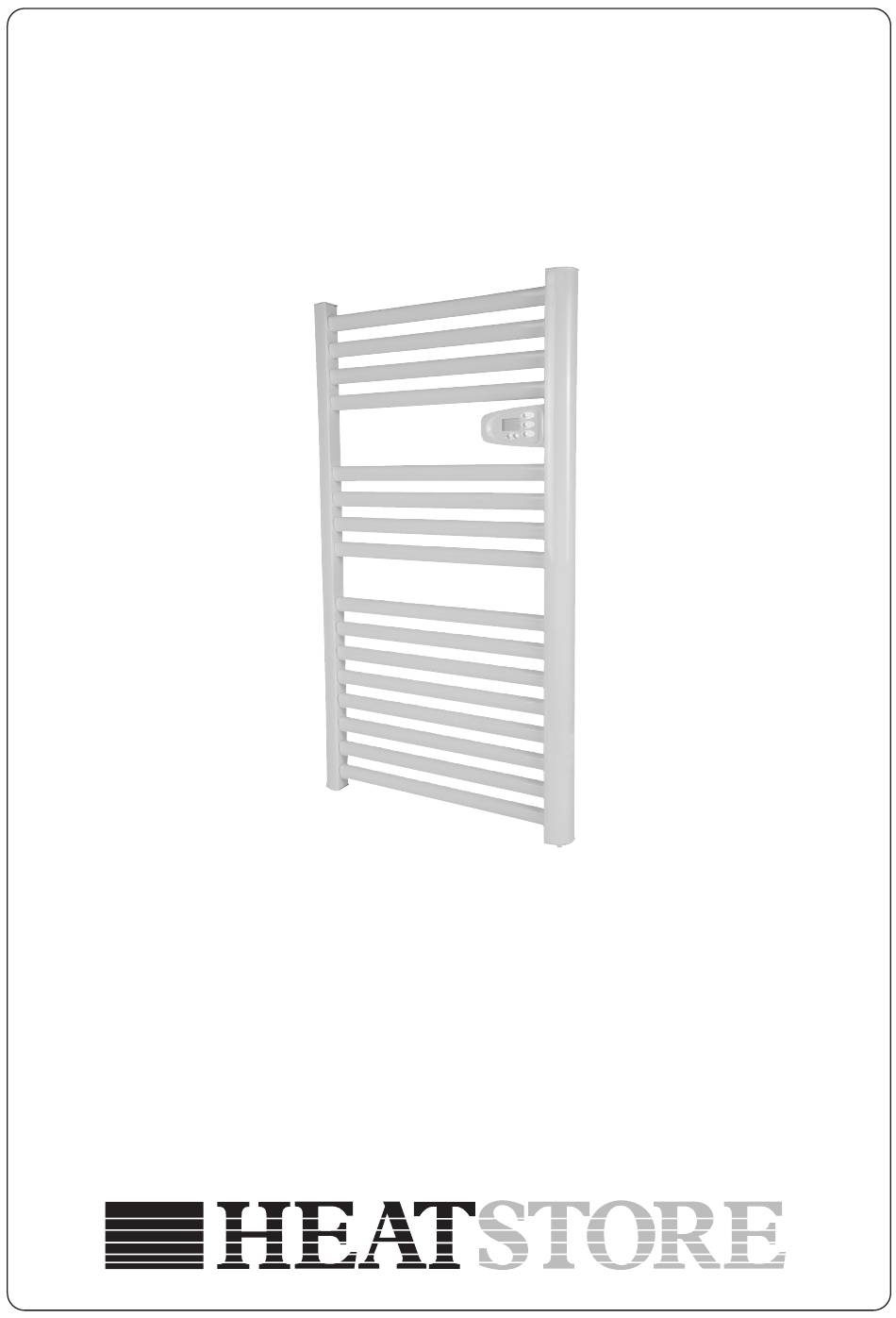

HSTRL500WTN Ladder Towel Rail
With Programmable Thermostat
Installation and Operating Instructions
IMPORTANT SAFEGUARDS
WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED
PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR
FUTURE REFERENCE
IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF THIS
PRODUCT, CONSULT A COMPETENT ELECTRICIAN.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSTRL500WTN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heatstore HSTRL500WTN

Summary of Contents for Heatstore HSTRL500WTN

  • Page 1 HSTRL500WTN Ladder Towel Rail With Programmable Thermostat Installation and Operating Instructions IMPORTANT SAFEGUARDS WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF THIS...
  • Page 2 Safety Warnings This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  • Page 3 DO NOT operate the appliance with a damaged cord. DO NOT allow the heater to come into contact with flammable material for example curtains or furniture. Disconnect this appliance before any repairs, cleaning or maintenance is carried out upon it. This heater should not be located directly below a power socket.

  • Page 4: Table Of Contents

    Contents Page 5 – Installation Page 6 – Start-up Page 6 – Selecting the Mode Page 7 – Boost Mode Page 7 – Setting the Temperature Page 7 – The Settings Menu Page 8 – Setting the Clock Page 8 – Program Mode Page 9 –...

  • Page 5: Installation

    Installation When installed in a bathroom, the Towel rail must be at least 600mm away from the bath or Bracket shower area. The Towel Rail should always be fixed to the wall at least 600mm above the floor level. Towel Rail Place the Towel Rail face down on a flat surface, and loosely assemble each fixing...

  • Page 6: Start-Up

    Operation 1. Start-up After you connect the power supply you will be asked to set the time: Press + / - to adjust the hour 00:00-23:00. Press OK-boost to confirm hour setting and move to minute setting 00:00-00:59. Press OK-boost to confirm minute setting and move to day of week setting 1-7. (1 Monday, 2 Tuesday, 3 Wednesday, 4 Thursday, 5 Friday, 6 Saturday, 7 Sunday) Press OK-boost to confirm.

  • Page 7: Boost Mode

    3. Boost mode For all other working modes except program mode, press and hold the OK-boost button for 3 seconds to activate or inactivate the boost mode. bSt1: The unit will heat to 29C for ONE hour before returning to the previous settings.

  • Page 8: Setting The Clock

    6. Setting the Clock Press M to enter the settings menu interface Use + / - to highlight the time setting (the time will flash when highlighted). Press OK-boost to set the time and day. Press + / - to adjust the hour 00:00-23:00. Press OK-boost to confirm hour setting and move to minute setting 00:00-00:59.

  • Page 9: Custom Programs

    Press M to enter the settings menu Pressing + / - to select the Program mode icon Press OK-boost once to select the mode (do not hold the button). Press + / - to choose from P1 to P7 for day 1 (Monday). Press OK-boost to confirm and choose for the next day.

  • Page 10: Window Detection

    9. Window Detection Mode Press M to enter the settings menu. Press + / - to highlight the window detection icon Press OK-boost to select. Using the + / - buttons choose “ON” or “OFF”. Press OK-boost to confirm. If “ON” is selected, the window detection function is activated and icon will show on the screen.

  • Page 11: Cleaning

    11. Cleaning The Towel Rail should be turned off prior to cleaning. To clean the Towel Rail, a clean, dry cloth should be used. Under no circumstances should any kind of abrasive spray or cleaner be used. Any damage to the surface finish may invalidate your warranty. If a cleaning agent is to be used, only a non-abrasive wax polish is suitable.
  • Page 12 ® SPECIFICATION: HSTRL500WTN Rating: 220-240V ~,50/60HZ, 500W Dimensions: 540W X 980H X 92D MM; 4.3KG Waste electrical products should not be disposed of with household waste. Please recycle where facilities YEAR exist. Check with your local authority or retailer for recycling advice.
