Summary of Contents for Heatstore AQUA PROFILE

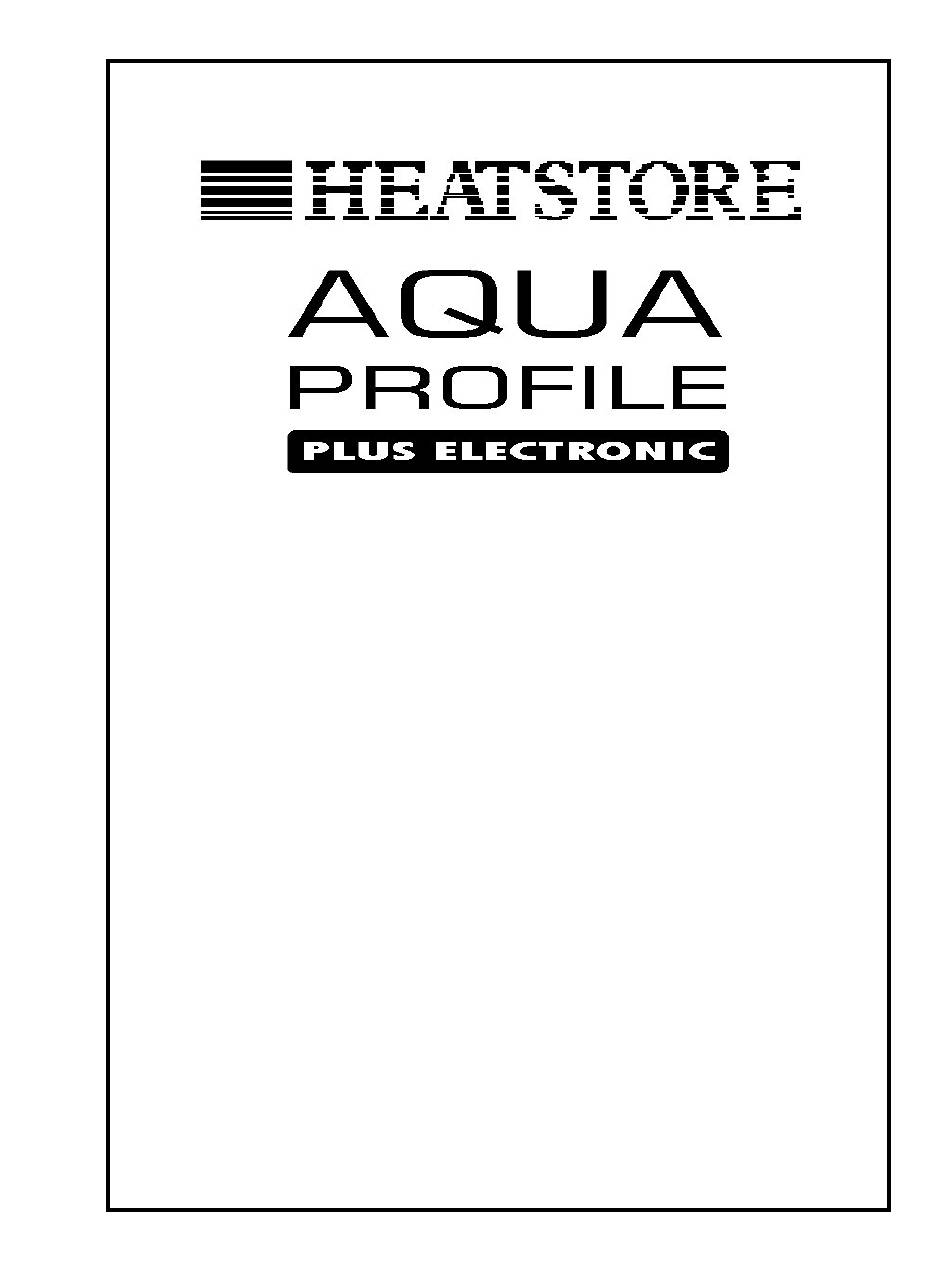

- Page 1 (Including both White and Chrome Variants) SHOWER HANDBOOK IMPORTANT This booklet should be left with the user after installation and demonstration...
- Page 2 Thank you for choosing a quality “Heatstore” product manufactured in England Contents Information for the user Page How to use your Shower ....2 How your Shower Works .
- Page 3 How your Shower Works Your shower is designed for convenience, economy and safety of use. 1. Water is heated instantaneously as it flows over the heating elements in the copper cylinder (diagram 2) 2. The required water temperature is achieved by adjusting the rate of water flow. Diagram 3 shows the principle involved in relating temperature rise to flow rate.
- Page 4 “C” is pressed. Possible PCB fault. If defective then replace. Power supply not reaching shower. Heatstore After Sales Service We offer a technical advisory service on the telephone to contractors and other customers with problems in the field. RING: “0117 923 5375”...
- Page 5 Installation Instructions ALL WIRING AND INSTALLATION MUST BE SUPERVISED BY A QUALIFIED ELECTRICIAN WARNING: DO NOT INSTALL THIS SHOWER IN A ROOM WHERE IT MAY BE SUBJECT TO FREEZING. We recommend that the installation is done in the following sequence. a.
- Page 6 Blockage in the water ways (particularly the handset and solenoid valve) will prevent the heater working properly. The shower is designed to have an open outlet and should only be used with “Heatstore” recommended fittings. Do not connect the handset until after the shower front cover and corner section are fitted.
- Page 7 A means for disconnection in all poles must be incorporated in the fixed wiring in accordance with the wiring rules. We recommend a ceiling switch mounted in a convenient position. Cut back cable as in diagram 9. Connect cable to terminal block making sure that all the retaining screws are VERY TIGHT and that no cable insulation is trapped under the screws.
- Page 8 Full details of terms and conditions are available on request from: - MANUFACTURED FOR HEATSTORE & ADDVENT VICTORIA ROAD, AVONMOUTH, BRISTOL, BS11 9DB Website: www.heatstore.co.uk (Leaflet No. 555-2110-31A)
