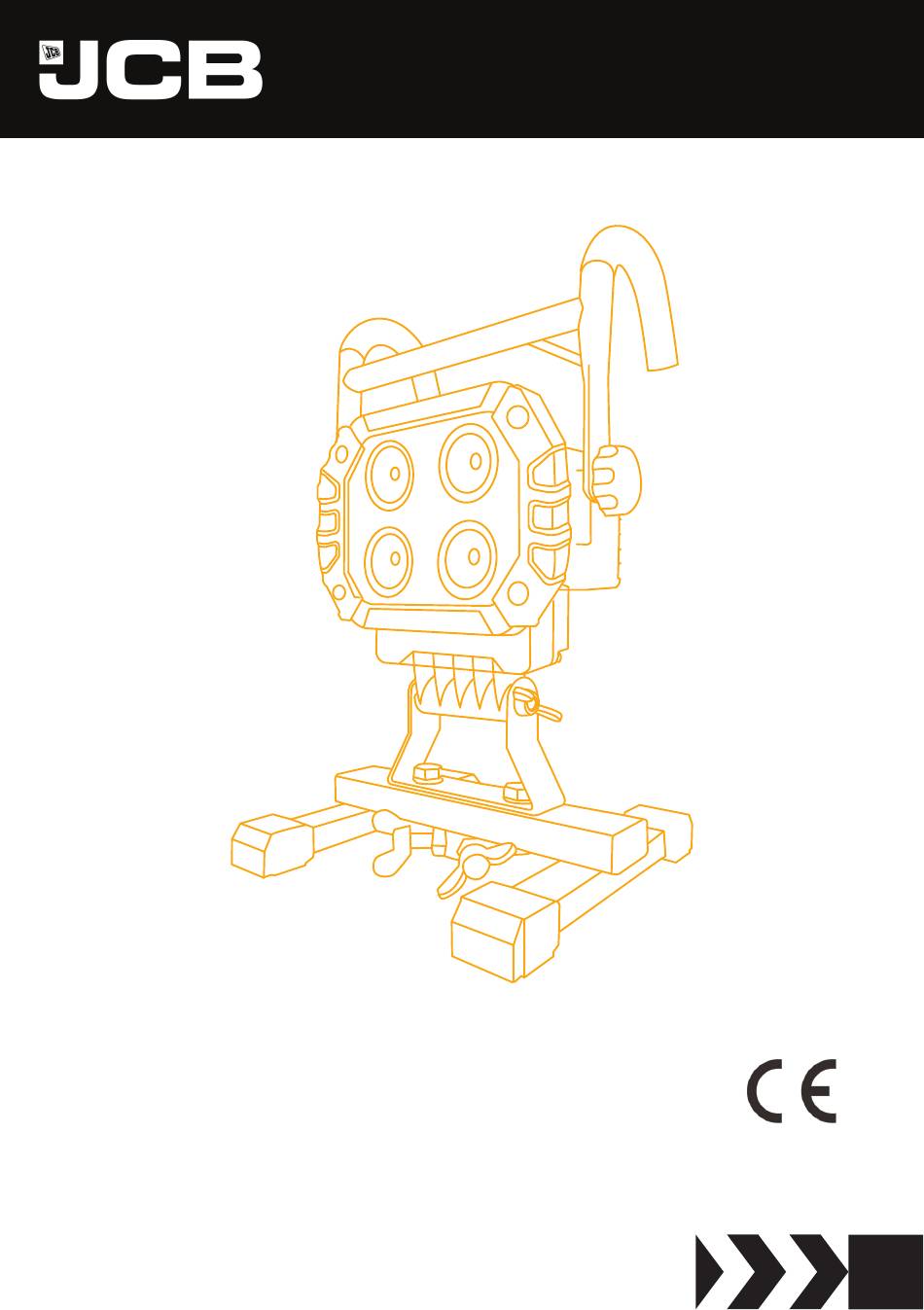

- Page 1 LED WORKLIGHTS INSTRUCTION MANUAL LED AC/DC FLOODLIGHT JCB-FLH40...
- Page 2 The Work Light has a hook design handle and is suitable for complex and hazardous environments. The product offers a powerful magnetic base for stability and flexibility when working and an adjustable tripod fixed wing bolt. It also offers multiple brightness options of 50% and 100%. JCB-FLH40 JCB-FLH40 Instruction Manual...
-
Page 3: Specification
SPECIFICATION JCB-FLH40 Power Output Lumen Output 5000lm AC / 4000lm DC Beam Angle 60º IP Rating IP65 Input Voltage 100-240V, 50Hz AC Input Voltage 85-277V Material Iron Stand, Aluminium Alloy & Rubber Coated Head, PC Lens, 4mm Tempered Glass 4 x 1616 COB Chip... - Page 4 Peak Value(cd) 3810.2 Efficiency(lm/w) 122.0 Model Position 45.0,3.0 UP(C0-C180) Nominal P(w) Up Flux Rate(%) UP(C180-C360) Rated Flux(lm) JCB-FLH40 Dw Flux Rate(%) Down(C180-C360) Illuminant QTY PLANAR INTENSITY DISTRIBUTION CURVE Planar Intensity Distribution Curve 180° 210° 150° 240° 120° 270° 90° 1,520 300°...
-
Page 5: Safety Notice
If the electrolyte in the cells comes into contact with the skin, wash thoroughly with soap and water If the electrolyte in the cells comes into contact with the eyes, rinse thoroughly with cold water and seek immediate medical attention JCB-FLH40 Instruction Manual... - Page 6 DO NOT try to take the charger plug apart DO NOT use the charger plug to charger or power any other electrical items DO NOT wet the charger or AC plug or use in wet or damp conditions (indoor use only) JCB-FLH40 Instruction Manual...
-
Page 7: Operation
If the product is not used for a long time , the battery will go into over discharge protection. To re-activate the battery, charge three or four times for 30 seconds until the indicator light comes on. Then fully charge the battery as normal. JCB-FLH40 Instruction Manual... - Page 8 Batteries and chargers Your statutory rights are not affected. We reserve the right to alter specifications without prior notice. WE WILL NOT BE LIABLE FOR ANY INJURIES OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT JCB-FLH40 Instruction Manual...
