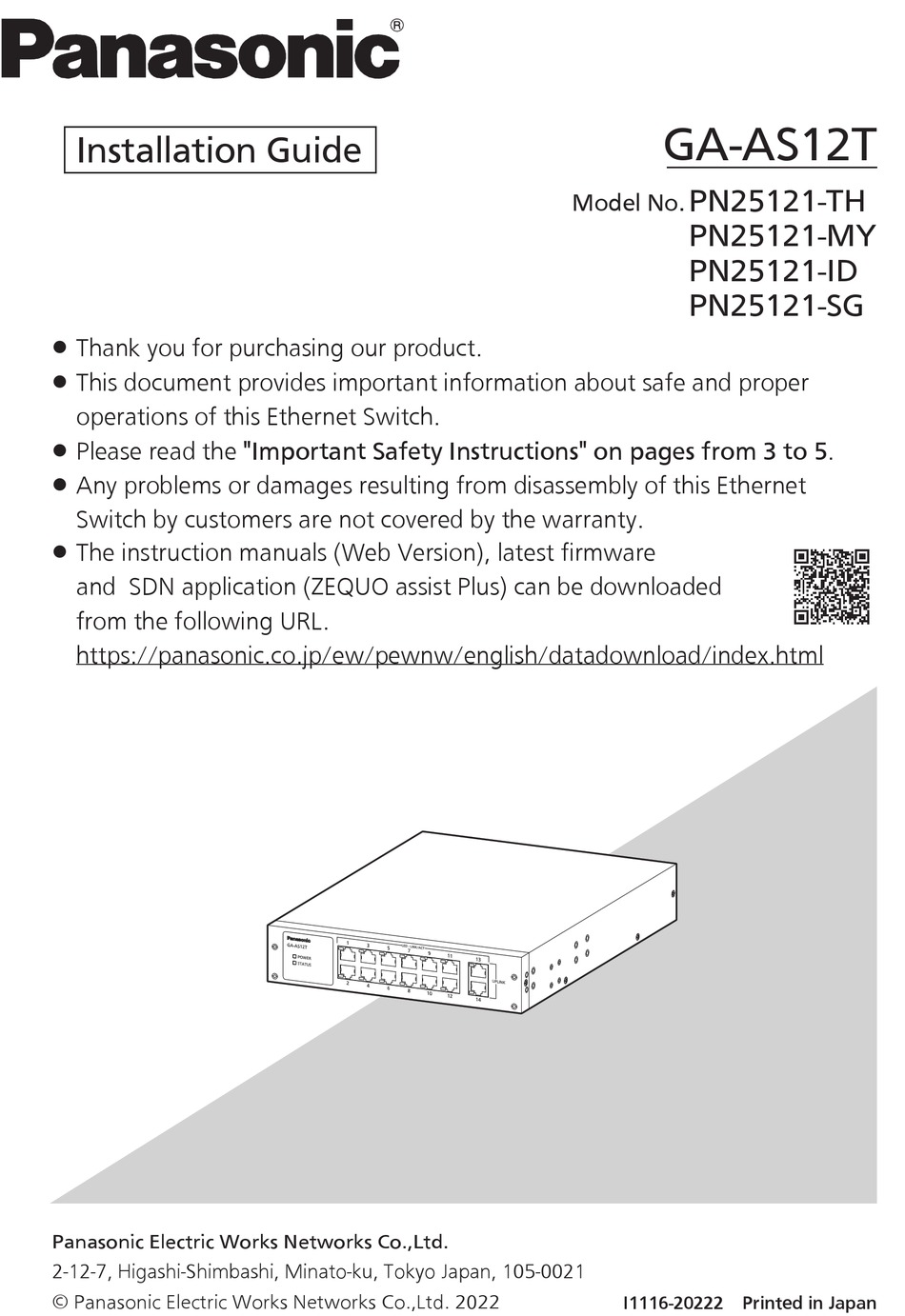

Installation Guide
Thank you for purchasing our product.
This document provides important information about safe and proper
operations of this Ethernet Switch.
Please read the "Important Safety Instructions" on pages from 3 to 5.
Any problems or damages resulting from disassembly of this Ethernet
Switch by customers are not covered by the warranty.
The instruction manuals (Web Version), latest firmware
and SDN application (ZEQUO assist Plus) can be downloaded
from the following URL.
https://panasonic.co.jp/ew/pewnw/english/datadownload/index.html
Panasonic Electric Works Networks Co.,Ltd.
2-12-7, Higashi-Shimbashi, Minato-ku, Tokyo Japan, 105-0021
©
Panasonic Electric Works Networks Co.,Ltd. 2022
GA-AS12T
PN25121-TH
Model No.
PN25121-MY
PN25121-ID
PN25121-SG
I1116-20222
Printed in Japan
Advertisement
Table of Contents
Related Manuals for Panasonic GA-AS12T
Summary of Contents for Panasonic GA-AS12T
- Page 1 The instruction manuals (Web Version), latest firmware and SDN application (ZEQUO assist Plus) can be downloaded from the following URL. https://panasonic.co.jp/ew/pewnw/english/datadownload/index.html Panasonic Electric Works Networks Co.,Ltd. 2-12-7, Higashi-Shimbashi, Minato-ku, Tokyo Japan, 105-0021 © Panasonic Electric Works Networks Co.,Ltd. 2022 I1116-20222 Printed in Japan...
-
Page 2: Table Of Contents
Contents Important Safety Instructions Basic Instructions for the Use of This Product 1 Product Outline 1.1 Features 1.2 Specifications 1.3 Accessories 1.4 Basic operation 2 Part Names and Functions 3 Installation and Configuration 3.1 Grounding Cable Connection 3.2 Mounting to rack 3.3 Mounting on a wall 3.4 Configuration of IP address (Basic) Troubleshooting... -
Page 3: Important Safety Instructions
Important Safety Instructions This chapter contains important safety instructions for preventing bodily injury and/or property damage. Please read carefully, and follow them at all times. Severity of bodily injury and/or property damage, which could result from incorrect use of the Ethernet Switch, are explained below. WARNING This symbol indicates a potential hazard that could result in serious injury or death. - Page 4 WARNING Do not install this Ethernet Switch at the location with continuous vibration or strong shock, or at the unstable location. Deviation could lead to falling, injury and/or equipment failure. Do not put this Ethernet Switch into fire. Deviation could lead to explosion and/or fire.
- Page 5 CAUTION When using this Ethernet Switch to design systems, use it after applying appropriate measures such as setting up redundant configurations. Communication failures might be generated due to causes such as malfunctions or misoperations while the Ethernet Switch is being used. ...
-
Page 6: Basic Instructions For The Use Of This Product
When using two Ethernet Switches, do not stack them. When you place them side by side, allow for a space of 20 mm or more between them. 1. Please note that Panasonic shall not bear any liability whatsoever for any damages (this shall include, but is not limited to, lost earnings, lost opportunities, etc.) -
Page 7: Product Outline
Product Outline GA-AS12T has 14 ports which are 10BASE-T/100BASE-TX/1000BASE-T compatible ports. 1.1 Features Ports 1 to 14 (twisted pair ports) are 10BASE-T/100BASE-TX/1000BASE-T corresponding to auto-negotiation. All of the twisted pair ports are equipped with straight/cross cable automatic detection functions. Straight cables can be used to make interconnections without distinctions between the terminals and network devices having to be made. -
Page 8: Specifications
Product Outline 1.2 Specifications Interface Twisted pair port 1–14: RJ45 connector Transmitting and receiving network system IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE802.3ab 1000BASE-T Energy Efficient Ethernet function IEEE 802.3az (LP1) Switching mode Store and Forward method: Forwarding rate 10BASE-T: Max. -
Page 9: Accessories
When the terminal is not operating normally, for example when power is not supplied to the terminal, LED is not lighted. * For the configuration and management methods, please see the PDF version of the Operating Instructions on Panasonic’s website. -
Page 10: Part Names And Functions
Part Names and Functions 10BASE-T/100BASE-TX/1000BASE-T port Front panel MAC Address label Power cord hook block Back panel Power port Ground terminal Serial number label Power port Connect the supplied power cord to this port and connect the other end into an electric outlet. - Page 11 POWER (Power) LED STATUS (status) LED POWER (Power) LED Green Light : Power is ON. : Power is OFF. STATUS (status) LED Green Light : System is normally operating Green Blink : After powering on, and the system startup is completed, blinks for five minutes Orange Light : System is starting up...
-
Page 12: Installation And Configuration
Installation and Configuration 3.1 Grounding Cable Connection The chassis of the equipment must be grounded properly so that the lightning can flow to the ground, which improves the capability of the chassis for resisting the electromagnetic interference. 1. Ensure that the grounding cable is connected correctly so that the equipment is protected against lightning and interference. -
Page 13: Mounting To Rack
3.2 Mounting to rack Use the two 19-inch rack mount brackets and eight screws (for fixing the rack mount brackets to the Ethernet Switch) supplied with the mount brackets PN71051 (optional) to fix the mount brackets to the four holes on each side of the Ethernet Switch. Then securely install the Ethernet Switch onto the rack using the four screws (for a 19-inch rack mount) supplied with the mount brackets PN71051 (optional) or the screws supplied with the rack. -
Page 14: Mounting On A Wall
Installation and Configuration 3.3 Mounting on a wall Use the two wall mount brackets and eight screws (for fixing the wall mount brackets to the Ethernet Switch) supplied with the mount brackets PN71053 (optional) to fix the mount brackets to the four holes on each side of the Ethernet Switch. Then securely install the Ethernet Switch onto the wall using the four screws which have been prepared by the customer. -
Page 15: Configuration Of Ip Address (Basic)
3.4 Configuration of IP address (Basic) (1) Directly connect the computer which has ZEQUO assist Plus installed on it from the CD-ROM and this device via twisted pair cables, or connect the computer and this device to the TCP/IP network in the broadcast domain which the L3 switch routers do not go through, and start up ZEQUO assist Plus. - Page 16 Installation and Configuration Screen 2 Screen 3 Screen 4 * For detailed configuration and management methods, and the settings from the ZEQUO assist Plus and the Web screens, please see the PDF version of the Operating Instructions on Panasonic’s website.
-
Page 17: Troubleshooting
Troubleshooting If you find any problem, please take the following steps to check. LED The POWER (Power) LED is not lit. Check if the power cord is disconnected. Please confirm that the power cord is securely connected to the power port. ...
