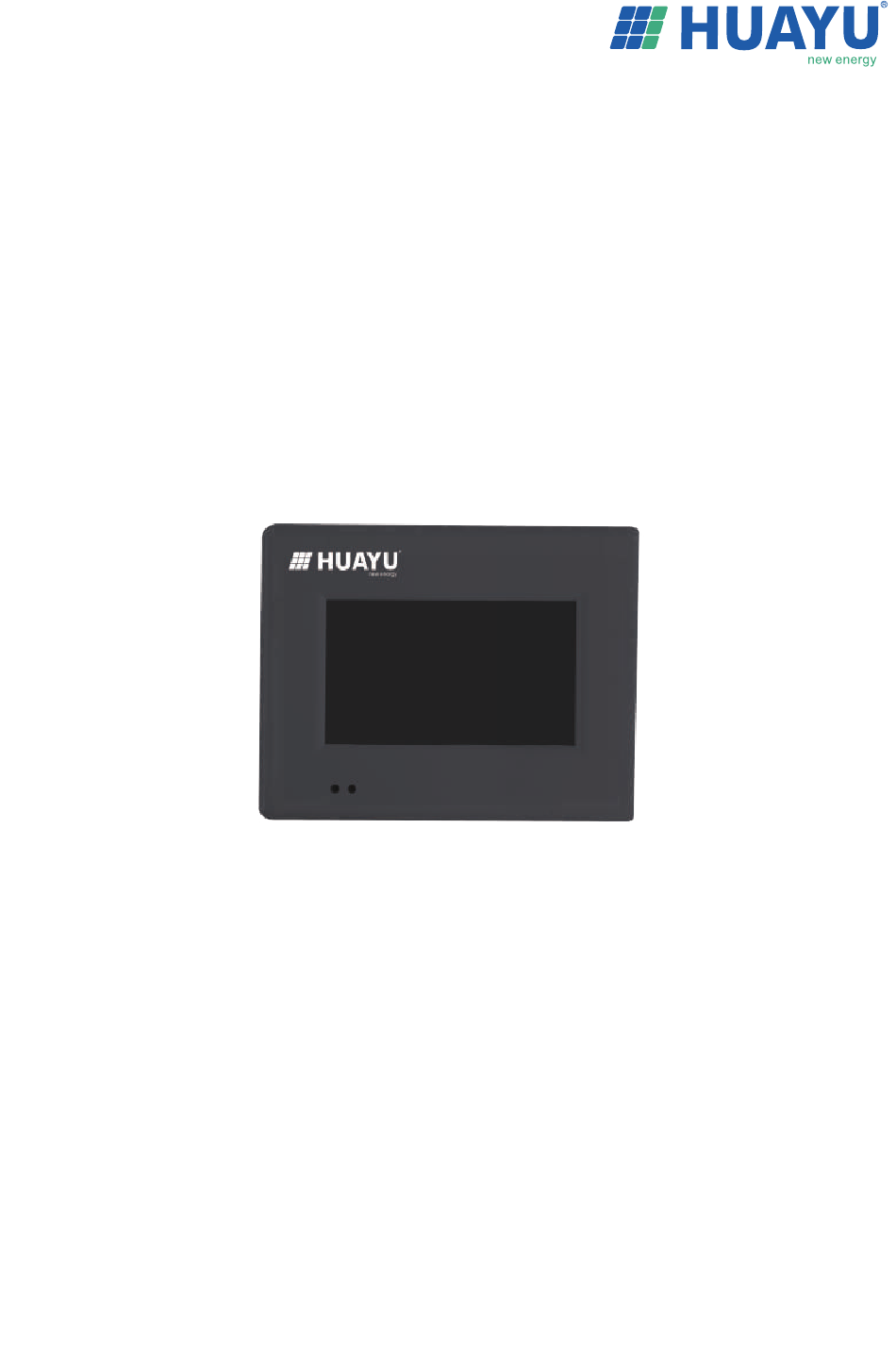

- Page 1 Installation and Operation Manual HY-MDL/HY-MDL-3 For our home energy independence. Huayu(Ningbo)New Energy Technologies Co., Ltd.
-
Page 2: Table Of Contents
Contents Company Profile 1. Introduction 1.1 Prefix 1.2 How to Use This Manual 1.3 Safety Instruction 2. FCC Compliance 3. Installation 4. User Interface 4.1 Main Interface 4.2 Interface Overview 4.3 Energy Functions 4.4 Setting 4.5 Backup/Clear Data 4.6 Status Bar 5. -
Page 3: Company Profile
21st century to realize a de-monopolistic & de-centralized sustainable power supply system across the globe. Huayu New Energy was born to be the leader of “Safe & Smart” distributed energy solution and play an irreplaceable role for the most exciting renewable energy revolution in human history. -
Page 4: Fcc Compliance
Check the HY-MDL/HY-MDL-3 shipping box for the following items: HY-MDL/HY-MDL-3 Communications Monitoring Data Logger AC Power Cord HY-MDL/HY-MDL-3 Installation and Operation Manual For HY-MDL, there are three types of AC power code for three major regions of the world. Region Accessory Part Number North America... -
Page 5: User Interface
Ethernet cable is used to connect the HY-MDL/HY-MDL-3 to an Ethernet router or hub. There is a web server built inside HY-MDL/HY-MDL-3, which can be visited by type in the HY-MDL/HY-MDL-3 IP address on a web browser. If the HY-MDL/HY-MDL-3 is connected to the internet directly or through a router, users may also visit the HY-MDL/HY-MDL-3 through a website. -
Page 6: Energy Functions
Pressing this button will display the power-time curve screen (see Figure 5). The x-axis represents the time (4:00-20:00), and the y-axis represents Huayu micro inverters output power (kW). The total output energy (kWh) is displayed on the upper left corner. The real-time output power (kW) and today's total energy generated (kWh) are displayed on the upper right corner. - Page 7 Figure 9). This display is also similar to the Last 7 Days' Energy display. The x-axis represents the years and the current year locates in the last. The y-axis represents the amount of energy generated (kWh) in the year. Figure 9 Yearly Energy Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
-
Page 8: Setting
4.4.2 Date & Time Setting The Date & Time settings tab (Figure 11) is used to set the date, time, and time zone. HY-MDL/HY-MDL-3 support all the five time zone of North America. For other parts of the world, the time zone “World” may be chosen. -
Page 9: Backup/Clear Data
Error code Error Bit-0 DC over voltage Bit-1 DC under voltage Bit-2 hardware error Bit-3 Inverter over voltage Bit-4 Frequency over Bit-5 Frequency under Bit-6 AC voltage RMS over Bit-7 AC voltage RMS under Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved. -
Page 10: Web Interface
If there is internet service, however, remote monitoring can be accessed through Huayu Portal from anywhere at anytime. To access the web portal inside HY-MDL/HY-MDL-3, user only needs to type in the IP address of HY-MDL/HY- MDL-3 on a web browser (please see Section 4.4.1 for configuring the IP address of HY-MDL/HY-MDL-3). -
Page 11: Specification
CSA C22.2 2nd Edition Rev Dec 19, 2011 FCC Part 15 Class B AS/NZS 60950.1:2011 Inc A1 AS/NZS CISPR 22: 2009+A1:2010 Compliance EN 60950-1:2006+A11:2009+A1:2010+A12:2011 EN 55022:2010 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 EN 55024:2010 EMC Directive 2004/108/EC Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved. - Page 12 Huayu Portal - Mobile App Add: No.456 Xingning Road, Ningbo 315100, P.R.China Tel: +86-574-8925 8801 E-mail: info@huayu-energy.com Website: www.huayu-energy.com...
