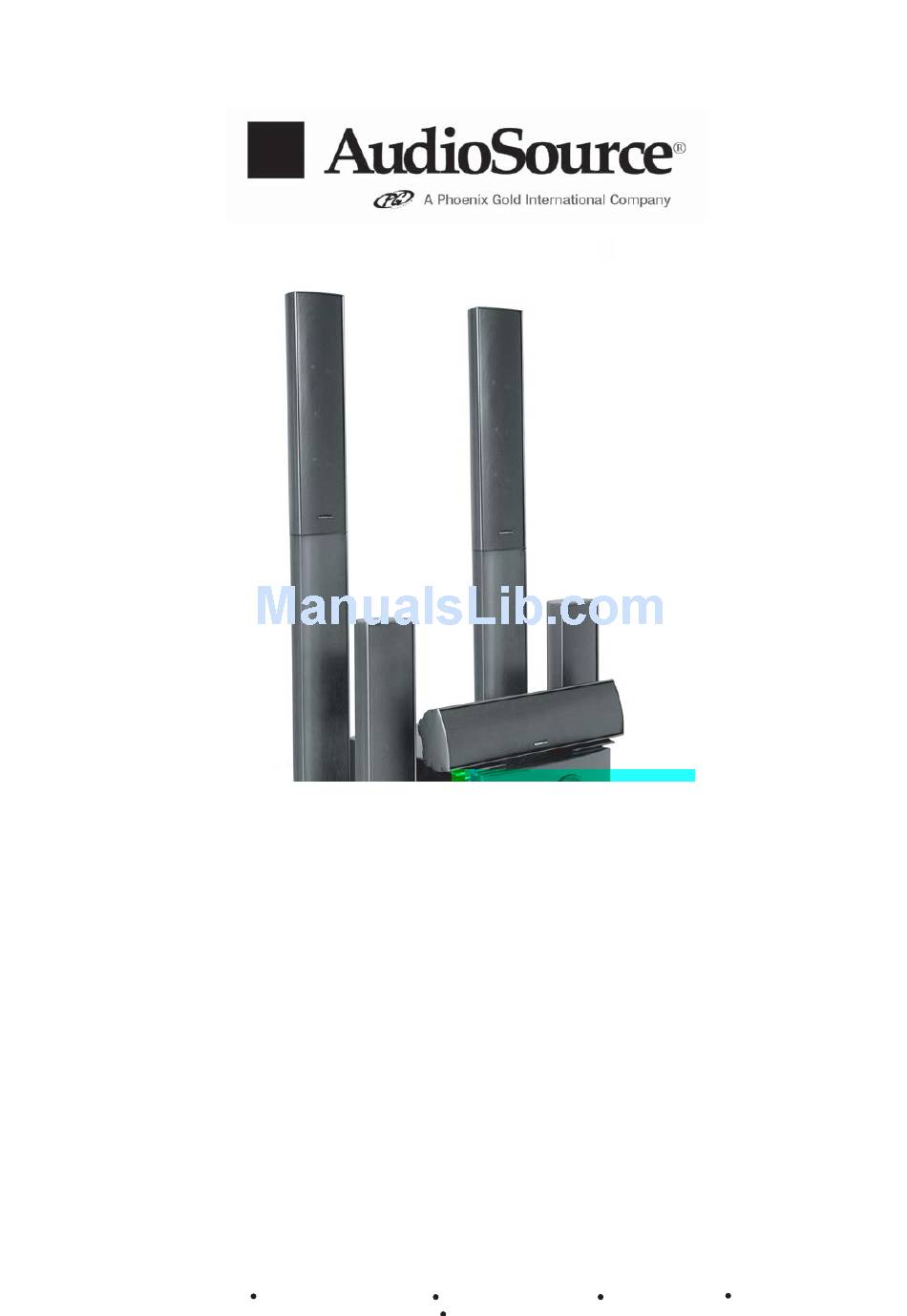

Page 1: User Manual
AST-220S AST-220C USER MANUAL Part # 8100.0310 Phoenix Gold International, Inc. 9300 North Decatur Street Portland, Oregon 97203 Tel: 503.286.9300 Fax: 503.978.3391 Website: www.audiosource.net Email: support@phoenixgold.com... - Page 2 2x4 or 2x6 wall stud. There is a slot at the bottom and in the middle of the bracket to allow the speaker cable to be brought through both the wall and the bracket to connect to the terminals on the rear of the AST 220S and the AST 220C loudspeakers.
- Page 3 AST 220S speaker. Place the open end of the speaker into the base. Replace the four screws into the AST 220S. Start all for screws before fully tightening.
- Page 4 AST 220S / Stand combination. Connecting the Speaker cable to the AST 220 speakers Strip away 1/2 inch of the insulation on the Speaker wire and tightly twist the strands of each conductor together. If a soldering iron is available carefuly tin the two conduc- tors of each speaker cable.
