AudioSource AS515 Brochure

AudioSource AS515 Brochure

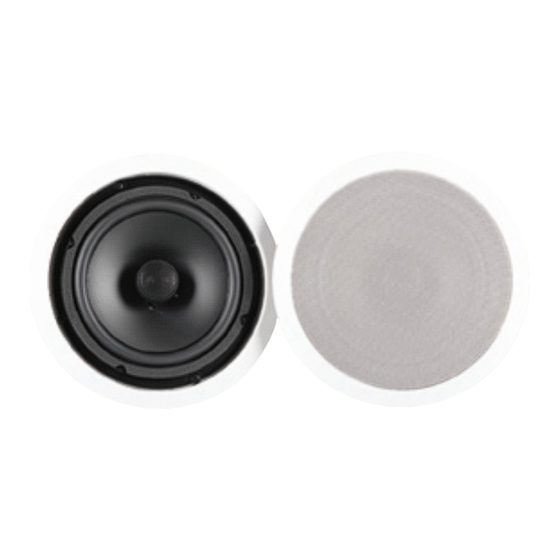

In-ceiling and in-wall speakers

Advertisement

Quick Links

f e atu r es
8" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
s p eC IfI C atIo ns
power Handling: 25 - 100 Watts
Impedance: 8 Ω
frequency response: 40Hz - 20kHz +/-3dB
sensitivity 2.83V/1m: 88dB
Cut-out diameter: 9 5/8" (236 mm)
Mounting depth: 3 5/8" (92mm)
f e at u res
6.5" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
s p e C IfI C atIo ns
power Handling: 25 - 100 Watts
Impedance: 8 Ω
frequency response: 60Hz - 20kHz +/-3dB
sensitivity 2.83V/1m: 88dB
Cut-out diameter: 7 3/4" (197mm)
Mounting depth: 2 7/8" (73mm)
f eat u res
5.25" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
s p eC I f IC atIon s
power Handling: 25 - 100 Watts
Impedance: 8 Ω
frequency response: 70Hz - 22kHz +/-3dB
sensitivity 2.83V/1m: 87dB
Cut-out diameter: 6 5/8" (203mm)
Mounting depth: 2 3/4" (70mm)
12
I n -Ce I lInG 2 - way
I n -Ce I lInG 2 - way
I n -C eI lI nG 2 -way
a s8C
Quantity: pair
as6C
Quantity: pair
as5C
Quantity: pair

Advertisement

loading
Need help?

Need help?

Do you have a question about the AS515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AudioSource AS515

  • Page 1 I n -Ce I lInG 2 - way f e atu r es 8" Polypropylene Woofer 25mm Silk Dome Swivel Tweeter Butyl Rubber Surround Dog-Leg Mounting System Spray Paintable Frame & Grill s p eC IfI C atIo ns power Handling: 25 - 100 Watts Impedance: 8 Ω...
  • Page 2 H oe n Ix Go l d aC C es s orIes Phoenix Gold has a complete line of speaker selectors, wall plate controls and cabling to complement the AudioSource product line. Ask your sales representative for details. Phoenix Gold Speaker Selector...
  • Page 3 I n - wall 3- way f eat u res 8" Polypropylene Woofer 50mm Pole Mounted Midrange 25mm Silk Dome Swivel Tweeter Butyl Rubber Surround Dog-Leg Mounting System Spray Paintable Frame & Grill s p e C If I CatIo ns power Handling: 25 - 100 Watts Impedance: 8 Ω...
  • Page 4: Specifications

    I n - wa l l 2- way lCr f e at u r es Dual 5.25" Polypropylene Woofers 25mm Silk Dome Swivel Tweeter Mid-Tweeter-Mid Configuration (MTM) Butyl Rubber Surround Dog-Leg Mounting System Integrated Rear Dust Shield Spray Paintable Frame & Grill Left, Center, Right Application op t IMa l C eIl I nG spea ker plaC e Ment Place your ceiling speaker along the longest...
  • Page 5 I n d o o r/ o utd oo r 2 - way f e at u res 6.5" Polypropylene Woofer 1" Silk Dome Tweeter Weather Resistant Speaker System Butyl Rubber Surround CAD/CAE Designed, Phase Compensated Crossover Mounting Brackets and Hardware Included Rustproof Alumninum Grill s p e C IfI C atIo ns power Handling: 25 - 100 Watts...
  • Page 6 I n d o or / o u t d o o r 2- way f e at u r es 5.25" Polypropylene Woofer 3/4" Polycarbonate Tweeter Weather Resistant Speaker System Mounting Brackets and Hardware Included White Powder Coated Microperf Grill s p eC IfI C atI o n s power Handling: 25 - 100 Watts Impedance: 8 Ω...

This manual is also suitable for:

As5sAs5cAs6cAs6sAs7cAs8c ... Show all
