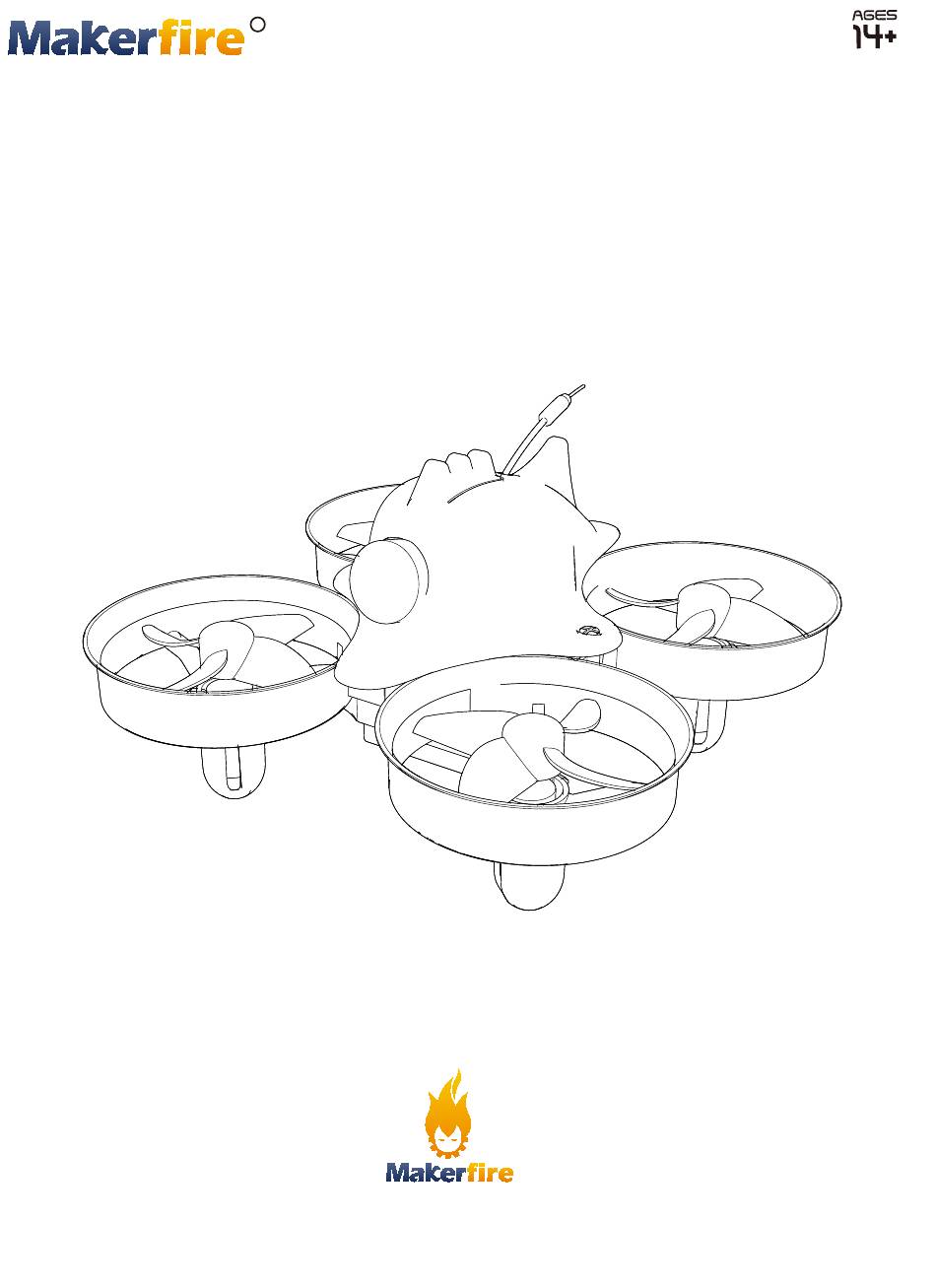

- Page 1 Armor Blue Shark INSTRUCTIONS FOR USE www.makerfire.com...
-
Page 2: Disclaimer & Warning
Any personal injury, property damage, legal disputes and all other adverse events caused by the violation of the safety instructions or due to any other factors, will not be MAKERFIRE's responsibility. • The drone is designed for 14+ •... -
Page 3: Safe Flight Environment
2.Safe flight Environment Fly in Open Areas Maintain Line Fly Below of Sight 98.4 feet ( 30 m) 1.Make sure the surrounding area is free of all people,pets or other obstacles before you start to fly your drone. 2.Your drone is designed for indoor or outdoor use.However,it is not recommended to fly the drone inside if there is limited space, or outside if there is any wind. -
Page 4: Package List
Package list Propeller Ax2,Propeller Bx2 USB charging cable x 1 Drone Controller Screwer Battery INSTRUCTION MANUAL MINI FPV GOGGLES Specification Drone Transmitter Wheelbase:66mm Operating Frequency: 2.4GHz Dimensions: 83.5x83.5x45.6mm Max transmission distance: 30m Weight: 23g(without battery) Battery: 1.5V AAA Motor:6015 1S brushed motor Operating Temperature: 0 to 40 C Battery: Li-po,3.7v 250mAh Max Flight Time: 5 mins... -
Page 5: Drone's Details
Drone’s details Antenna Propeller A Propeller B Shell (Clockwise) (Counter Clockwise) FPV system Battery HEAD Propeller B (Counter Clockwise) Propeller A (Clockwise) Propeller guardrail 6015 1s brushed motor It is crucial that all the propellers are installed in the correct position (Pay attention to the letter A or B printed underneath each propeller.) Controller functions Speed-select button... -
Page 6: Charging The Drone Battery
Charging the drone battery Plug the USB plug into the computer’s USB port (or the charger with a DC5V output USB port).When connected,the indicator of the USB charging cable will on.Then connect the battery to the USB charging cable. The indicator light off means it is in charging; and the indicator light on means it is fully charged.Charge takes 30-40 minutes.For safety, it's better to keep the charger in sight when charging. -
Page 7: Flying Your Drone
3. Push left throttle up once & controller will beep once 4. Pull left throttle down once & controller will beep again. Pairing is complete once the drone lights & controller lights stop flashing Flying your drone 1. Taking Off/ landing: Take Off/ Taking Off Landing Method 2... - Page 8 2. Altitude & rotate: Use “throttle left stick” to control the altitude & rotation during flight. 3. Forward / backward / left / right: Use “throttle right stick” to control forward, backward,left & right movement during flight. 4.Trimming: 1- Forward trim 2- Backward trim If the drone sways in an 3- Left trim...
- Page 9 1.Speed modes: Select between 3 speed modes: 40% speed (controller makes 1 beep);60% speed (controller makes 2 beeps); 100% speed (controller makes 3 beeps) 2.360 Flips: Perform 360 flips by pressing the “flip” button and immediately push the right stick to the direction that you want the drone flip.
- Page 10 Trouble flying Problem Possible cause Solution The indicator lights of the drone are 1.Transmitter is not synced 1.Refer to the preparation for flashing and does not respond to the to the drone. FLIGHT and pair again. transmitter. 2.Insufficient battery power. 2.Recharge the battery.
