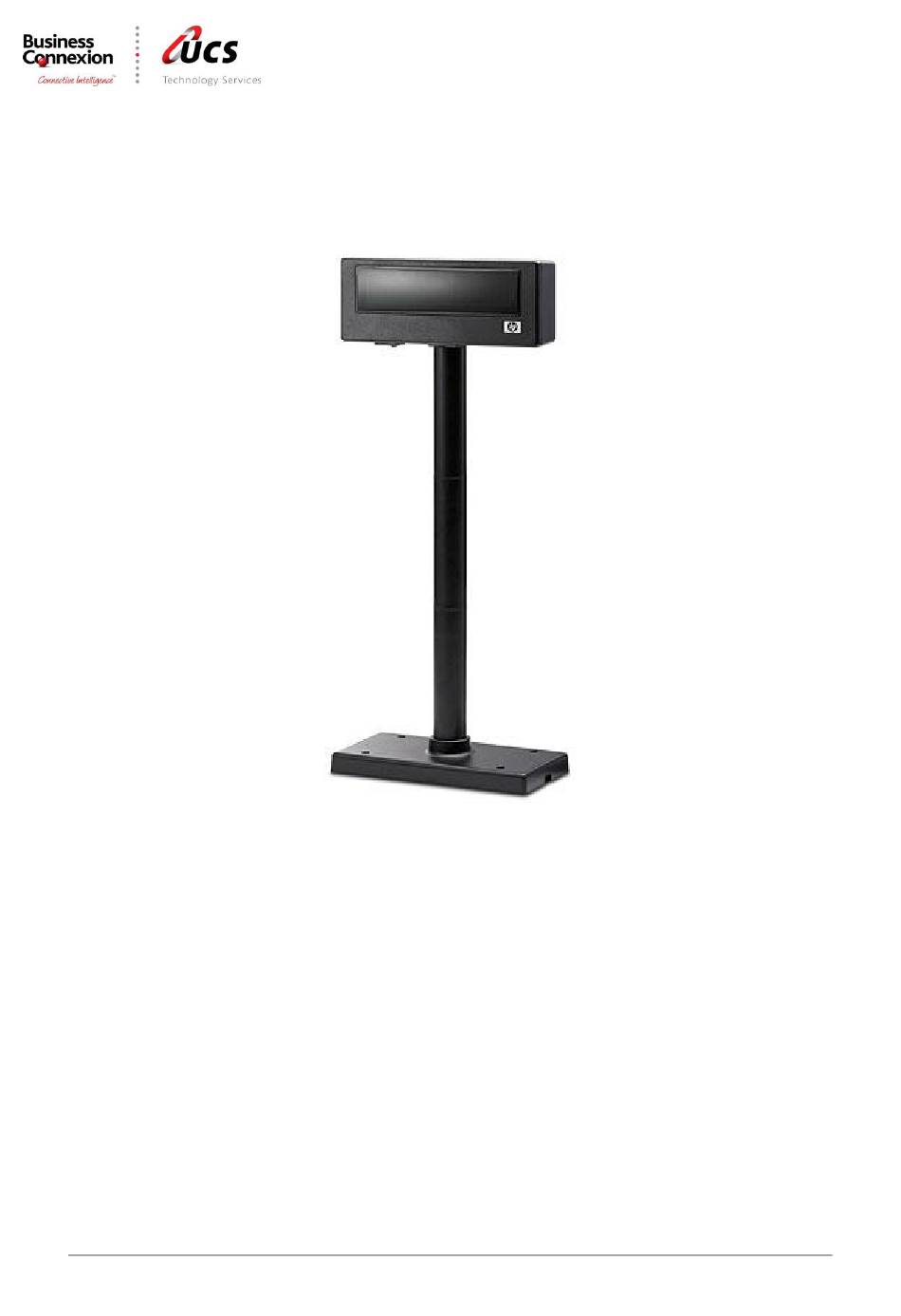

- Page 1 HP LD 220 Pole Display Installation Guide HP LD220 Installation Guide v1.1 Release Date: 12/04/2016 Confidential and proprietary information of UCS Technology Services (Pty) Ltd. Copying or dissemination of this document is prohibited Compiled by: Wian Maree...
-
Page 2: Table Of Contents
Retail Fuel Stores, which will be phased out on a brake and repair basis. What’s in the Box The installation of the HP LD220 USB customer display will not require any specific tools. It does not make use of a separate power supply and is powered through a USB connection. -
Page 3: First Time Installation
HP LD 220 Pole Display Installation Guide First Time Installation 1. After assembling the unit you may connect the USB cable to any open USB port on the back of the PC, the front USB may not be used. 2. Once connected, Windows will automatically detect the USB device and install a generic USB to Serial COM Port driver and will also assign a COM port number. - Page 4 HP LD 220 Pole Display Installation Guide 4. You may now proceed to install the drivers for the device and can be obtained from the provided CD or from the Winbranch Utilities download site at http://196.214.70.106/downloads/ 5. Install the driver by running the sp69523.exe file in the Windows Device Manager Only Drivers folder and complete the setup.
- Page 5 Installation Guide Image 1d 10. After restarting the pole display you may test the device by running the HP Pole Display Test utility found in the HP Pole Test Utility folder 11. The Display Point Test button will initiate a sequence of flashes on the VFD display 12.
-
Page 6: Configuring Winbranch/Hipos
HP LD 220 Pole Display Installation Guide Configuring Winbranch/Hipos 1. From the Back-office PC, open and edit the P3SETUP.DBF file, located in the C:\ROOT\B300\1 directory, with the DCLIP or DBASE editor utility. 2. In the CUST_PORT column, scroll to the POS line for which you wish to edit and change the value to com5. -
Page 7: Version Control
HP LD 220 Pole Display Installation Guide Image 2b 9. After editing the batch file you may save it and restart Hipos. 10. You may need to restart the Pole Display if the displayed text is not in line. 11. The Pole Display installation is now completed.
