SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

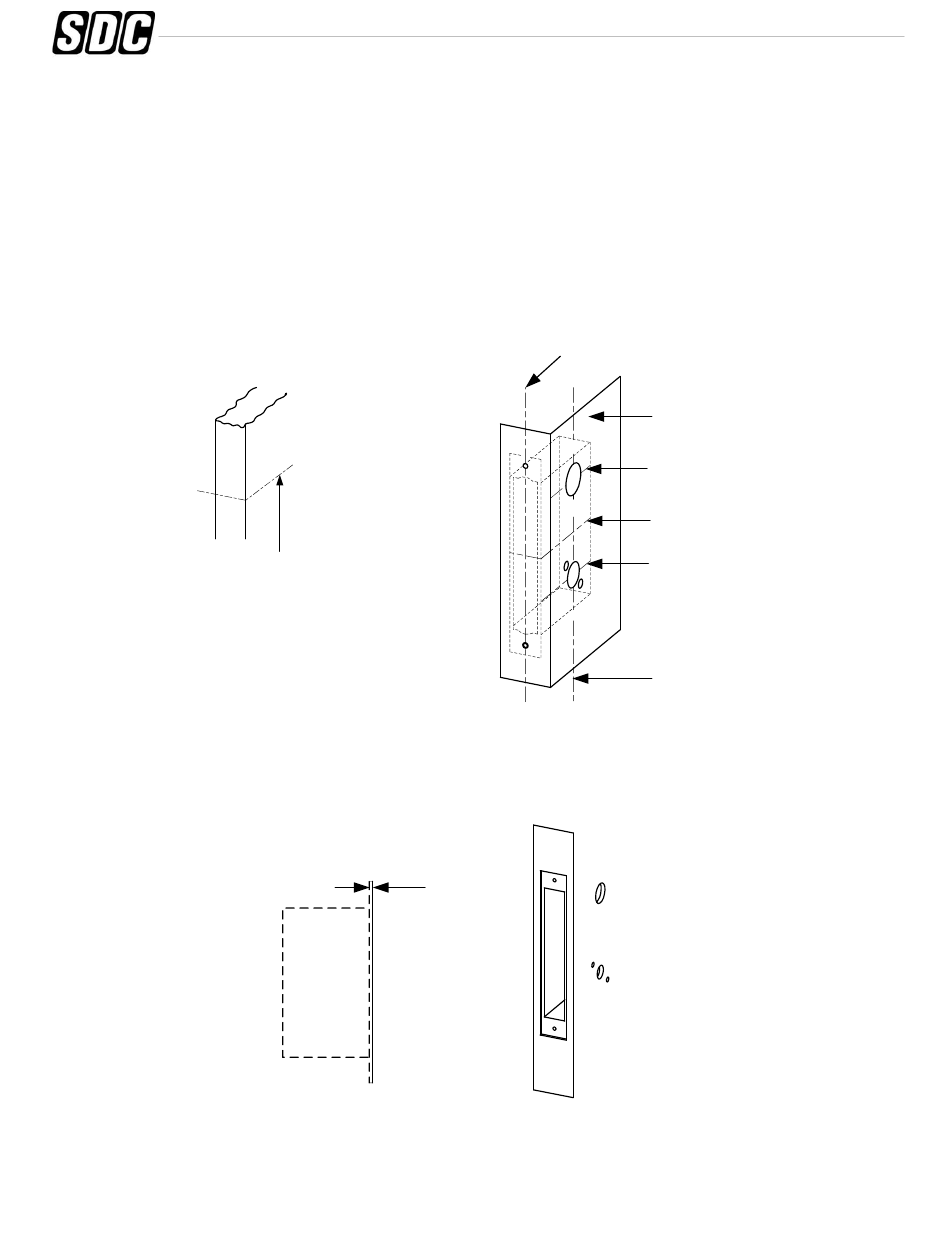

A. Door Preparation:
1. Measure desired height from finished floor, mark a horizontal line on door and door edge.
2. Align template on edge of door with applicable horizontal at height line. Check the chart for drilling trim
holes on template and mark only holes for lock function being installed.
Height
line
3. Mortise door edge according to measurements on installation template and drill proper holes for trim.
4. Recess for face plate, the dimension is:
L 8-1/32" x W 1-5/16" x D 7/32".
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-ZY7500
INSTALLATION INSTRUCTIONS
ZY7500 SERIES
SOLENOID FRAME ACTUATOR
CONTROLLED MORTISE LOCKSET
C L of lever
7/32"
of door edge
C
L
Note:
Rose door prep shown as example.
Escutcheon door prep would differ.
REV B
05-22
Page 1
Installation
template
of cylinder
C L
of lockcase
C L
of lever rose shown
C L
Vertical centerline
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SDC ZY7500 Series
Summary of Contents for SDC ZY7500 Series
- Page 1 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 INSTALLATION INSTRUCTIONS ZY7500 SERIES SOLENOID FRAME ACTUATOR CONTROLLED MORTISE LOCKSET A. Door Preparation: 1. Measure desired height from finished floor, mark a horizontal line on door and door edge.
- Page 2 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 B. Install Lockcase Make sure the lock hand matches the door hand, use the following diagram to determine the hand of door. INSIDE OF DOOR Right Hand Left Hand...
- Page 3 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 B. Install Lockcase (Continued) 3. Connect wires as shown on the lock cover diagram (Or refer to page 6 of instructions.) 4.
- Page 4 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 E. Install for 07 lever trim Place the spring, collar and then reversible spring cage onto the outside lever assembly with arrows pointing in direction of lever rotation.
- Page 5 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 FRAME ACTUATOR INSTALLATION GUIDE For the frame portion (electric actuator) read these instructions carefully. To insure a neat and easy installation of the electric actuator into the frame back box when making long wire runs, the heavier gauge wire can be terminated in a junction box above the door.
- Page 6 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 Standard wiring Voltage and current rating stamped on solenoid Ground screw is provided on 115 VAC locks Common BLU/BLK BLU/BLK...
- Page 7 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 FUNCTIONS 7530 7560 Mortise is locked while energized Mortise is locked and is unlocked and is unlocked by a remote when energized by a remote switch or by means of a key from...
